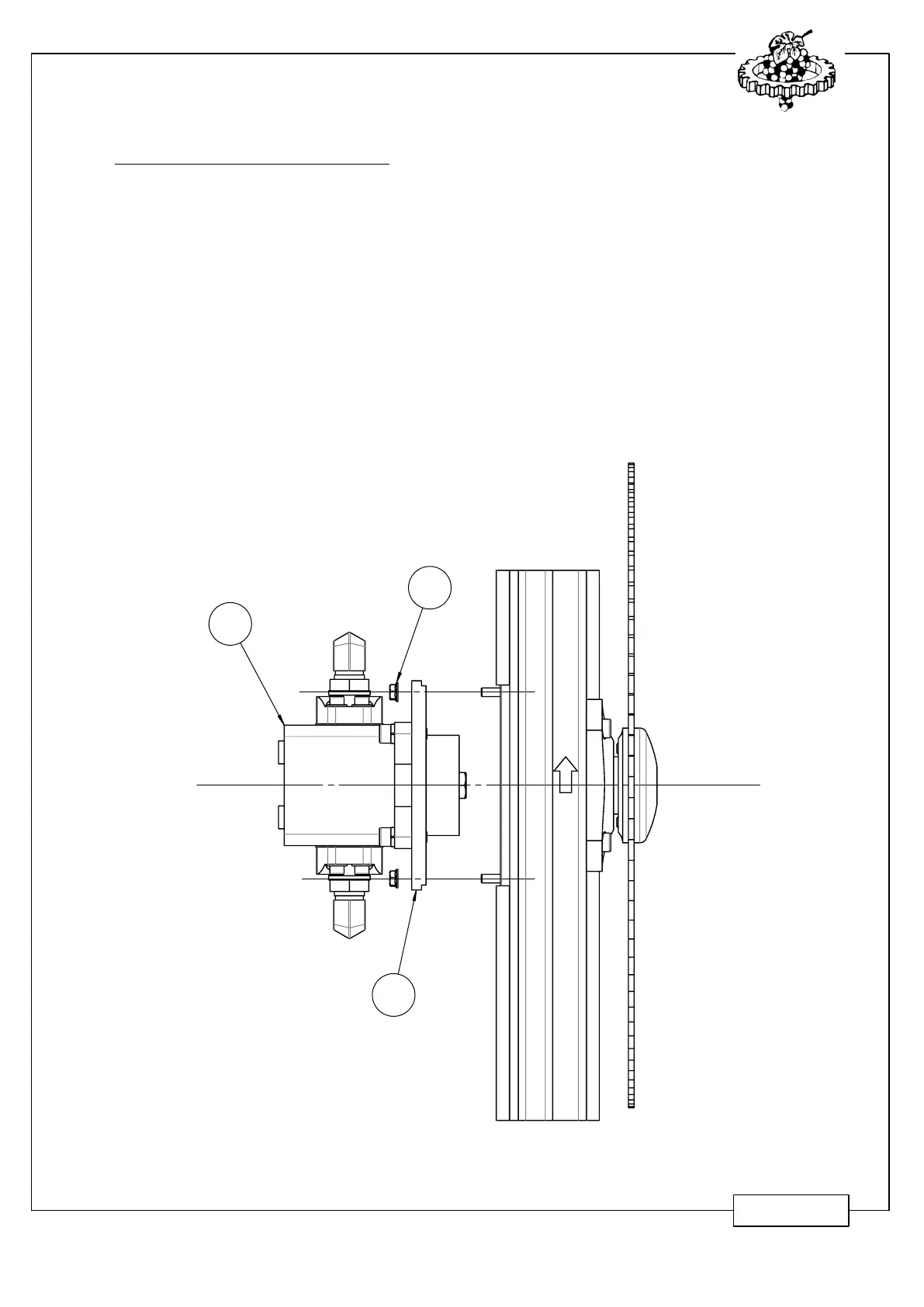

Assembly of the belts :
Mounting on motorised elements :
- To gain access to the motor pulley, the entire motor assembly (
A
) must be removed
with its fixing plate (
B
). This is done by loosening the 4 nuts (
C
).
- When assembling this unit, make sure of the cleanliness of the bearing surfaces so
that the tightening of the plate (
B
) is distributed on the totality of the plate's surface.
- Recommended tightening torque for nuts (
C
) : 1,5 daN
.
m.
PL 4193
