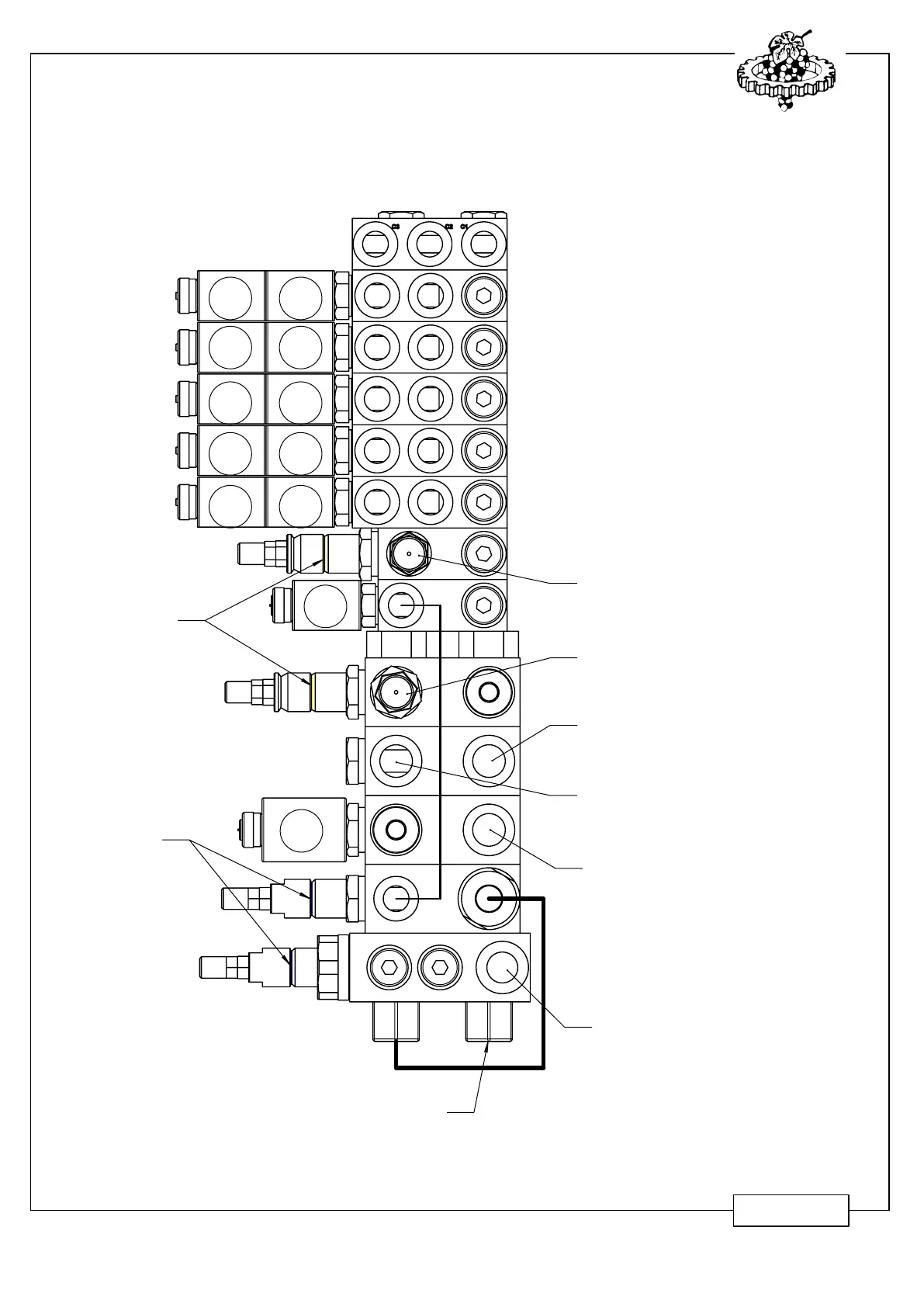

Hydraulic system
Ref : 0502 2981
PPV : Cylinders pressure taker
PPM : Motors pressure taker
AM : Motors supply
Pressure limiter (cylinders)
Flow regulator (cylinders)
Pressure limiter (motors)
Main flow regulator
P : General power (Pump)
T : General return (Tank)
RM : Return of the Motors
By-pass (cylinders)
Starting element (motors)
Feeding valve (motors)
Drainage collector
Width adjustment cylinder L/H
Deployment adjustment cylinder R/H
Width adjustment cylinder R/H
Deployment adjustment cylinder L/H
Height adjustment cylinder
9
BP
56
7 8
14
13
32
12
120 bar
180 bar
5 L/min
40 L/min
PL 4608
