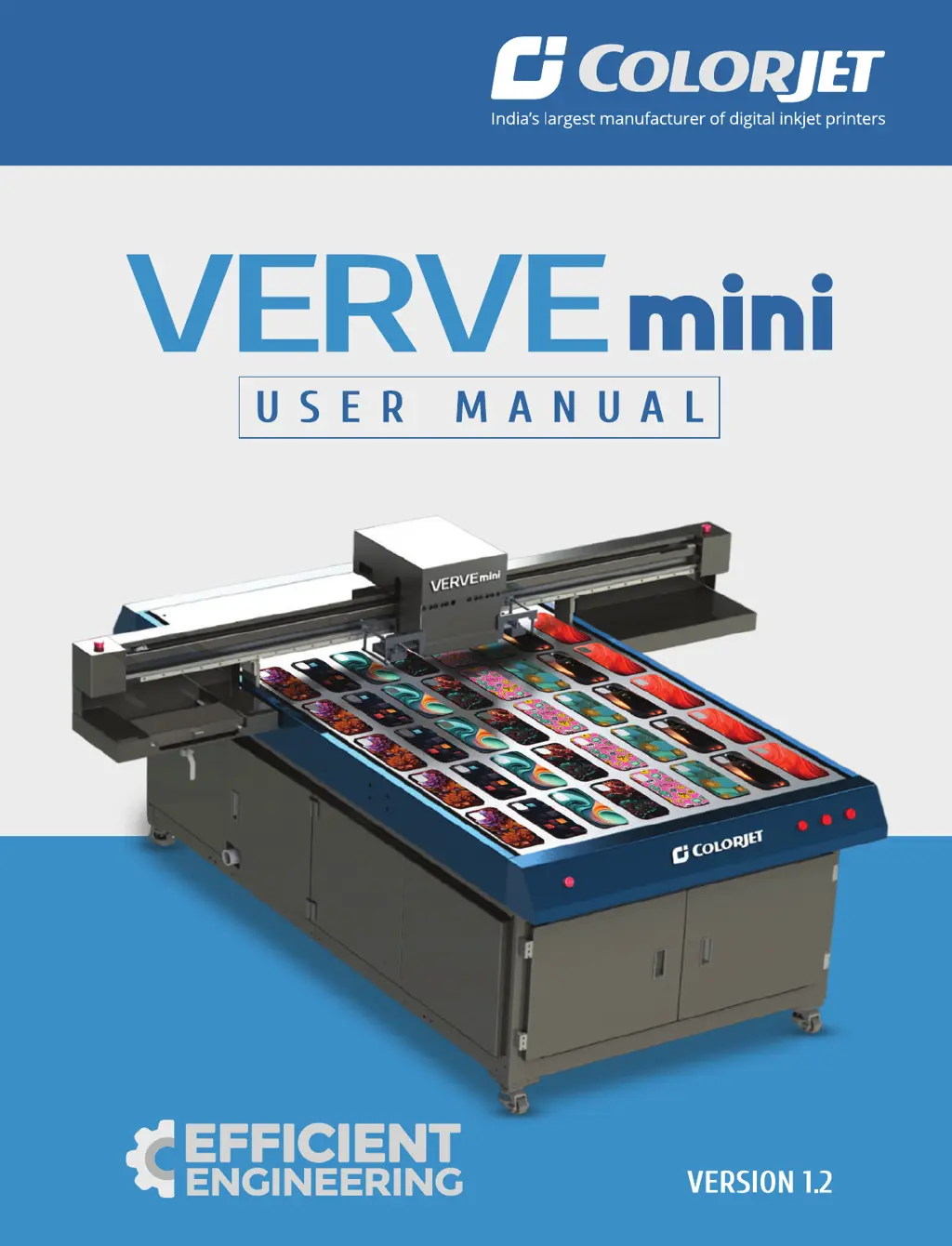

Colorjet Verve Mini - User Manual

Colorjet Verve Mini
51 pages
Save Page as PDF
Print Icon
To Next Page IconTo Next Page
To Next Page IconTo Next Page
Loading...

Other manuals for Colorjet Verve Mini

Preview: Installation And Troubleshoot Guide
Installation And Troubleshoot Guide54 pages

Questions and Answers

  • Z
    Zachary JimenezAug 18, 2025
    What to do if my Colorjet Printer stops in between printing?
    • A
      Ashley NelsonAug 18, 2025
      If the Colorjet Printer stops printing midway, there could be several reasons. Ensure the USB cable is securely tightened; if it's faulty, replace it. Check if the file size exceeds the printer's limit and use smaller, compatible images. Verify the ground wire is connected to the system. Clean the encoder scale if it has ink stains, and replace it if it's faulty. If the ripped file has an error, carefully read and resolve it.
  • B
    Benjamin BuckAug 21, 2025
    Why is my Colorjet Printer print margin shifting or junk printing?
    • M
      Matthew CampbellAug 21, 2025
      If the Colorjet Printer's print margin is shifting or producing junk prints, start by cleaning the encoder scale if it has ink stains. Also, clean the encoder sensor. Check the pulley and belt for slippage, replacing them if necessary. Finally, replace the data cable if it is faulty.
  • B
    Brandon MichaelAug 25, 2025
    What to do if the ink is not filling in my Colorjet Verve Mini?
    • C
      Christina BowenAug 25, 2025
      If the Colorjet Printer is not filling ink, start by refilling the main tank. If the ink pump isn't working, replace it if it's faulty and tighten any loose connectors. Ensure the connectors to the head board are tight and replace the sub tank if the float sensor is faulty. Lastly, replace any ink pipes that have cuts.
  • D
    Debra ThompsonAug 27, 2025
    How to fix Colorjet Verve Mini head nozzles not firing?
    • R
      robert32Aug 27, 2025
      If the head nozzles on your Colorjet Printer are not firing, begin by cleaning the print heads. Next, tighten the head cables if they are loosely connected. Finally, refill the ink if the ink pipes are empty, replace the ink pipe if it's faulty, and fix any loose connections.
  • R
    Rebecca PetersonAug 30, 2025
    Why is my Colorjet Verve Mini print blurry?
    • S
      suzannecunninghamAug 30, 2025
      If your Colorjet Printer's print is blurry, first, ensure the print heads are correctly aligned. Second, only use the recommended ink and store it in a favorable environment.
  • A
    Austin WilsonSep 2, 2025
    How to resolve lines in print on my Colorjet Verve Mini Printer?
    • A
      Autumn WilkinsSep 2, 2025
      If you observe lines in the print from your Colorjet Printer, the head nozzles may be blocked, so clean the print head. If that doesn't solve the issue, correct the feed steps using the Calibration Wizard. If the head alignment is incorrect, refer to the Head Alignment section. As a last resort, replace the feed motor or driver if they are faulty.
  • C
    Christian ChristianSep 5, 2025
    What to do if the UV lamp is not working on my Colorjet Verve Mini?
    • A
      Adam BurnettSep 5, 2025
      If the UV lamp on your Colorjet Printer is not working, check and correct the power supply settings. If the power supply is correct, then correct the UV lamp settings. If the issue persists, check and replace the UV lamp control board. Finally, if the UV lamp is faulty or aged, check and replace it if required.
  • C
    Christopher HuntSep 8, 2025
    Why is my Colorjet Verve Mini Printer print not drying?
    • R
      Ricardo GreenSep 8, 2025
      If the print is not drying from your Colorjet Printer, correct the UV Lamp settings. If the issue persists, control the frequency of UV Lamp using the Left or Right Lamp regulator and set the printing parameters. If the UV lamp is aged, check and replace it if required and contact the factory for more details.
  • J
    John Galvan Jr.Sep 12, 2025
    What causes negative pressure drop in Colorjet Printer?
    • J
      Joshua PerrySep 12, 2025
      If the negative pressure is dropping or not working on your Colorjet Printer: * Check and replace the pump, if vacuum is not generated by it. * Tighten the Vacuum Pump connector, if it is loose. * Check and replace any ink/air tube having leakage/cut/loose on fitting joints, if required.
  • L
    linda56Nov 14, 2025
    Why is my Colorjet Printer not initializing?
    • C
      Cody JonesNov 14, 2025
      If the Colorjet Printer is not initializing, several factors could be responsible. First, ensure the emergency switch is not pressed. Next, check the carriage safety switch and release it if it's activated; replace it if faulty. Verify the power supply to the head board, checking the input/output voltage and the MCB, switching it on if necessary. Also, inspect the SMPS output power and the 24V power supply, replacing the power supply or its cable if either is faulty. Finally, address any errors displayed on the screen, check the servo motor power connection, and replace it if faulty. If the factory settings have been disturbed or there's a fault in the main board, correct the factory settings or replace the main board. If the head board or encoder sensor is faulty, replace them accordingly...

Summary

Print Control Center Interface Overview

Printer Preparation and Startup

Switch On Procedure

Loading Media

Filling Ink

Chiller Operation and UV LED Lamp

Print Control Center Operations Guide

Print Option Menu Settings

White and Varnish Settings

Saving and Importing Printer Settings

Task Select Menu

Operation Menu

Opening an Image File

Print Position Adjustment

Checking Printing Status

Accessing Maintenance Features

Calibration Wizard Access

Accessing tools for print head calibration.

Vertical Calibration

Performing vertical alignment of print heads.

Motion Tab Settings

Adjusting carriage and gantry movement parameters.

Voltage Tab Settings

Configuring print head voltage settings.

Carriage Lifter Tab Settings

Adjusting print head height and media detection.

Feeding Password Procedure

Procedure for entering a new password to continue operation.

Print Head Calibration

Bi-Direction Offset Calibration

Print Head Cleaning Procedures

Head Blotting and Purging

Cleaning print head nozzles using wipers and purging.

Head Spraying Procedure

Performing head spraying to clear blockages and prevent color mixing.

Printer Shutdown Procedure

Printer Component Maintenance

Troubleshooting Common Issues

Printer Not Initializing

Common issues and solutions when the printer fails to start.

Print Control Center Errors

Troubleshooting steps for specific error messages from the software.

Print Not Curing;Ink Marks

Addressing issues with UV curing and ink transfer to fabric.

Ink Not Filling Issues

Solutions for problems related to ink not reaching the print heads.

Print Stops in Between Printing

Reasons and fixes for unexpected print job interruptions.

Print Shifting;Junk Printing

Resolving issues where prints are misaligned or corrupted.

Blurry Print Results

Diagnosing and fixing blurry print results.

Lines in Prints Troubleshooting

Troubleshooting methods for missing lines or streaks in prints.

Error Code Specifications and Solutions

Machine Error Codes and Actions

Colorjet Verve Mini Specifications

General IconGeneral
Print AreaUp to A4
Print Resolution4800 x 1200 dpi
PrintheadThermal Inkjet
Ink TypeDye-based Ink
Colors4
Print TechnologyHP Thermal Inkjet
Print Speed (Black)Up to 20 ppm
Print Speed (Color)Up to 16 ppm
Paper Sizes SupportedA4
ConnectivityUSB 2.0
Operating System CompatibilityWindows
