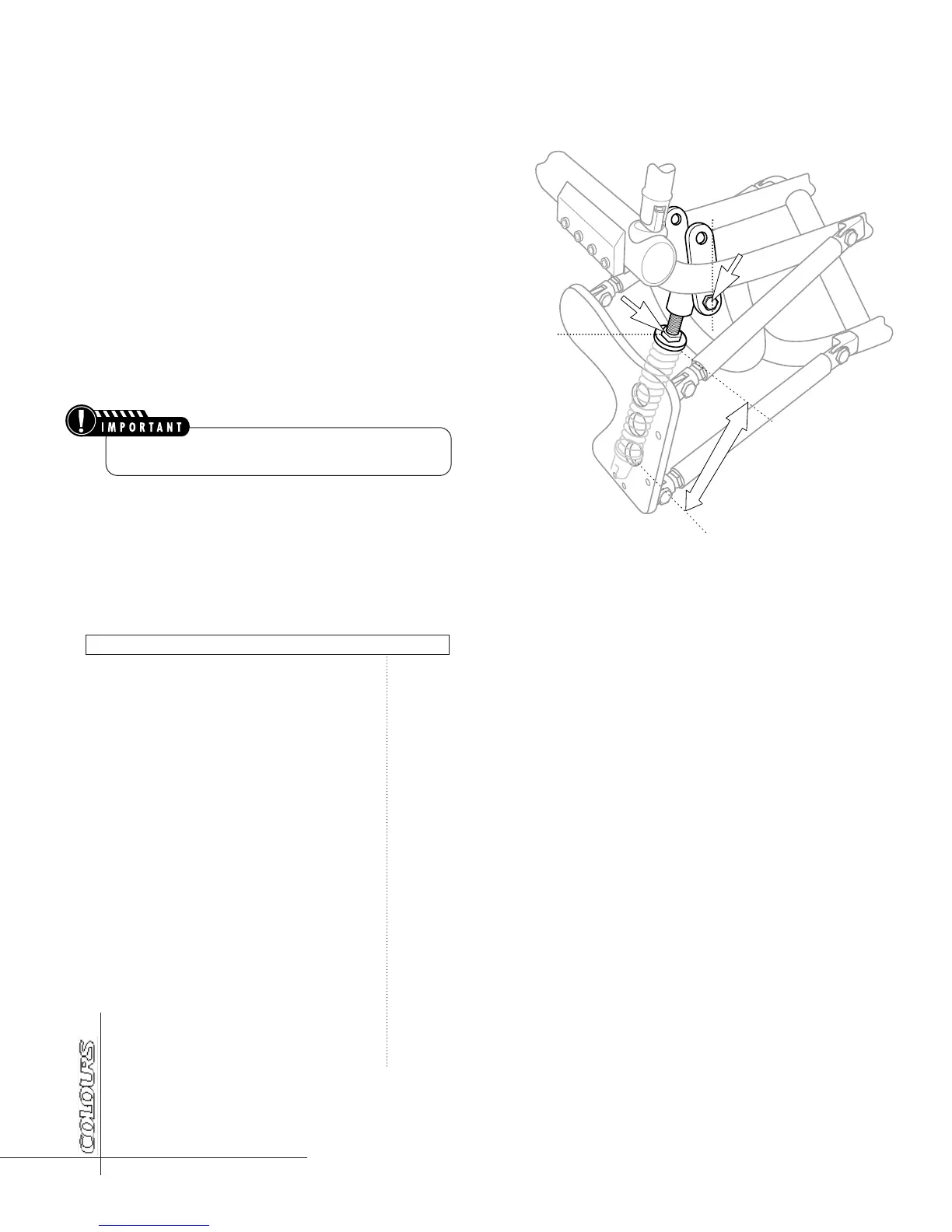

Adjusting the Shocks (Boing! & ShockBlade only)
To extend or decrease the length of the shocks on the Suspension Assembly:
1.Remove the screw securing the top of the shock assembly to the frame.
2.Loosen (to extend pre-load of the spring) or tighten (to decrease pre-
load of the spring) the nut at the top of the shock spring to the desired
setting.
3.Reinstall the shock assembly to the frame.
4.Repeat steps 1 through 3 on the other shock.
Shocks
1
2
The length of both shocks should be the same.
Advanced Adjustments
The following adjustments should only be
made by an authorized Colours dealer. We dis-
cuss them for informational purposes only.
The four sections that make up part two of this
owner's manual are interrelated, hence, if a
single adjustment is made in one section it
will effect the adjustments in the other three
sections. Should a chair require a modification
in this section it is imperative that the adjust-
ments be made sequentially.
G E T T I N G I T R I G H T P A R T 2
REAR SEAT HEIGHT
FRONT SEAT HEIGHT
CAMBER ANGLE
WHEEL ALIGNMENT (TOE-IN / TOE-O UT)
CASTER ANGLE
S E Q U E N C E O F A D V A N C E D A D J U S T M E N T S
STEP 1.
STEP 2.
STEP 3.
STEP 4.
STEP 5.
11
O W N E R ’ S M A N U A L
