AAddjjuussttaabbllee PPoossiittiioonn && AAnnggllee CCaasstteerr HHoouussiinngg ((SSaabbeerr))
(Tools Needed: • 3/16” Allen Wrench • 5/32” Allen Wrench • 1/8” Allen Wrench • 3/8” Open End Wrench)
1. Place the chair on a level surface.

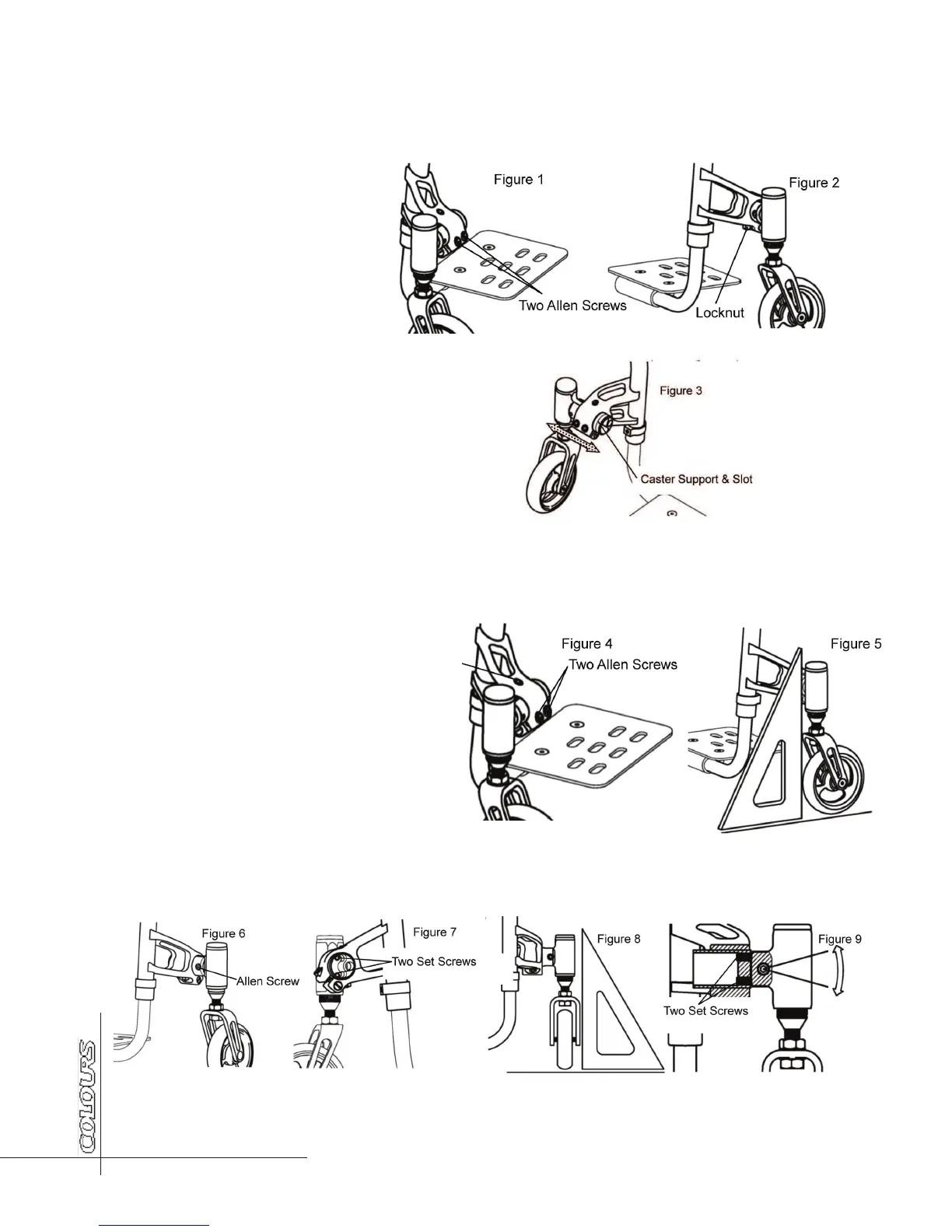

2. Loosen, but do not remove, the two Allen Screws that hold the caster Housing. (See Figure 1)
3. Loosen the locknut, but do not remove, while keeping the bolt from rotating. (See Figure 2)
4-1. Adjusting the position.
4-2. Move “Caster Support” to the inside or outside
and check the position to see the slot. (See Figure 3)
4-3. Be the same position of left and right caster housing.
5-1. Adjusting the angle.
5-2. Turn the bolt to adjust the angle of caster housing.( See Figure 4)
5-3. Adjust the caster housing to be perpendicular to the level surface.
( Use a drafting triangle or similar 90°angle tool. See Figure 5)
5-4. Using the Allen Wrench to prevent the bolt from turning, use the open end wrench to tighten the locknut.
5-5. Securely tighten the two Allen Screws.
5-6. Recheck the caster housing to be certain it is still perpendicular to the ground before riding.
6-1. Adjusting the camber angle of caster housing.
6-2. Loosen, but do not remove, the one Allen Screw (See Figure 6)
6-3. Loosen, but do not remove, the two Set Screws (See Figure 7)
6-4. Adjust the caster housing to be perpendicular to the level sur-
face.
( Use a drafting triangle or similar 90°angle tool. See Figure 8)
6-5. Securely tighten the one Allen Screw.
6-6. Securely tighten the two Set Screws. (See Figure 9)
**AAfftteerr ttiigghhtteenniinngg tthhee lloocckknnuutt aanndd aallll ssccrreewwss,, rreecchheecckk tthhee ccaasstteerr hhoouussiinngg ttoo bbee cceerrttaaiinn iitt iiss ssttiillll ppeerrppeennddiiccuullaarr
ttoo tthhee ggrroouunndd bbeeffoorree rriiddiinngg..
Turn bolt to adjust the angle
