Axle Plates (Saber)
Center of Gravit y ; Rear Seat Height
(Tools Needed: • 3/16" Allen Wrench • 7/16" Open End Wrench)

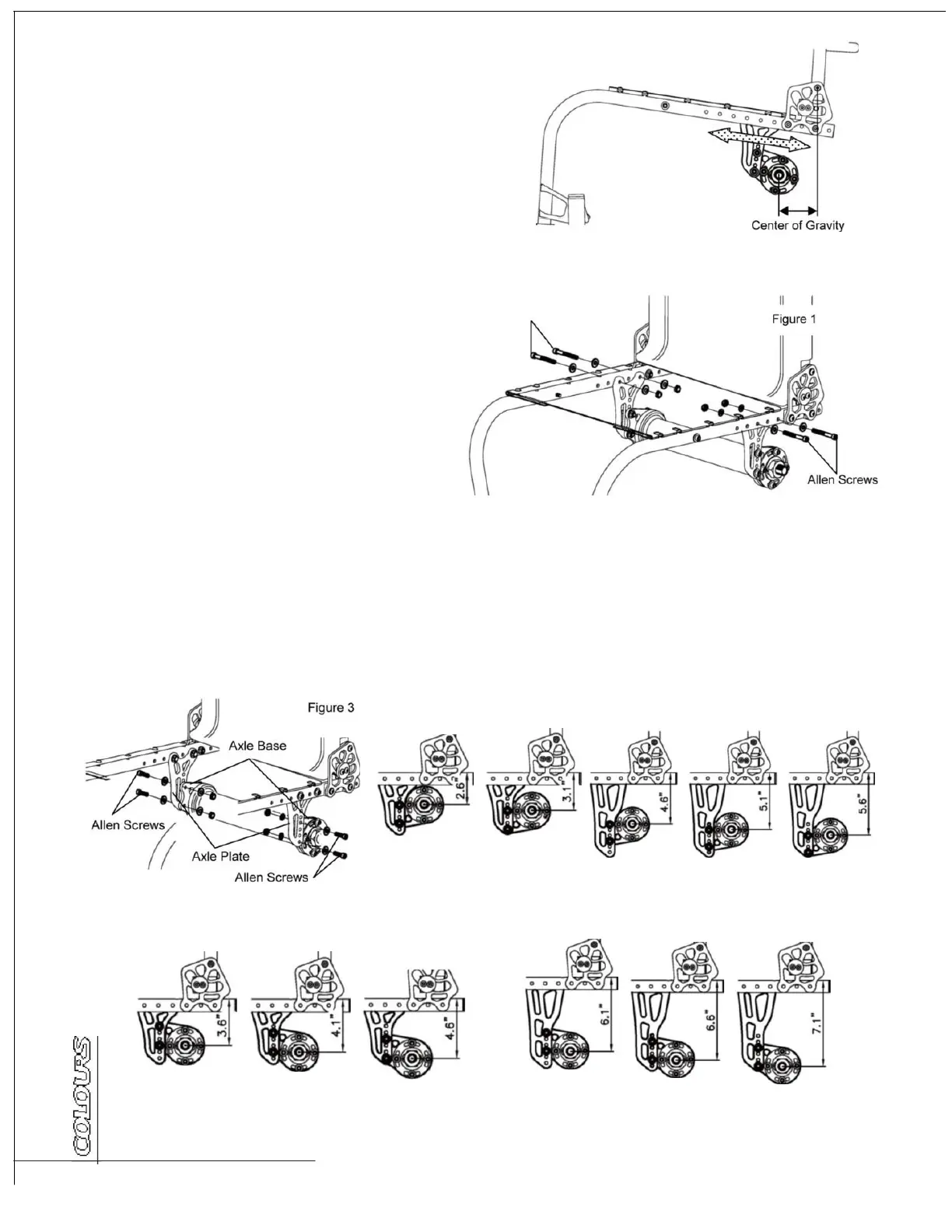

Adjusting Center of Gravity (Saber only)
1. Place the chair on a level surface.
2. Remove the rear wheels.
3. Remove the four Allen Screws that secure the axle plate to the frame.
(See Figure 1)
4. Reposition the axle plate to the desired center of gravity. (See Figure
2}
5. Reinstall the four Allen Screws.
F i gure 2
6. Securely tighten all four Allen Screws.
7. Reinstall the rear wheels.
8. Chec k the toe-in/toe-out and adjust as needed and
square the front casters as needed before riding.
Adjusting Rear Seat Height (Saber only)
Allen Screws
1. Place the chair on a level surface .
2. Remove the rear wheels.
3. Remove the four Allen Screws that secure the axle plate to the axle base. (See Figure 3}
4. Reposition the axle plate to the desired rear seat height. (See Figure 4}
(*Depending on the rear seat height, Axel base plates may need to be reversed.)
5. Reinstall the four Allen Screws.
6. Securely tighten all four Allen Screws.
7. Reinstall the rear wheels.
8. Check the toe-in/toe-out and adjust as needed and square the front ca s t er s as needed before riding.
STD Axle Plate & Axle Ba se
Figure 4
Long Axel Plate & Axle B ase
STD Axle Plate & Re v ersed Axle Base
7 O W NER 'S MANU A L
Long Axle P l ate & Reversed Ax l e Base
