Owner’s Guide
5
Calcium Bisulte Calcium Hypochloride
Chloracetic Acid Chloric Acid
Chlorine Anhydrous Copper Chloride
Copper Fluoborate Ethyl Chloride
Ferric Chloride Ferrous Chloride
Ferris Sulfate Fluoboric Acid
Flourine Hydrobromic Acid
Hydrochloric Acid Hydrocyanic Acid
Hydroouric Acid Hydrouosilicic Acid
Iodoform Mercuric Chloride
Muriatic Acid Phosphoric (crude)
Sodium Hypochlorite Potassium Chloride
Stannic Chloride Stannous Chloride
Zinc Chloride Sulfuric Acid
C. Inspecting the Power Cord
Periodically check the power cord for damage and see that the con-
nectors at both ends of the cord are fully seated.
D. Changing the Fuse
1. Turn the main power switch to the “off” position.
2. Remove the power cord from the wall outlet rst and then from
the power cord receptacle on the rear of the unit.
3. The fuse is held by a fuse drawer which is inserted into the fuse
holder. The fuse holder remains xed to the UC50DB housing.
These parts are located directly beside the power cord receptacle
(Fig. 8). To access the fuse, depress the center tab on the fuse
drawer and pull the drawer open (Fig. 9).
4. Remove the fuse from the fuse drawer.
5. Examine the fuse. If it is blown (Fig. 10), replace with a
fusewhich matches the fuse type listed under the unit specica-
tions section of this manual. If fuse appears to be in good con-
dition (Fig. 11)and power is not activated when the main power
on/off switch is turned “on,” return the BioSonic unit to your
dealer or Coltène/Whaledent.
6. Slide the fuse back into the holder. To secure the fuse drawer,
simply push the drawer closed.
7. Make sure the main power switch is “off.” Plug the power cord
into the power cord receptacle on the rear of the unit. Then
plug the power cord into the wall receptacle.
VIII. Unit Specications
UC50DB115 [115V ± 10%, 50/60 Hz, 70W max]
UC50DB230CE [230V ± 10%, 50/60 Hz, 70W max]
UC50DB230UK [230V ± 10%, 50/60 Hz, 70W max]
UC50DB240 [240V ± 10%, 50/60 Hz, 70W max]
Operating Frequency: 53.4 kHz
Tank Capacity: .85 gallon or 3.2 L
Use Capacity: .53 gallon or 2 L
Overall Dimensions: 11.5 x 9 x 7.75 inches or
29.2 x 22.9 x 19.7 cm
Tank Dimensions: 7.75 x 5.75 x 4.125 inches or
19.7 x 14.6 x 10.5 cm
Fuse Type: 100V Units: 5 x 20 mm, 1.25A/250V, Two each
115V Units: 5 x 20 mm, 1A/250V, Two each
230V Units: 5 x 20 mm, 500mA/250V, Two each
240V Units: 5 x 20 mm 500mA/250V, Two each
EMC Class A: Suitable for use in all establishments other than do-
mestic and those directly connected to a low-voltage
power supply network which supplies buildings used
for domestic purposes

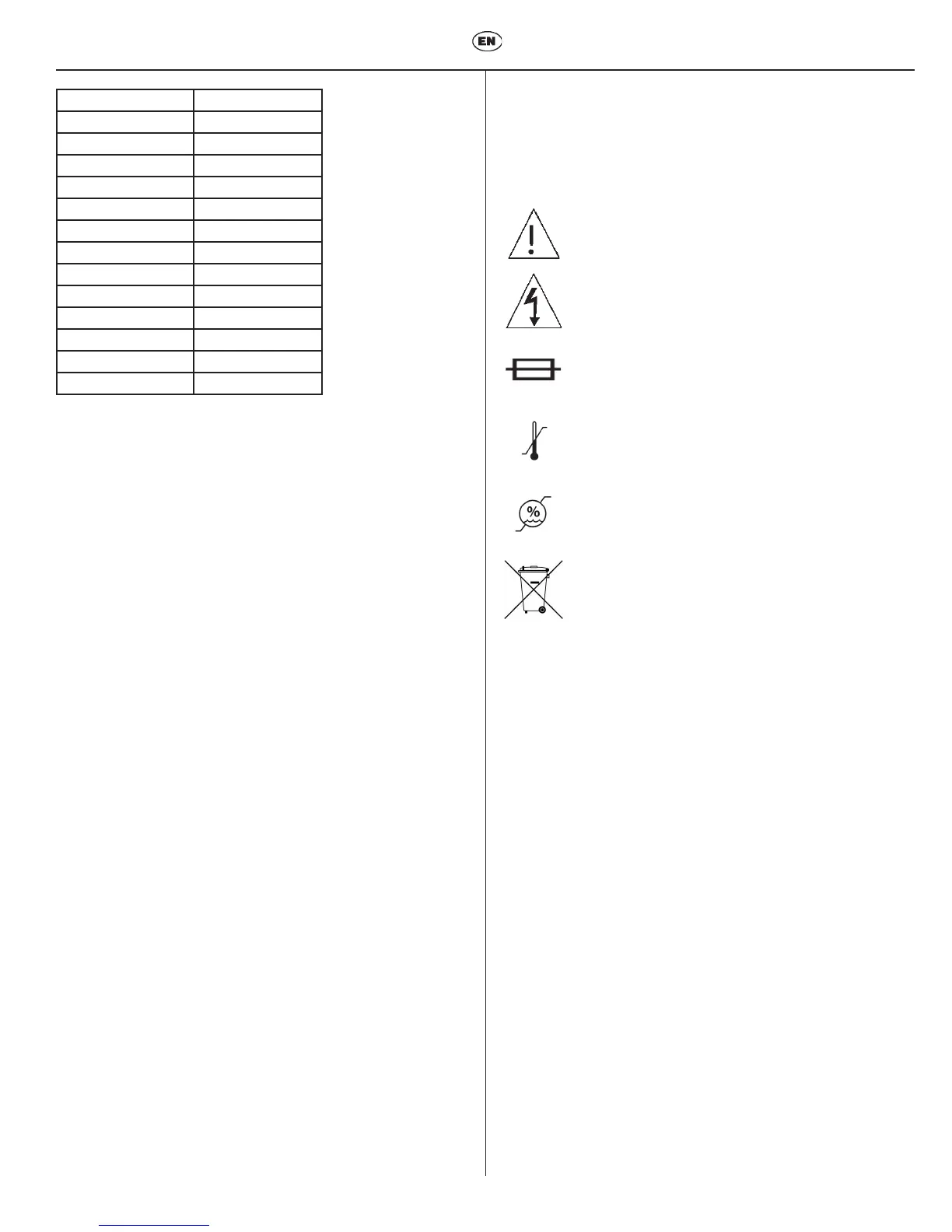

IX. Symbols
Caution/Warnings: See accompanying documents
Caution: Risk of electric shock
Fuse location
Temperature Limits
Humidity Limits
Proper Disposal Required
X. Order Information
Cat. No. Description Qty.
UC50DB115 Unit (115V ± 10%, 50/60 Hz) 1
UC50DB230CE Unit (230V ± 10%, 50/60 Hz) 1
UC50DB230UK Unit (230V ± 10%, 50/60 Hz) 1
UC50DB240 Unit (240V ± 10%, 50/60 Hz) 1
Accessories:
UC58 Instrument Basket 1
UC153 One Beaker Holder 1
UC53 600 ml Beaker with Cover
and Positioning Ring 1
UC55 One Beaker Cover 1
Concentrated Cleaning Solutions:
UC30
BioSonic
®
General Purpose Cleaning Solution Concentrate in MeterDose
®
Dispensing Bottle (16 oz.) 473 ml
UC31
BioSonic
®
General Purpose Cleaner + Super Rust Inhibitor
20 Single Dose Packets 15 ml
UC32
BioSonic
®
Enzymatic Ultrasonic Cleaner Concentrate in MeterDose
Dispensing Bottle (8 oz.) 236 ml
UC34
BioSonic
®
Plaster & Stone Remover Powder Concentrate in Jar
(1.85 lbs.) 840 g
UC38
BioSonic
®
Germicidal Ultrasonic Cleaning Concentrate in MeterDose
Dispensing Bottle (8 oz.) 236 g
