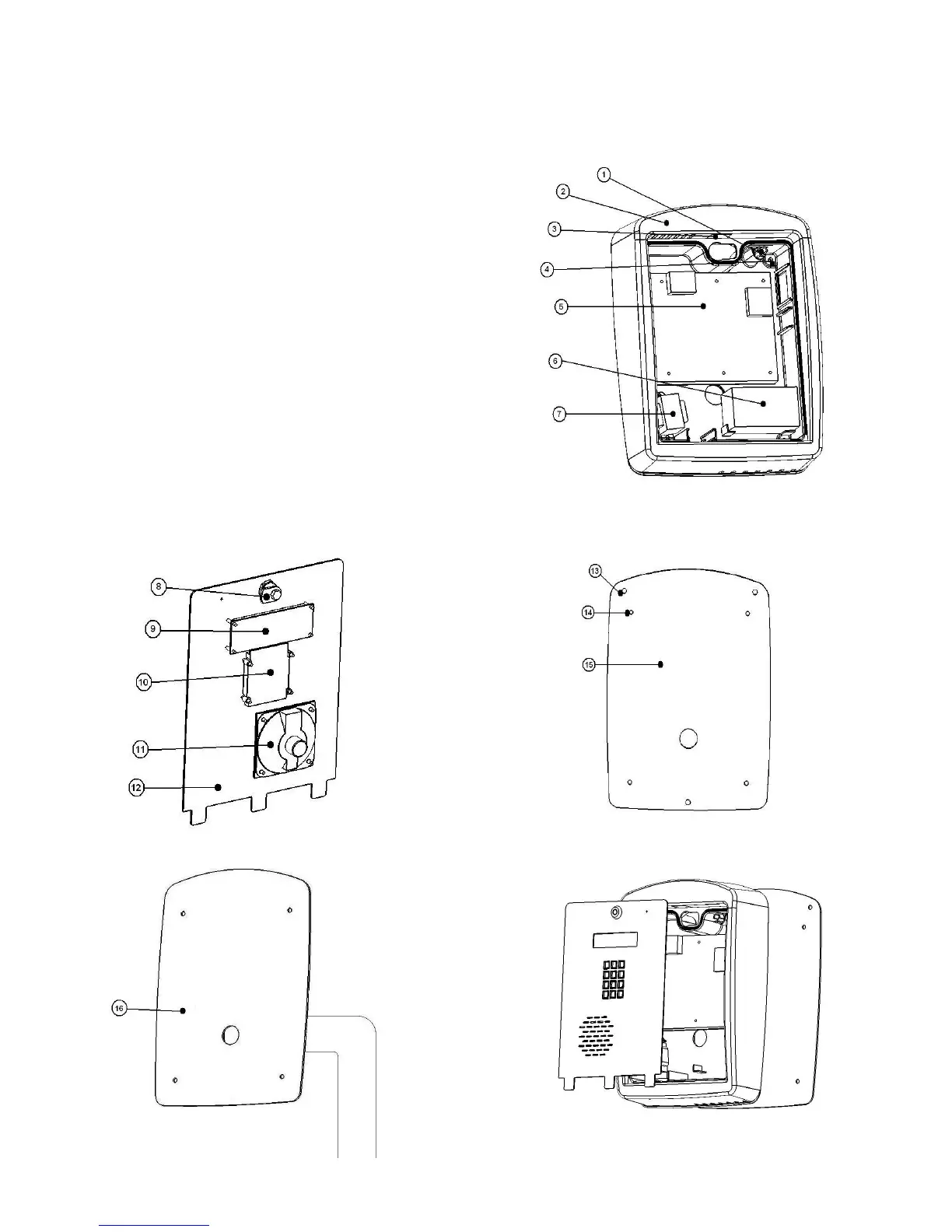

MAJOR COMPONENT LIST
1. Microphone
2. Plastic Enclosure
3. LED Lighting (Std White led)
4. Back Plate mounting holes
5. Main PCB
6. Battery (12v 0.8AH)
7. Transformer (15v 1amp)
8. Non Key alike barrel lock
9. Display (Blue writing white backlight)
10. Metal Keypad
11. Speaker (45Ω 1w)
12. Stainless Steel Front plate
13. Gooseneck mounting hole
14. Enclosure mounting hole
15. Stainless steel back plate
16. Gooseneck with mounting
