Series
Single Pack Blower Module (P/N: 200217)
Line Voltage Installation
For Installation of this unit refer to construction site plans or cut sheet for locating the unit. If the blower
is installed in a closed canopy, the exhaust port must be vented to outside air to prevent overheating. Refer
to field service wiring kit (P/N: 200438) for all control and 115 VAC plugs.
NOTE:
There must be a 115VAC @ 20A dedicated circuit within 3.0 ft of the unit. All Line Power must be done in
compliance with the NEC (National Electrical Code) by authorized/qualified personnel.
Disconnect AC Power before Servicing Unit Only to be serviced by Qualified Personnel
*AC Service Disconnect for Unit is located at the Main Junction Breaker Box*
1-115 VAC 0.5A Resettable Fuse
1-24 VAC 1.5A Resettable Fuse
Disconnect AC Power before Servicing Unit
*AC Service Disconnect for Unit is
located at the Main Junction Breaker Box*

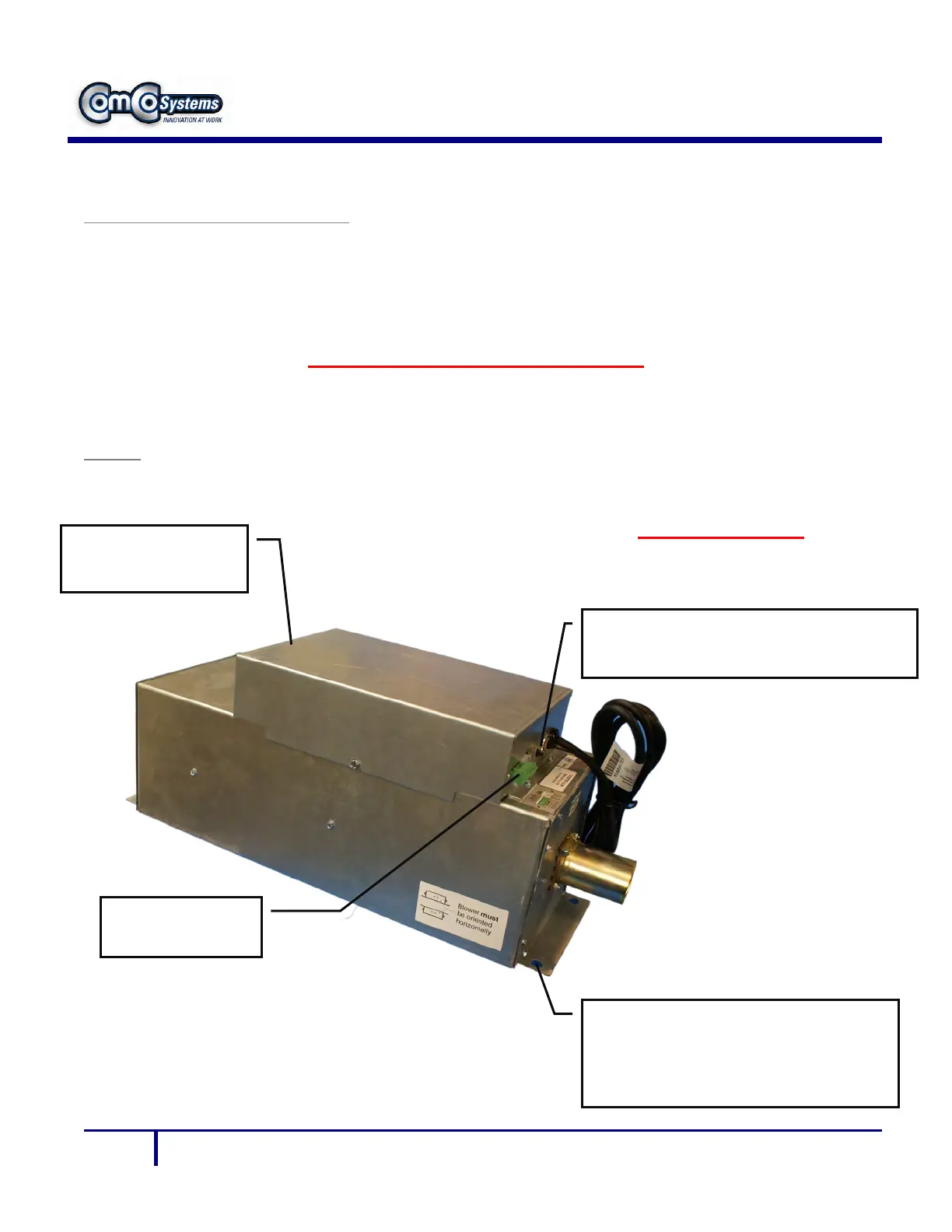

Use ¼” minimum hardware to
mount unit in place. For
mounting location see cut
sheets for job site.
2-115 VAC 10A
Resettable Fuse
To Next Page
