800.533.3794 | www.comcosystems.com 500169 Rev.18.0 pg. 40
Series
Installation

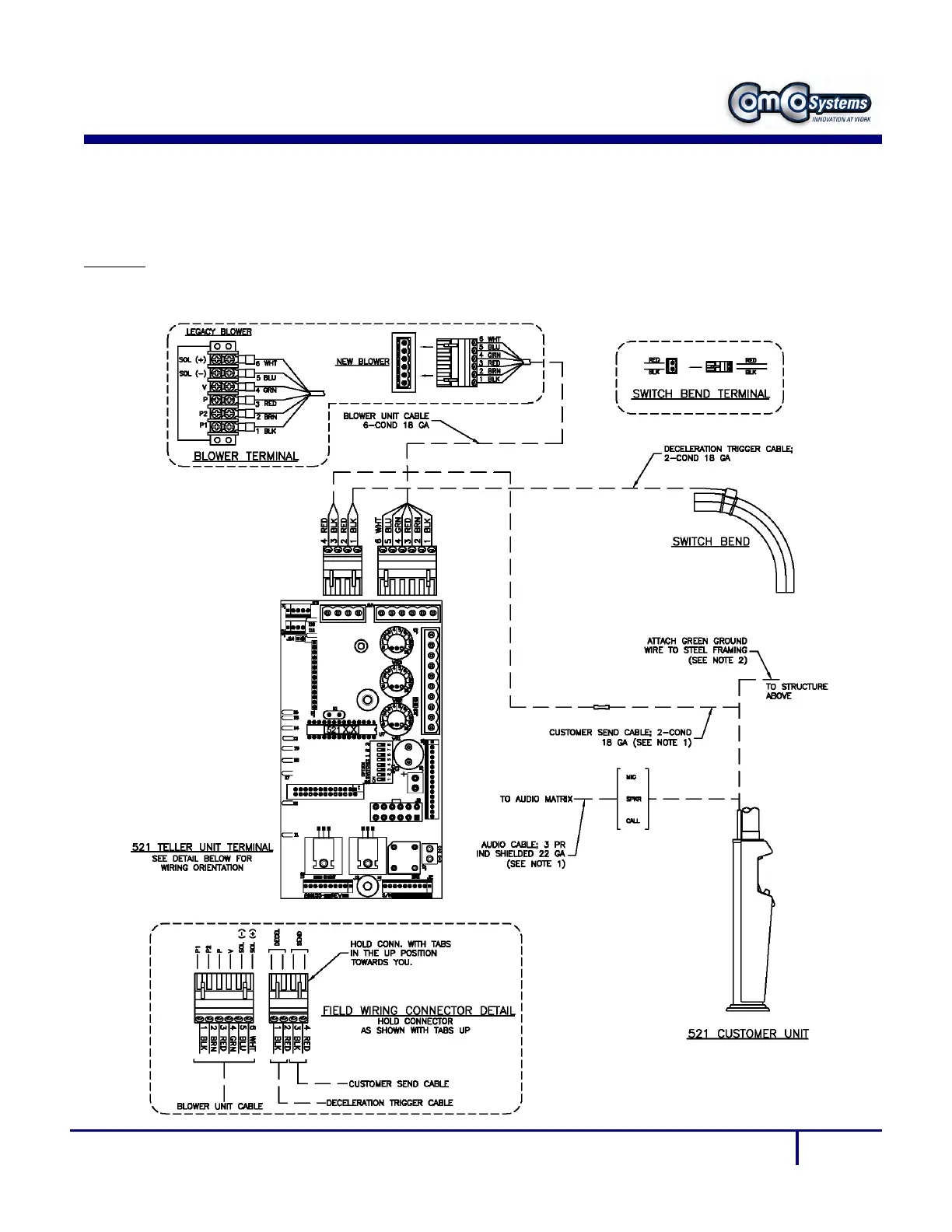

Control Field Wiring Diagram (P/N: 500136)
NOTE: All Class 2 interconnecting cabling must be done in compliance with the ARTICLE 800.33
(A) FPN No.2, exception No.2, of the NEC (National Electrical Code) by an
authorized/qualified personnel.
To Next Page
