Comelit 1256 - Actuator Pushbutton Activation; Actuator with Code Pushbutton Function; System Performance and Layouts

E) Activation function on Actuator pushbutton
F) Activation function on Actuator with code pushbutton.
The function may NOT be used in Simplebus Kit systems

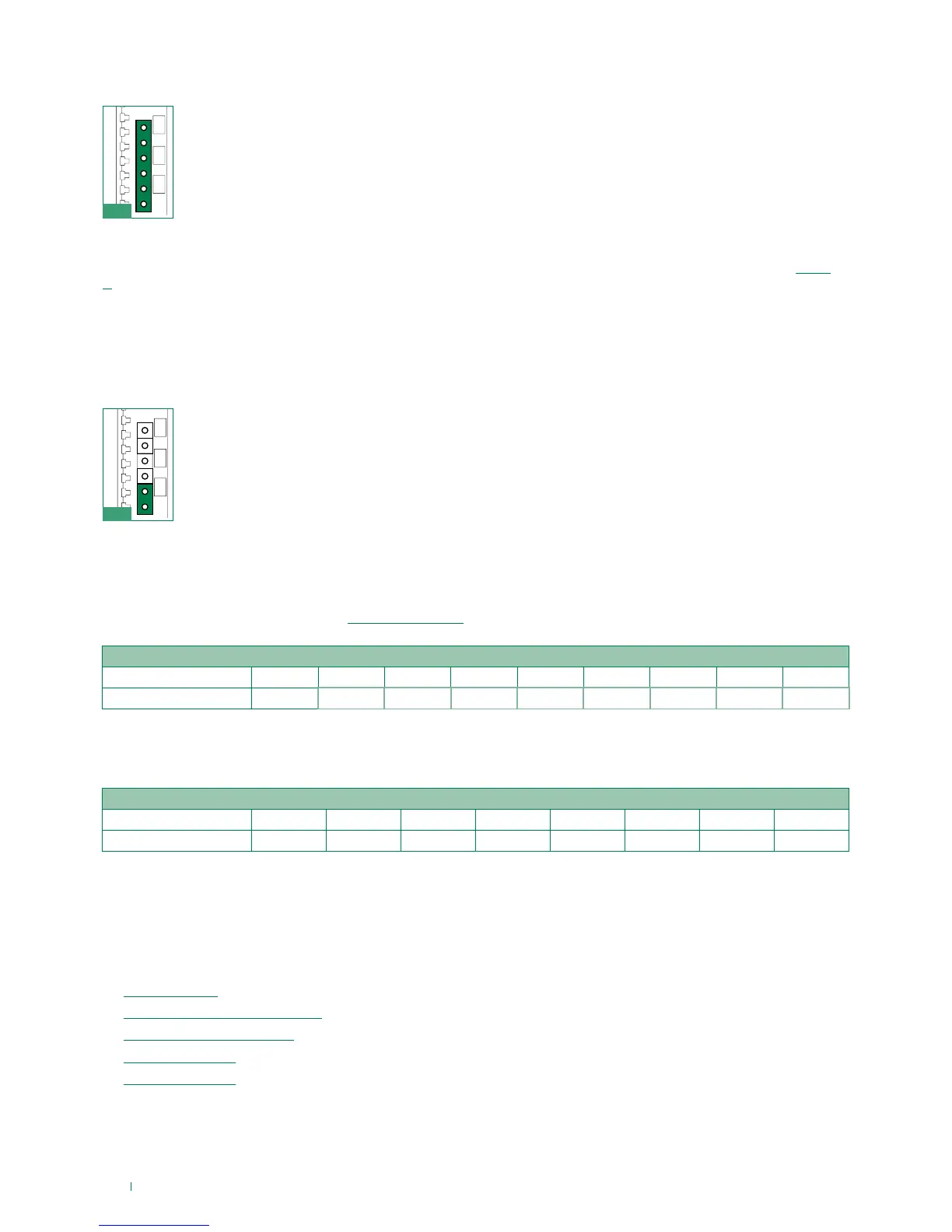

JP1 as illustrated in Fig. 5
JP1 JP1
JP1 JP1
JP1
JP1
JP2
12
JP4
12
JP3
12
FIG. 5
The relay is operated by closing the C.NO. contact in response to a Generic actuator call from an entry phone or video entry
phone (e.g. to activate the following independently, using a specific command: lights, CCTV alarm contacts, driveway gates,
entrances without external units or other devices). The relay closure time can be programmed using a DIP-switch (see table
A). The function can be used at all times except when a conversation is in progress from an entry phone or video entry phone
other than your own. All art. 1256 modules set for use with this function are activated simultaneously when the pushbutton on
the internal unit is pressed.
JP1 as illustrated in Fig. 6
JP1 JP1
JP1 JP1
JP1
JP1
JP2
12
JP4
12
JP3
12
FIG. 6
The relay is operated by closing the C.NO. contact if the pushbutton pressed on the entry phone or video entry phone has
been programmed (using the hand-held programmer art. 1251/A) to send the actuator call with the code of the actuator in
question (e.g. to activate the following independently, using a specific command: lights, CCTV alarm contacts, driveway gates,
entrances without external units or other devices). The closure time of the relay is fixed at 2 sec. the function can be used at
all times, except when a conversation is in progress from an entry phone or video entry phone other than your own. To set the
user code by means of a DIP-switch, see “addressing table”.
* The relay for art. 1256 operates in BISTABLE mode, changing its status at every command; if the power supply is cut o, it
returns to the C.NO. position and remains there, even after the power is restored.
Bistable mode is available for products with a revision index equal to or greater than 003.
TAB. A programming relay closure time for functions B, C and E
DIP switches ON ALL 1 2 3 4 5 6 7 8
Relay closure time * 1’‘ 2’‘ 4’‘ 8’‘ 16’‘ 32’‘ 1’ 5’‘ 2’ 10’‘
TAB. B programming code Range for function D
DIP switches ON 1 2 3 4 5 6 7 8
Enabled codes 1 ÷ 30 31 ÷ 60 61 ÷ 90 91 ÷ 120 121 ÷ 150 151 ÷ 180 181 ÷ 210 211 ÷ 240
System performance and layouts
For further information of system performance and to view installation layouts, click on the type of system that best meets your
needs:
• Audio/video kit for the creation of audio-video systems for individual residences.
• Building Kit audio/video system for the creation of audio-video systems for small apartment blocks.
• SBTOP audio/video system for the creation of audio-video systems for residential complexes.
• SB1 audio system for the creation of audio systems for residential complexes.
• SB2 audio system for the creation of audio systems for residential complexes.
