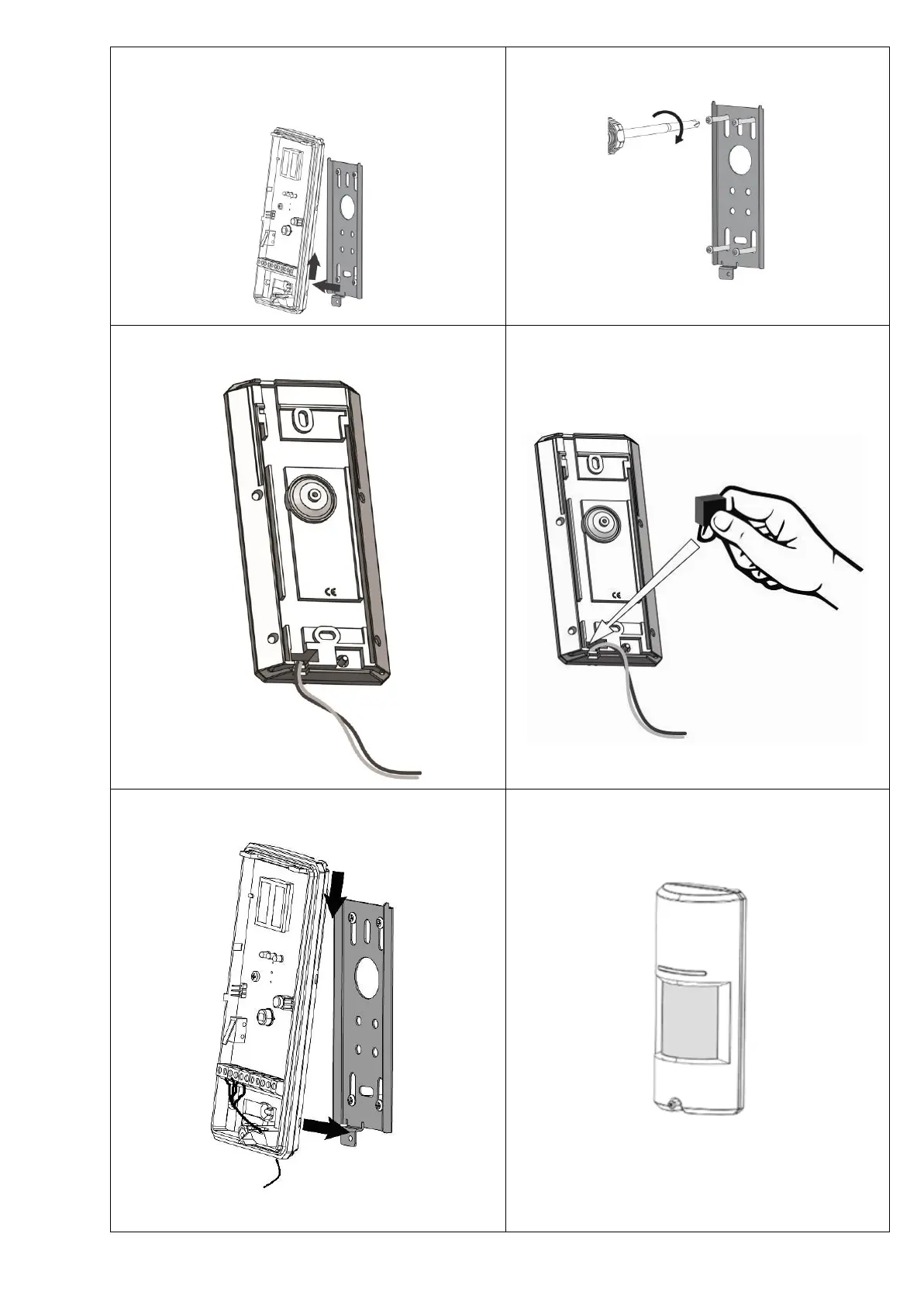

7. Release the detector body from the metal bracket by
pulling the detector up and out.
8. Attach the rear bracket to the wall using mounting
screws.
9. Insert wires through provided access hole and wiring
channels.
10. Attach the sealing sponge pad to the wire opening
from the rear side after the wires have been
connected and prior to final product affixing to the
mounted bracket.
11. Place the detector on the mounting bracket from top
side down and then lock the screw at the bottom.
