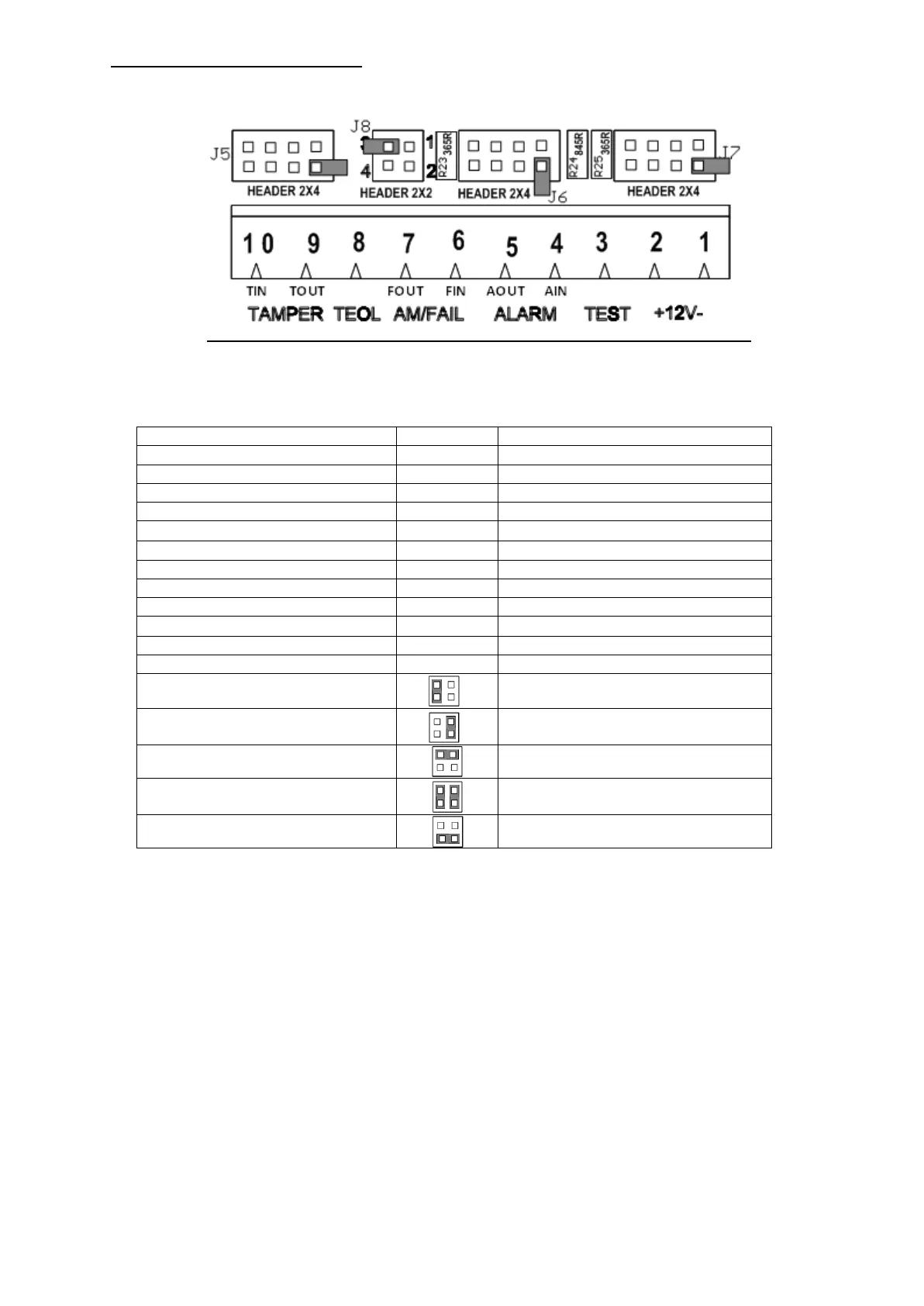

5 Terminal Block Connections
JUMPER
POSIZIONE
VALORE RESISTENZA
J5 (EOL TAMPER)
1
1,8 k
J5 (EOL TAMPER)
2
DIDN’T USE
J5 (EOL TAMPER)
3
DIDN’T USE
J5 (EOL TAMPER)
4
DIDN’T USE
J7 (ALARM)
1
1,8 k
J7 (ALARM)
2
3,3 k
J7 (ALARM)
3
DIDN’T USE
J7 (ALARM)
4
DIDN’T USE
J6 (AM/TROUBLE)
1
DIDN’T USE
J6 (AM/TROUBLE)
2
3,3 k
J6 (AM/TROUBLE)
3
DIDN’T USE
J6 (AM/TROUBLE)
4
DIDN’T USE
J8 (2/4)
Connessione interna tra FOUT e TIN
J8 (2/4)
Connessione interna tra AOUT e
FIN
J8 (2/4)
Connessione interna tra AOUT e TIN
J8 (2/4)
Connessione interna tra AOUT/FIN
e FOUT/TIN
J8 (2/4)
Non usare
