Comelit Visto - Visto Unit Description; Components and Connections

5
EN
Table of contents
Visto

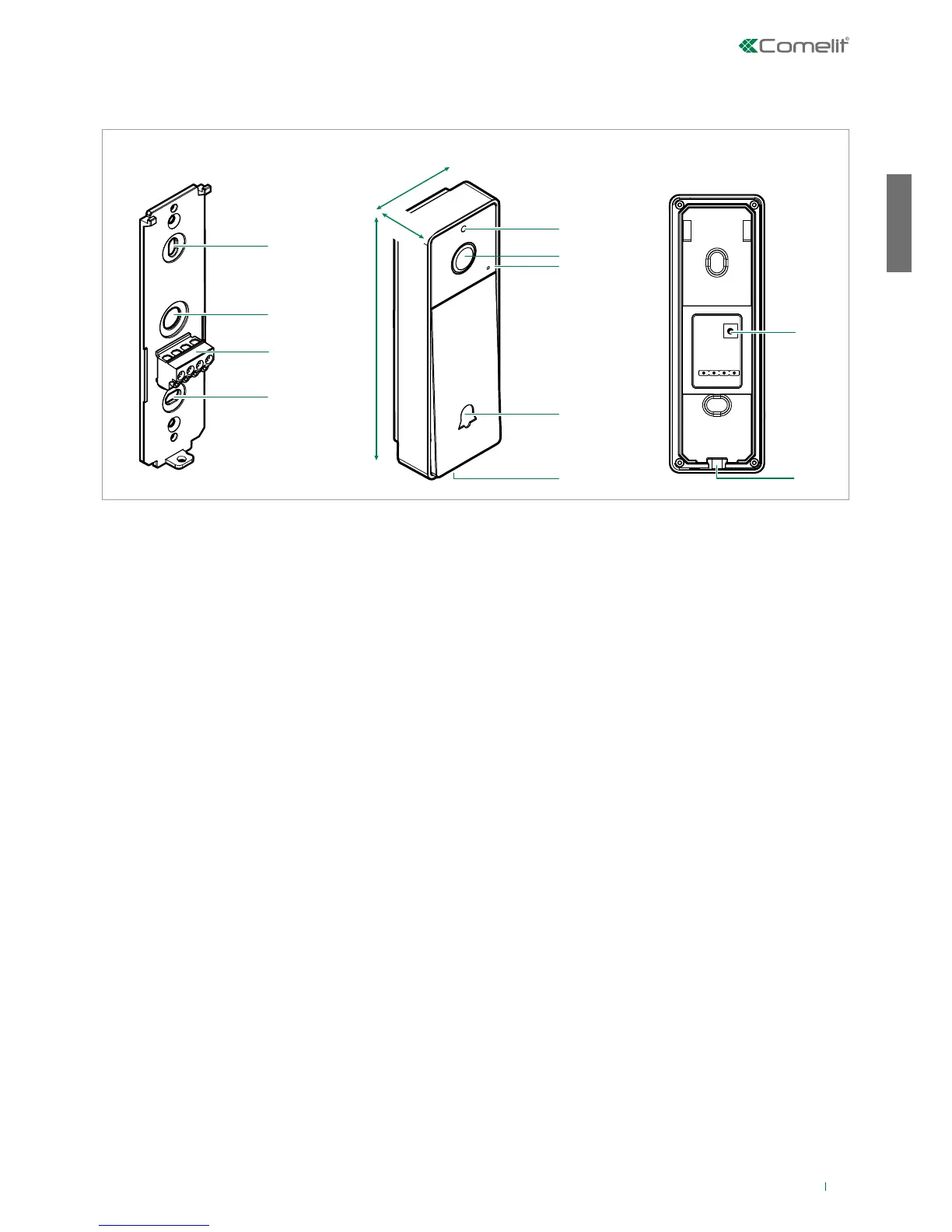

Description
1. Surface mount by means of screws
2. Cable inlet hole
3. Connection terminal
+ - Visto Power supply
NO Normally open relay contact
COM Common relay contact
4. Brightness sensor
5. Wide-angle color camera
6. Microphone
7. Call button / Indicator LED
8. Loudspeaker
9. Reset (To restore factory settings)
10. Mounting screw
1
1
2
3
4
5
6
7
8
10
137 mm (5,39")
47 mm (1,85")
28 mm
(1,10")
9
