Comelit Visto - Art. 3522 Component Description

8
EN
Table of contents

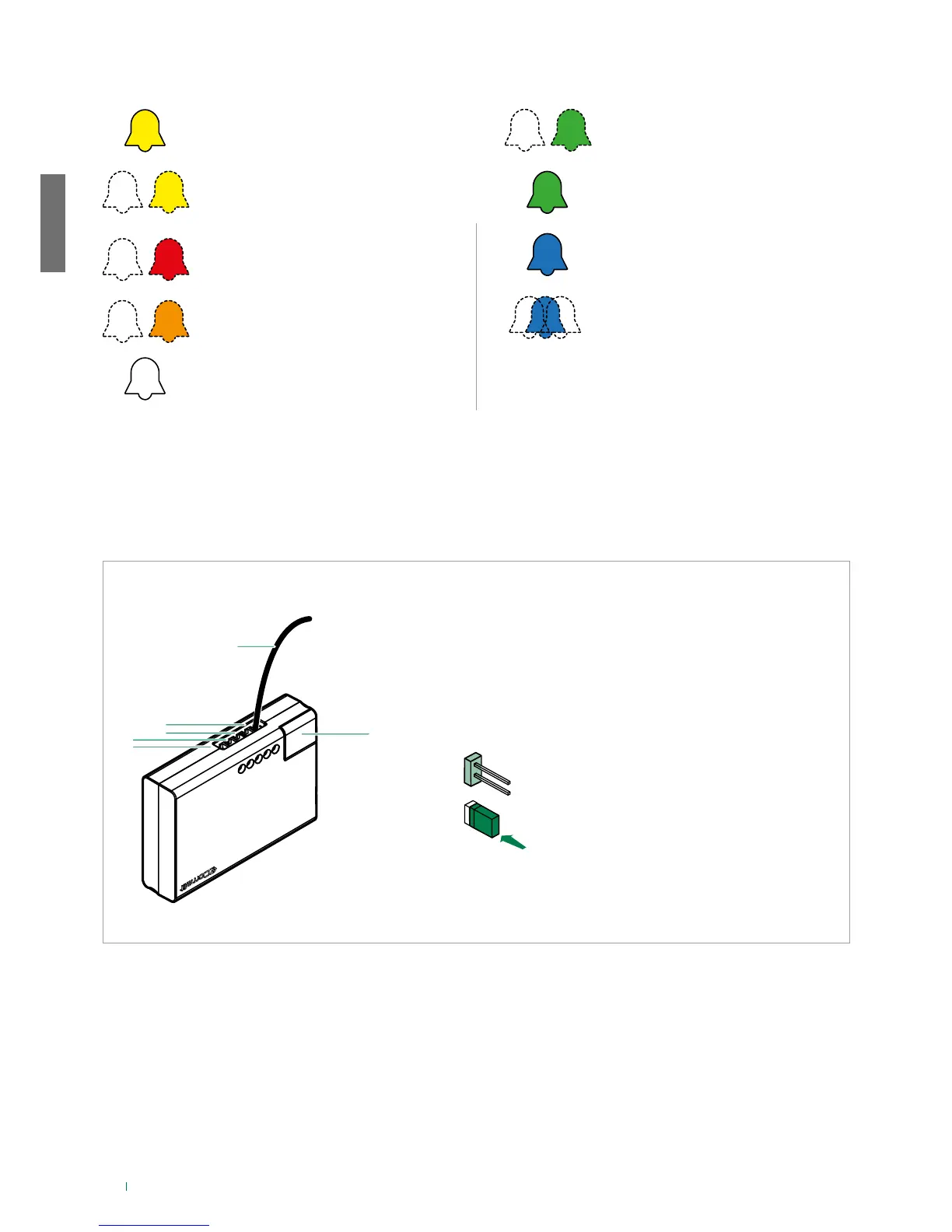

LED guide
Start
Call in progress
Door opening Conversation in progress
Wi-Fi search
Wi-Fi not available
Loss of Wi-Fi connection
Updating in progress
Connected to Wi-Fi
Not connected to the server
Access Point mode
Standby mode
Art. 3522
1.
2.
3.
4.
1.
~ T
Power supply input 12 - 20V AC from transformer
2. + - Power output for Visto
3. F / R Cable Front/Rear
4. Jumper to select the doorbell chime type
If the existing chime is ELECTRONIC and it requires a
DIODE WIRED IN PARALLEL TO THE BUTTON, then
install the jumper.
Dimensions: mm 59 x 14 x 40
(Default) For MECHANICAL bell
Description
Wiring diagrams
Refer to the dedicated section.
