Recirculation Mode:
•
•
Install deflector according to your installation environment.

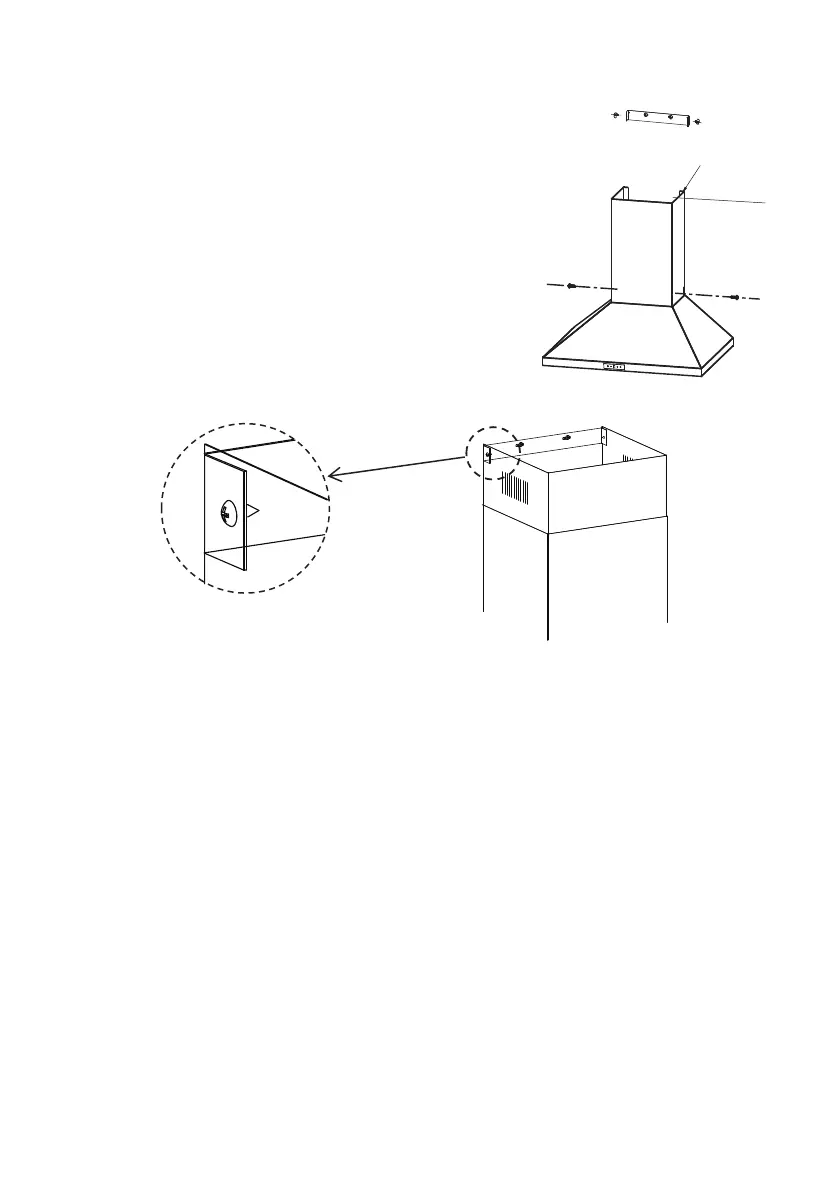

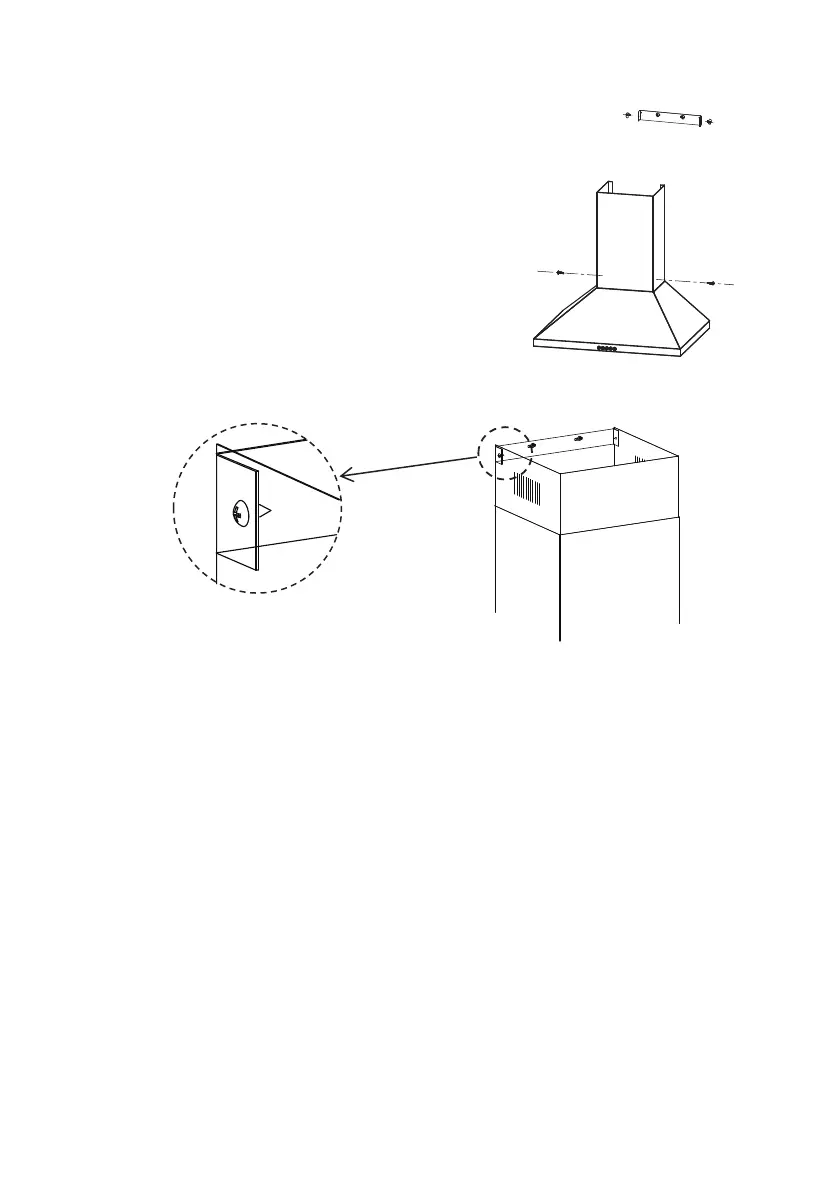

Install Upper Decorative Chimney :
• Install Chimney mounting bracket (21) at
holes previously marked on level D.
• Slide the upper decorative chimney 2.2 up to
the horizontal line D.
• Insert 2 small sheet metal screws into the
sides of the bracket to secure the Upper
Decorative Chimney.
21
D
Install Carbon Filters.
12
B. Non-Vented / Recirculation Installation
Fix the upper chimney onto the bracket 21 with 2 screws 12 (0.17'' x 0.37'') supplied with the hood.
