INSTALLATION PREPARATION
1. SELECT INSTALLATION TYPE
A. Vented Installation
B. Non-Vented / Recirculation Installation
Roof Discharge
This canopy hood is designed for venting through the roof or wall.
A 6" round vent system is needed for installation (not included). The hood
exhaust opening is 6" round.
Vent system can terminate either through the roof or wall.
To vent through a wall, a 90° elbow is needed.
Rear Discharge
A 90° elbow may be installed immediately above the hood.
If it is not possible to vent cooking fumes and vapors to the outside, the hood
can be used in the non-vented (recirculating) version, fitting a charcoal filter
and the deflector (not included, you can decide whether to use according to
your installation environment). Fumes and vapors are recycled through the top
grille.
Non-Vented
(Recirculating)

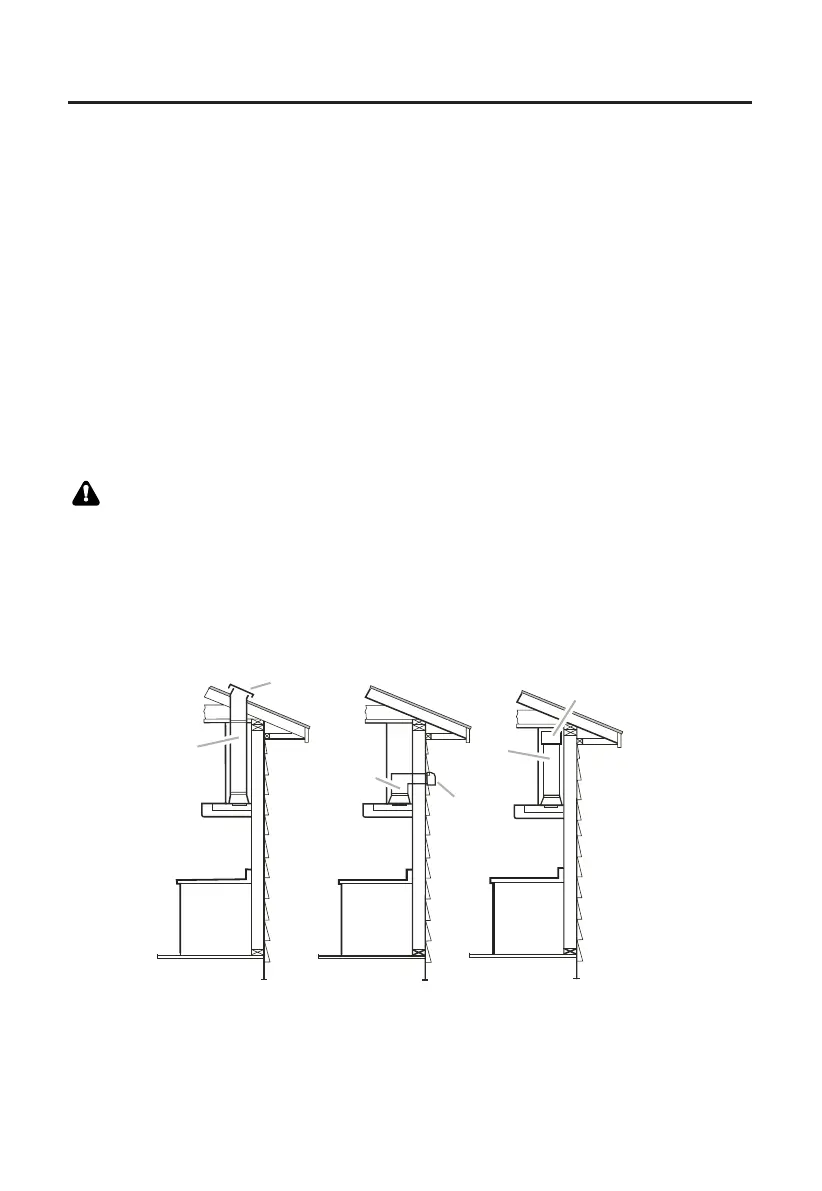

Wall VentingRoof Venting
A
A
B
B
B
A
A. Deflector
B. 6" round vent
A. Wall cap
B. 6" round vent
A. Roof cap
B. 6 round vent
Local building codes may require the use of makeup air systems when using ventilation
systems greater than specified CFM of air movement. The specified CFM varies from locale
to locale. Consult your HVAC professional for specific requirements in your area.
A. Vented Installation
WARNING
TO REDUCE THE RISK OF FIRE, USE ONLY METAL DUCTWORK.
4
