ComfortStar CPP009CD - Page 8

Lean over 1/50
Pump-pipe clasp
(the fittings)
Fig.5-15
Fig.5-16
All the pictures in this manual are for explanation purpose only.
They may be slightly different from the air conditioner you
purchased(depend on model).The actual shape shall prevail.
NOTE
installation manual
7
Test cap
C
L
O
S
E
D
O
P
E
N
C
L
O
S
E
D
O
P
E
N

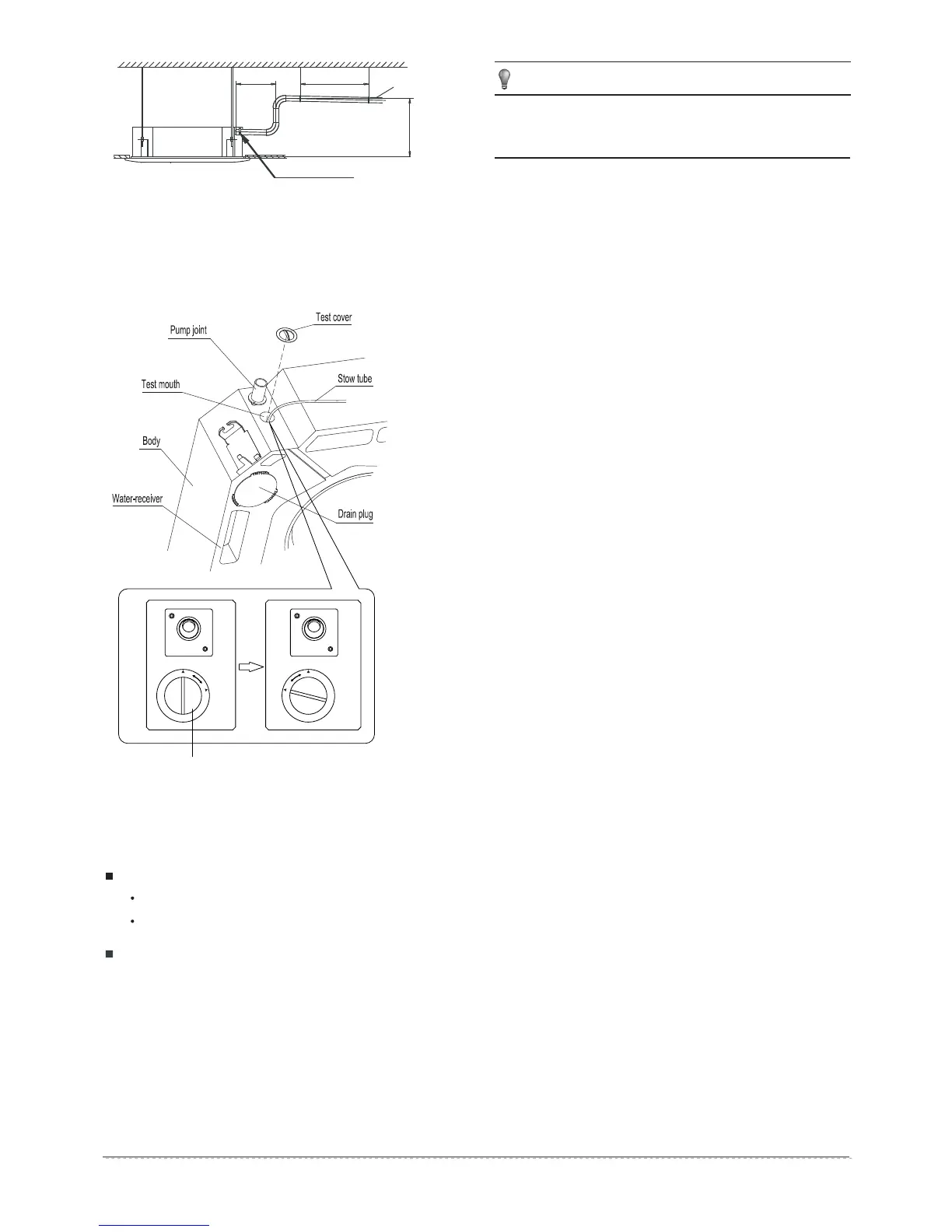

Drainage test Drainage test
Check whether the drainpipe is unhindered.
New built house should have this test done before paving
the ceiling.
The unit with pump.
Remove the test cover, and stow about 2000ml water to the
water pan.
1
Operate the air conditioner in "COOLING" mode. The sound of
the drain pump shall be heard. Check whether the water is
discharged well (1 min lag is possible, according to the length of
the drain pipe), and check whether the water leaks from the
joints.
2
Power off the air conditioner and recover the cap.
3
<19.7inch
3.3-4.9ft
< 29.5inch
