to 30 unit.
to 60 unit.
The original air outlet with the same direction of duct should
be sealed In case of two duct connection.
The air volume in one duct is around 200-260m3/h for model
18 to 30 unit.
The air volume in one duct is around 300-500m3/h for model
36 to 60 unit.
The original air outlet with the same direction of duct should
be sealed.
Fig.5-19
Fig.5-18
One-way
Two - way
In case of one duct connection
In case of two duct connection
NOTE
Fig.5-17

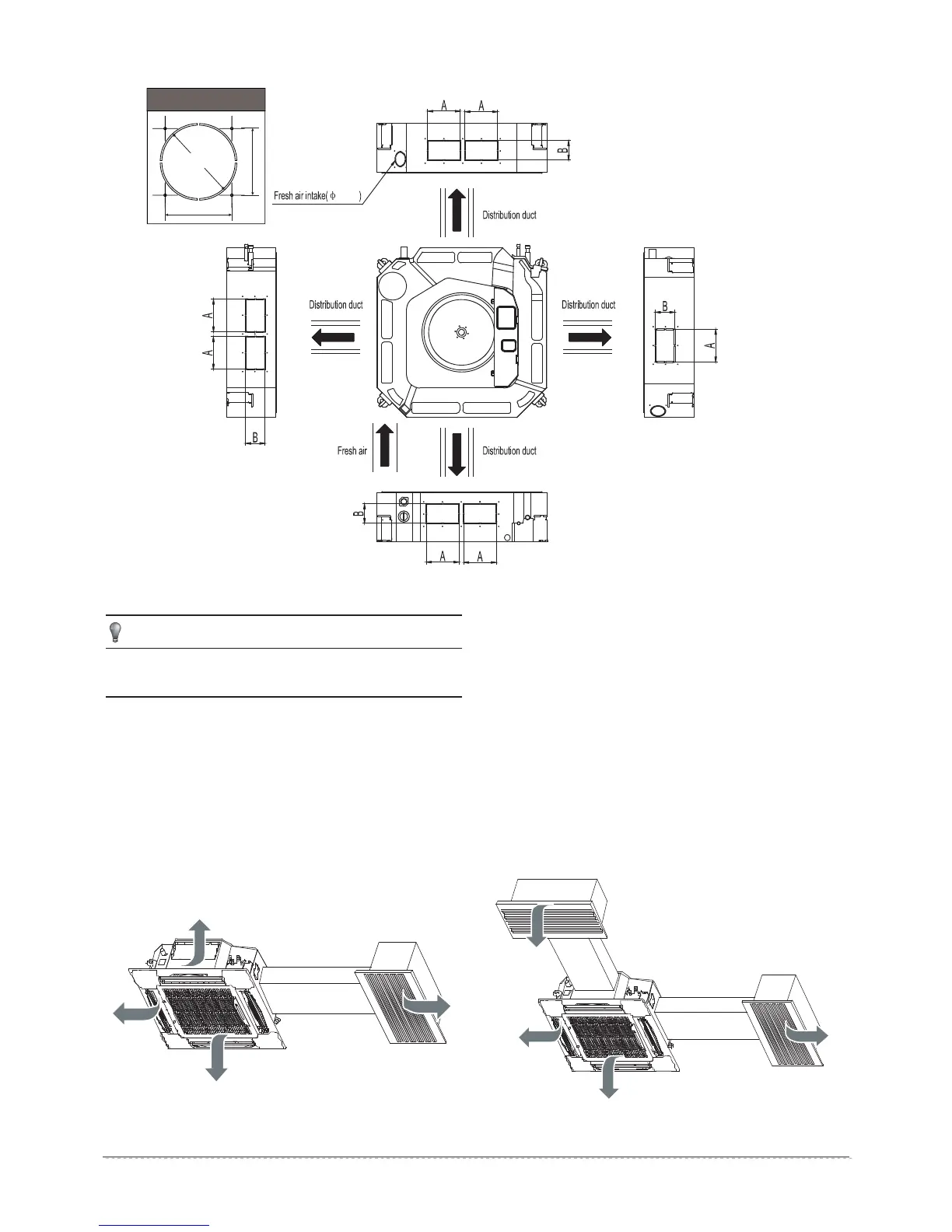

5.4 Install the distribution duct
Conditioned air can be distributes by means of a distribution duct.
8
installation manual
MODLE
Ø3in
3.15inch
3.15inch
3 in
model 24K Series A=6.3inch; Series B=3inch
model 36K,48K Series A=6.3inch; Series B=3.7inch
The max. length of duct is 6.6ft.
The air volume in duct is around 400-640m3/h for model 36
The air volume in duct is around 300-360m3/h for model 18
The max. length of duct is 4.9ft for one duct.
