Comica LinkFlex AD3 - Device Components and Operation Guide; Component Identification

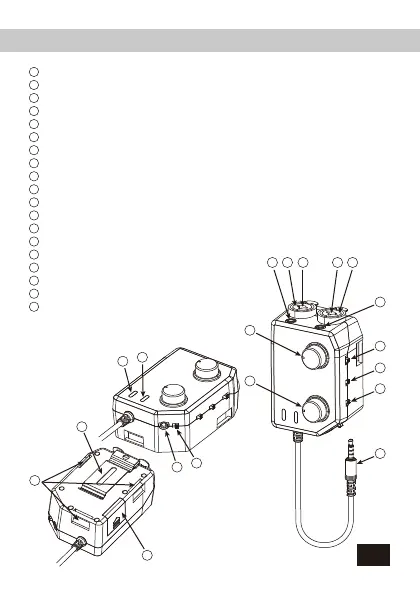

Components and Instruction
Magic-tape Fixing Slot
Belt Clamp
Battery Cover
Phantom Power Indicator Light
Power Indicator Light
3.5mm Audio Monitor Output Jack
Phone / Mic Monitor Switch
Right Gain-Control Knob
Left Gain-Control Knob
Left 3.5mm Mono Audio Input Jack
Left XLR Mono Audio Input Jack
Left 6.35mm Mono Audio Input Jack
Right 6.35mm Mono Audio Input Jack
Right XLR Mono Audio Input Jack
Right 3.5mm Mono Audio Input Jack
Power / Phantom Power Switch
Phone / Camera Audio Output Switch
Mono/Stereo Switch
3.5mm Audio Output Plug
