TPA 250 FUSE PANEL
SETUP AND OPERATION MANUAL
OPERATION - PAGE 9
Section 5: Operation

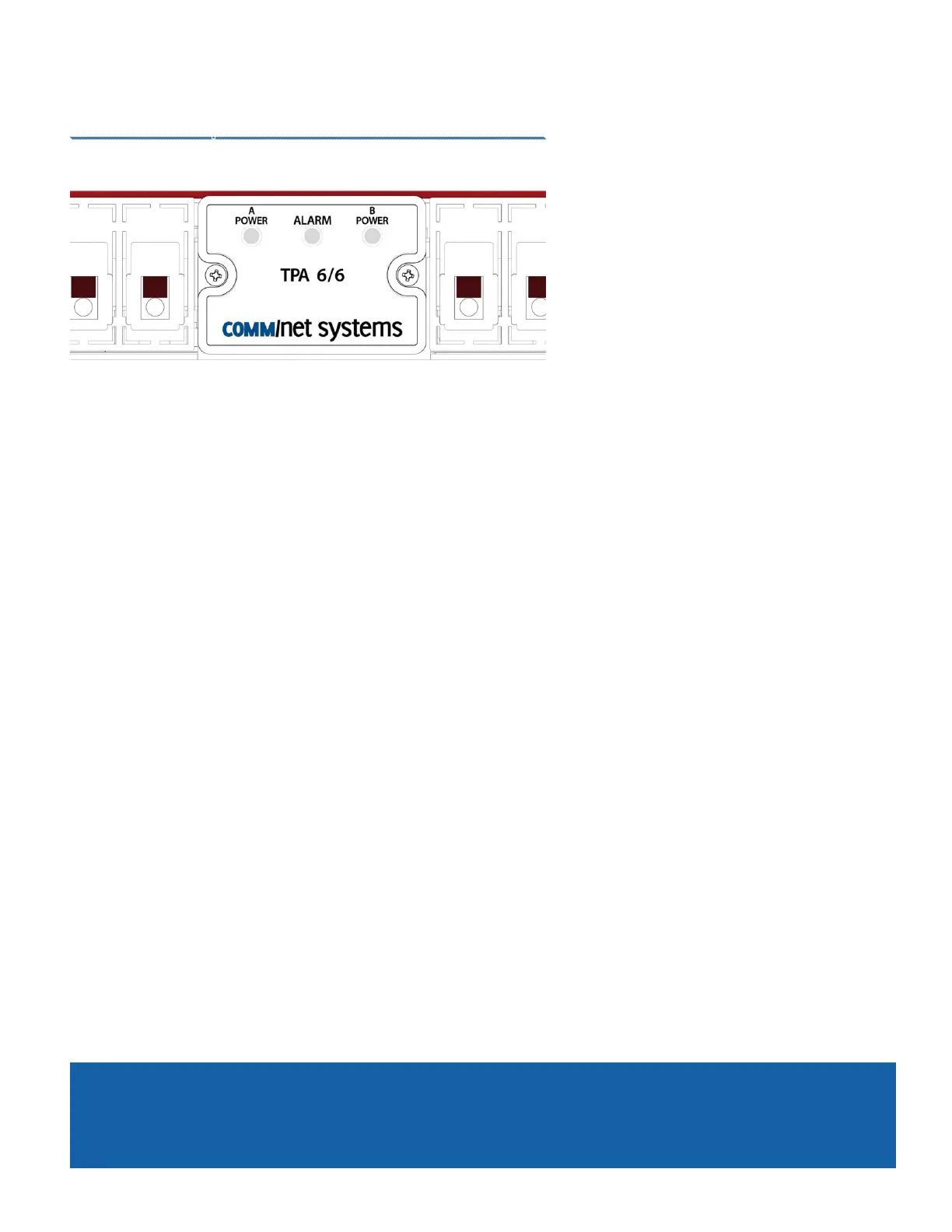

5.1 LED Display
Modules with the LED display include three indicators: A Power, B Power, Alarm.
5.1.1 A Power LED
The A Power LED will light up when power is present on the A input bus.
5.1.2 B Power LED
The B Power LED will light up when power is present on the B input bus.
5.1.3 Alarm LED
The Alarm LED will light up if a fuse is blown.
