HOME
After login, home page will be showed. This page will show device Information like CPU
Usage, Memory Usage, LAN/WAN Information like IP Mode Get IP From
AC/Gateway/Static, Status with 2G Wi-Fi Clients Status with information like SSID,
Channel, Bandwidth, Encrypt, MAC Address, Operation Mode configure like AP/ Fat AP
Mode with Uptime, Flow in bps for APO downstream and APO Up stream. All information
can help to troubleshoot network issue, if any very easily.

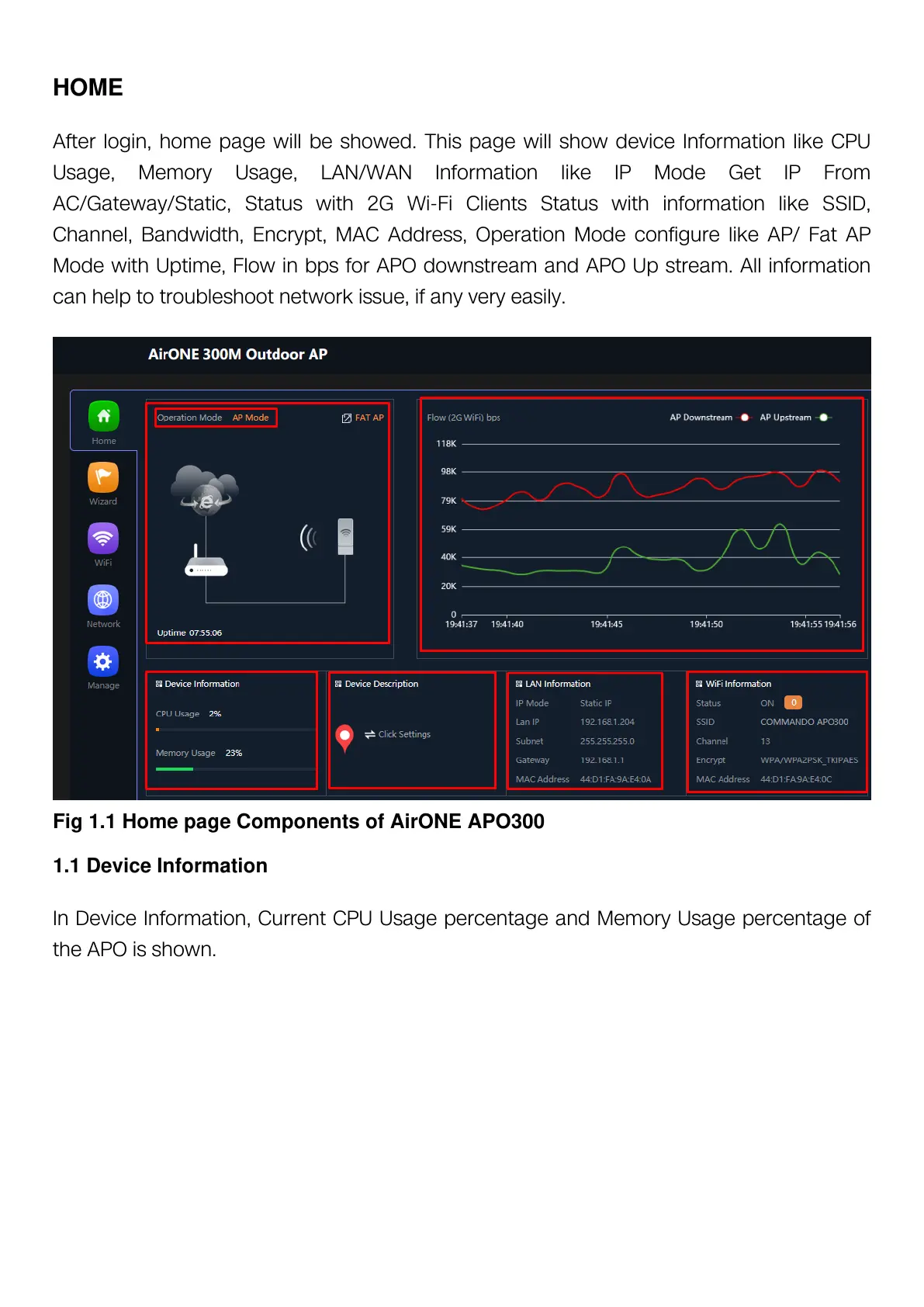

Fig 1.1 Home page Components of AirONE APO300
1.1 Device Information
In Device Information, Current CPU Usage percentage and Memory Usage percentage of
the APO is shown.
