OVERVIEW
COMMANDO AirONE series Outdoor APO enables communication between wireless and
wired computers/laptops and mobile devices in the network. It complies with IEEE
802.11b/g/n standard and comes with single band 2.4GHz along with build in High Gain
5dBi Omni Antenna, Separate WAN 10/100Mbps port along with 24V POE & LAN
10/100Mbps port along with IP65 casing. It has a wireless speed of up to 300Mbps with
input power 1000mW which support up to 400 meters and above for wireless clients with
5 in 1 mode of operation like AP, Gateway, WISP, Super WDS Mode, Repeater with
maximum 64, recommended 50 wireless clients at a time.

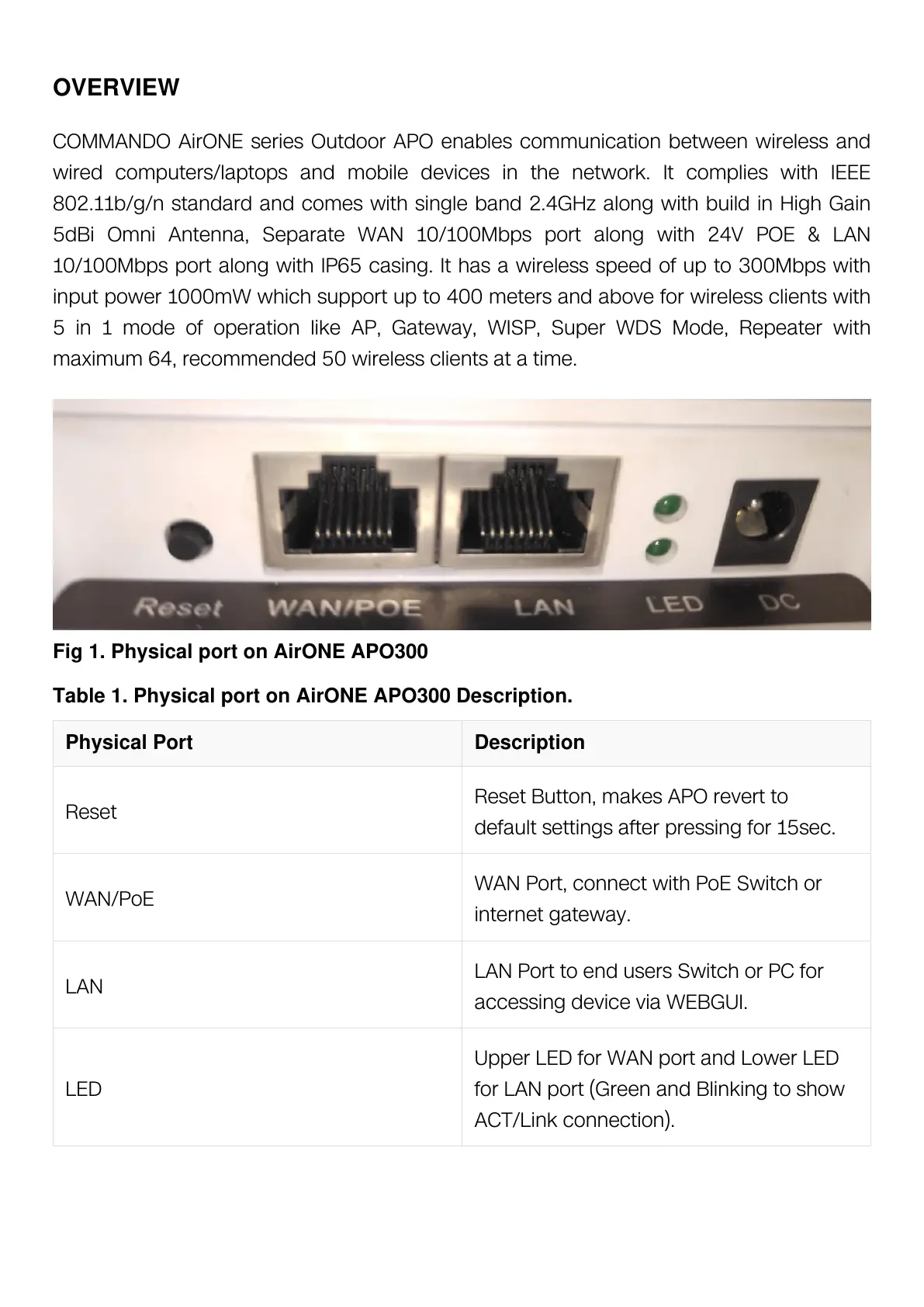

Fig 1. Physical port on AirONE APO300
Table 1. Physical port on AirONE APO300 Description.
Physical Port Description
Reset
Reset Button, makes APO revert to
default settings after pressing for 15sec.
WAN/PoE
WAN Port, connect with PoE Switch or
internet gateway.
LAN
LAN Port to end users Switch or PC for
accessing device via WEBGUI.
LED
Upper LED for WAN port and Lower LED
for LAN port (Green and Blinking to show
ACT/Link connection).
