Assembly of Machine
Note:
1) Adjusting the focus is a necessary prerequisite for laser engraving, please press the “Auto” button or manually move
the laser head to adjust focus after placing the engraving material
2) Make sure to remove the plastic protective cover of the field lens before engraving to avoid damage to the field lens
caused by laser burning.

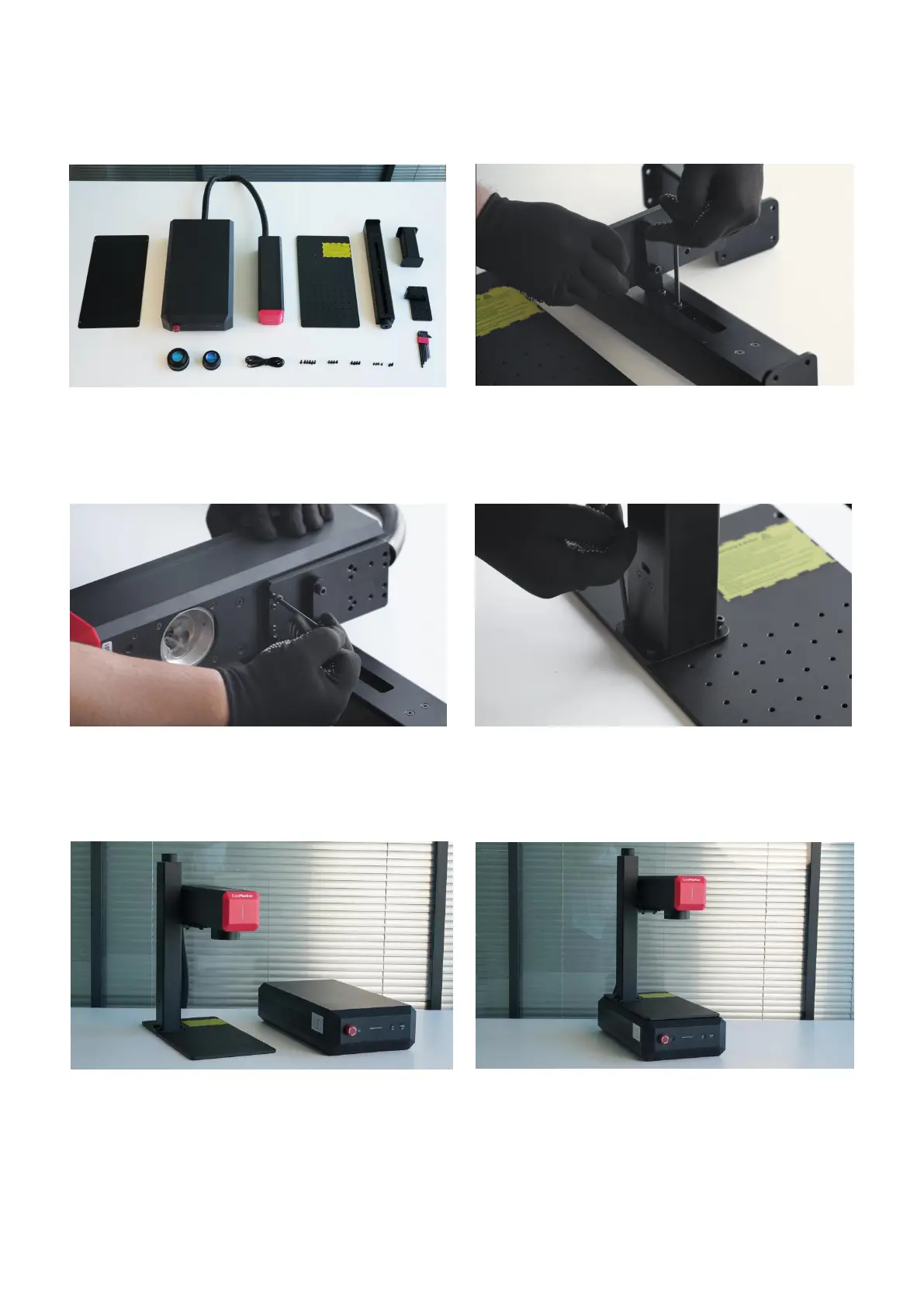

1. Place the parts on the table
2. Fix the supporting shelf onto the supporting pole
3. Put the laser head on the supporting shelf
and fasten the screws to fix the laser head
4. Fasten the supporting pole with the screws
5. Put the split machine on the table. The
machine can be used at this state.
6. It can also be assembled as an integrated
machine with screws
