Commax CM-810M User Manual

8
- Make wiring distance between first unit of CM-810M and power
supply unit within 1 meter.
- Place every CM-810M from first unit to tenth unit, putting them by
20 meters respectively between every unit.
- Turn on second power supply unit, connecting it to fifth CM-810M
Unit, which is placed in middle of this structure.
- Wire fifth CM-810M unit by placing it from power unit within 1 meter.
- Turn on third power unit connecting it to the last CM-810M.
- Wire power unit with the last CM-810M within 1 meter.
1) Master between master communication.
2) Nice voice quality.
3) Hands-free communication.
4) High degree of sensitivity.
5)
Privacy function prevents eavesdropping from others in the intercom system.
6) Offered with 3-call, 5-call channels(supporting up 6, or 10 stations).
7) Notify you of incoming calls with an electronic tone and an LED that
indicates calling station.
8)
Build your system with one or more master stations up to 10stations.
!

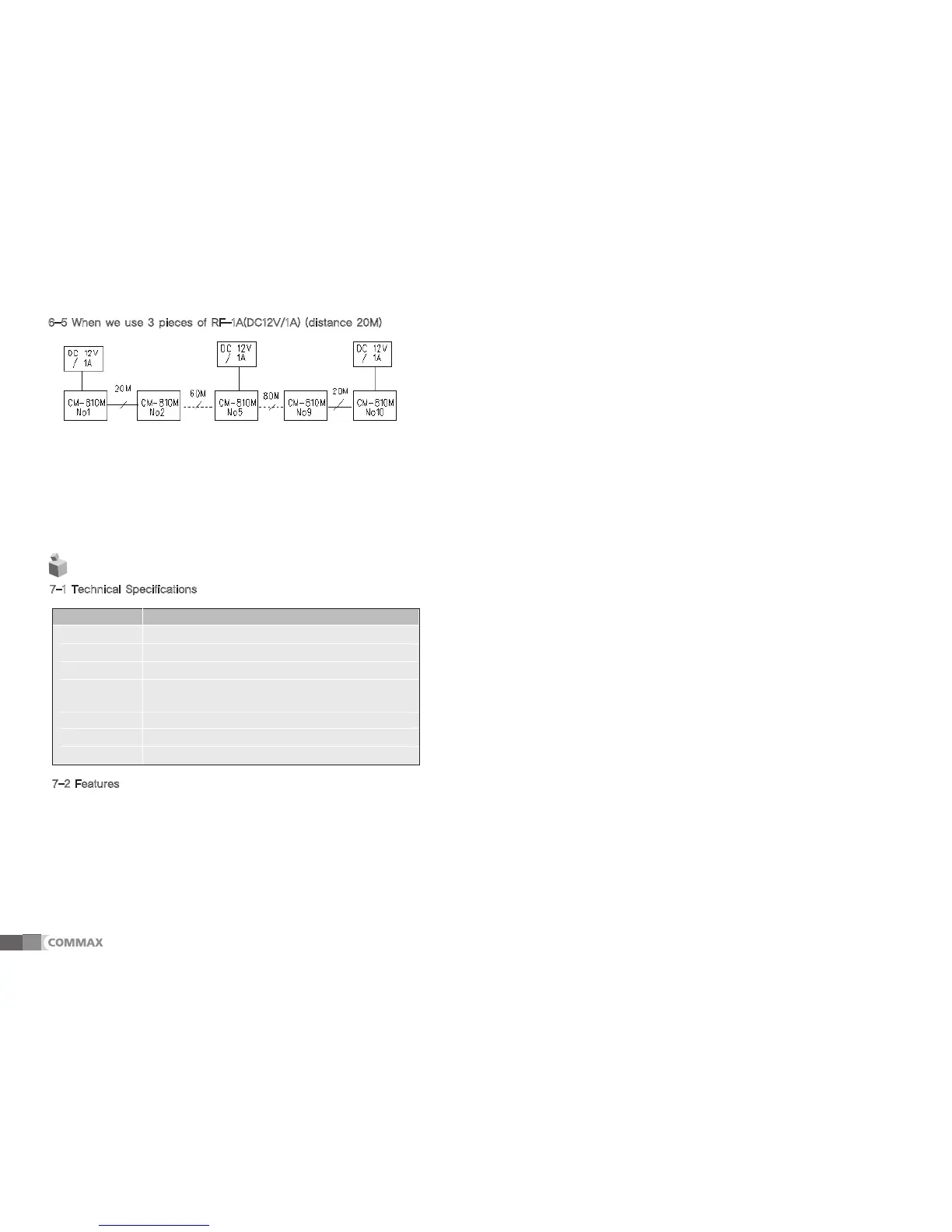

6-5 When we use 3 pieces of RF-1A(DC12V/1A) (distance 20M)
- Make wiring distance between first unit of CM-810M and power supply unit within 1 meter.
- Place every CM-810M from first unit to tenth unit, putting them by 20 meters respectively
between every unit.
- Turn on second power supply unit, connecting it to fifth CM-810M Unit, which is placed in
middle of this structure.
- Wire fifth CM-810M unit by placing it from power unit within 1 meter.
- Turn on third power unit connecting it to the last CM-810M.
- Wire power unit with the last CM-810M within 1 meter.
Please read carefully this manual before submitting defect statement.
Please check all states of products, and if you find any defects, please contact A/S Center.
We will do our best to serve you.
7. Service info
ხႜౘ ); ໠ሽၡ
6-5 When we use 3 pieces of RF-1A(DC12V/1A) (distance 20M)
7-1 Technical Specifications
7-2 Features
7. Specifications and features
Item Description
Wire CM-810M : 14 wires (Talking 10 wires, Power 2 wires, L & L1)
Power Source DC12V 1A / RF-1A
Transmission way Half duplex communication
Display Unit FND
Power Consumption Stand by : 50mA
Maximum : 100mA
Communication Maximum 200m (Ø0.65mm)
Distance

Commax CM-810M Specifications

General

Brand	Commax
Model	CM-810M
Category	Intercom System
Language	English
