6
5. Wiring

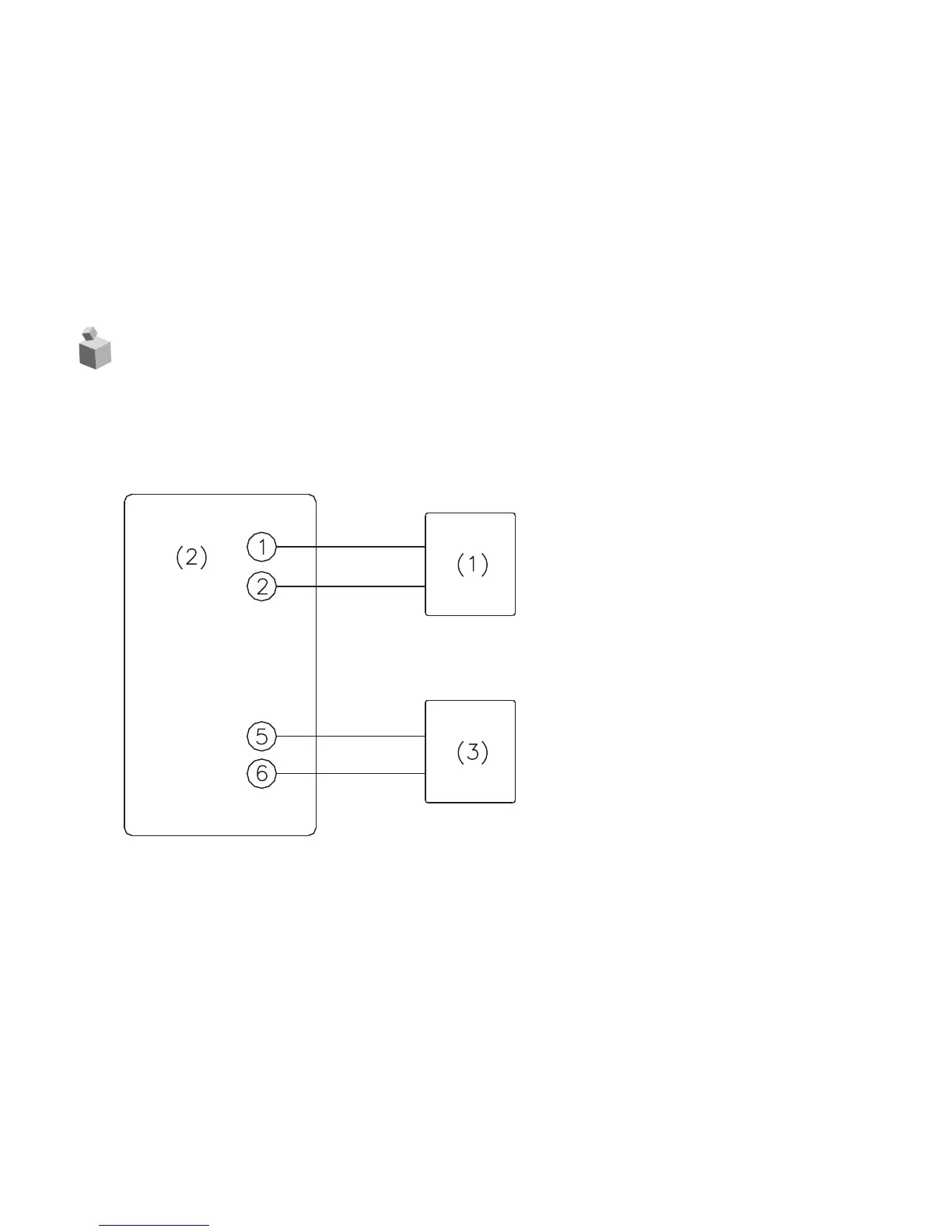

① Connect two wires of door station (1) to the terminal ①, ② of room-station (2).
②
Connect electrical door-lock(3) to the terminal ⑤, ⑥ as below picture.
③
When finished the connection, put in the power cord at AC outlet.
