3
1.
Align holes on the wall where the unit is
to be installed with mounting brackets hole
and secure.
FIG-2 : Install the unit at a perpendicular
2.
Wire the household door phone cables as
shown below with matched polarity as
picture below[FIG-1]
(#1:RED/VOICE, #2:YELLOW/GND
3.
4.
Tighten using bolts and a wrench, then
3.

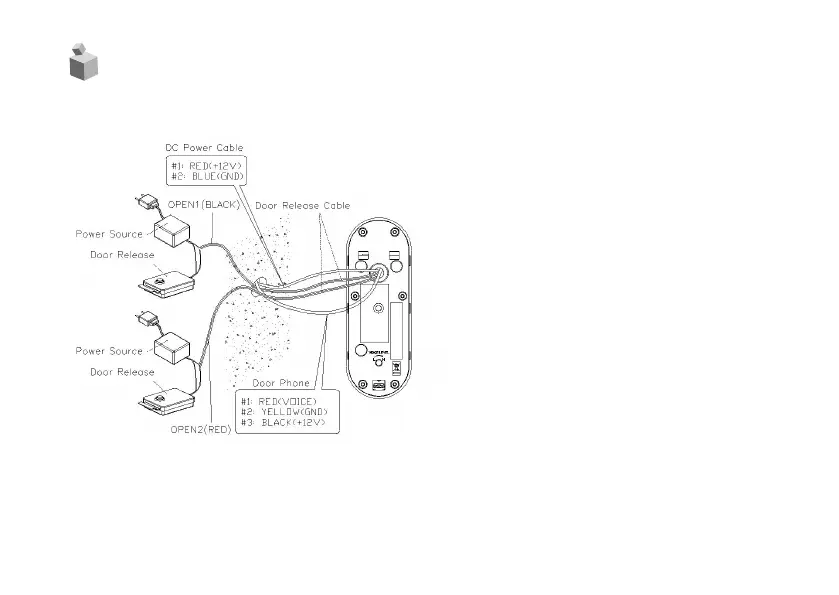

Wiring & Installation
[FIG-1]
angle to the front
#3:BLACK/DC12V
Wire the door release cable as shown in
the diagram.[FIG-1]
cover using the AL. screw covers.
