카메라
고정 스크류
현관카메라 벽걸이 브라켓
현관카메라 벽걸이 브라켓
고정 스크류
QTpQPp
QRpXpRp TpSpUpVp
5. Specification
Wiring 4 wires(polarity)to a monitor
2 wires(non-polarity)to a electric door lock
NTSC or PAL STANDARD.
Angle Adjustment
Upward 13°
Rated Voltage 12V (Supplied from monitor)
Sensor Type
C-MOS (COLOR) - CVBS
Transmission
Simultaneous communication
Minimum Illumination 0.1 Lux(within300mm)
LED Embedded LED(Night working)
Effective Viewing Angle
68°(H), 50°(V)
Operating Temperature
-10°C ~ +40°C
Dimension (mm)
99.8(W)×142.4(H)×35.2(D)
Diameter(pie) Ø0.5 Ø0.65 Ø0.8 Ø1
Distance(meter) 28m 50m 70m 115m
Model No.
DRC-4LN
Distance between a door
camera and monitor
Video Transmission
Standard

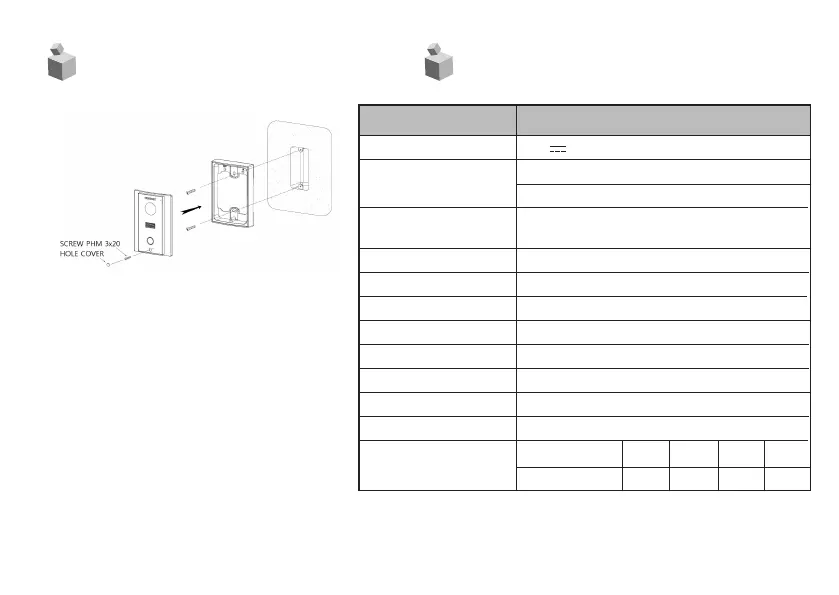

4. Installation
1. Fix a bracket on a wall with screws
2. Match and connect monitor line
3. Connect the Door Release Connection Line
4. Put a door camera unit into a wall bracket
5. Tighten a screw at the bottom side of a door
camera.
