INSTALLATION INSTRUCTIONS
MOUNTING INSTRUCTIONS
– Do not place the device in areas where it may become wet or damp,
and avoid overly dusty, humid and high temperature environments.
– For installing the Intercom station, the following mount kits are
available separately: ID8 DK, ID8 SH, ID8 FB.
– Do not install the Intercom station on unstable walls or on surfaces,
which cannot support the device’s weight.
– Make sure the mount kit is not subject to torsional forces (e.g. on
uneven walls).
– No water may penetrate into the surface mount kit ID8 SH or the
gypsum wall/panel mount kit ID8 FB. Therefore, make sure the
mounting kit is waterproof (towards the wall).
– Use moistened microfibre cloths for cleaning the Intercom station.
SAFETY INSTRUCTIONS
– This device shall be installed or replaced by trained and qualified
personnel only.
– Only use recommended tools when installing the device.
– Observe the country-specific standards for installation, mounting
and configuration.
– All connected circuits shall fulfil the following requirements:
– Safety Extra Low Voltage (SELV) and Limited Power Source
(LPS) according to IEC/EN 60950-1 or
– ES1, PS2 circuits and Annex Q (Limited Power Source) according
to IEC/EN/UL 62368-1
– Only accessories that comply with the device’s technical
specifications shall be used.
– Use shielded Ethernet cables only.
– Do not make any unauthorised modifications to the device.
– The front of the Intercom station is made of glass. Do not use the
Intercom station when the glass is damaged.
– This equipment has been tested and found to comply with the limits
for a Class B digital device, pursuant to part 15 of the FCC Rules.
These limits are designed to provide reasonable protection against
harmful interference in a residential installation. This equipment
generates, uses and can radiate radio frequency energy and, if not
installed and used in accordance with the instructions, may cause
harmful interference to radio communications. However, there is no
guarantee that interference will not occur in a particular installation.
If this equipment does cause harmful interference to radio or
television reception, which can be determined by turning the
equipment o and on, the user is encouraged to try to correct the
interference by one or more of the following measures:
– Reorient or relocate the receiving antenna.
– Increase the separation between the equipment and receiver.
– Connect the equipment into an outlet on a circuit dierent from
that to which the receiver is connected.
Consult the dealer or an experienced radio/ TV technician for help.
NOTE: ACCESSIBILITY
– For a barrier-free accessibility, it is recommended to mount the
Intercom station with sucient distance to walls or corners.

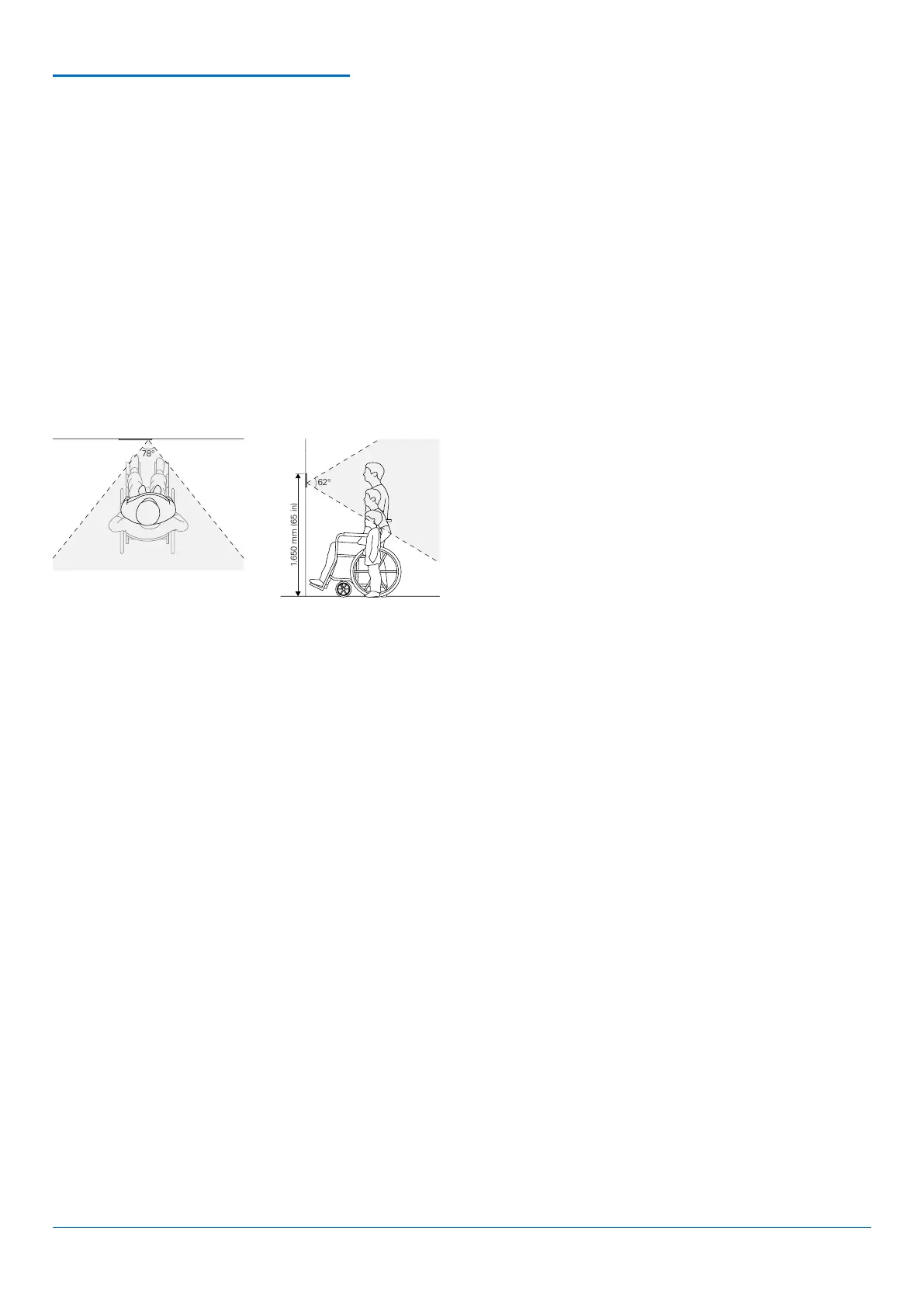

– When mounting the Intercom station ID8 TD CM, pay attention to
the correct camera angle in terms of accessibility so that wheelchair
users and children can be detected by the camera:
62° (vertical) x 78° (horizontal)
RECOMMENDED MOUNTING HEIGHT
The upper edge of the Intercom station approx. 1,650 mm (65 in) from
the finished floor. Adapt the mounting height to the individual needs.
