id8 data sheet – V1.0/1023 commend.com P 8 / 12Subject to change without notice.

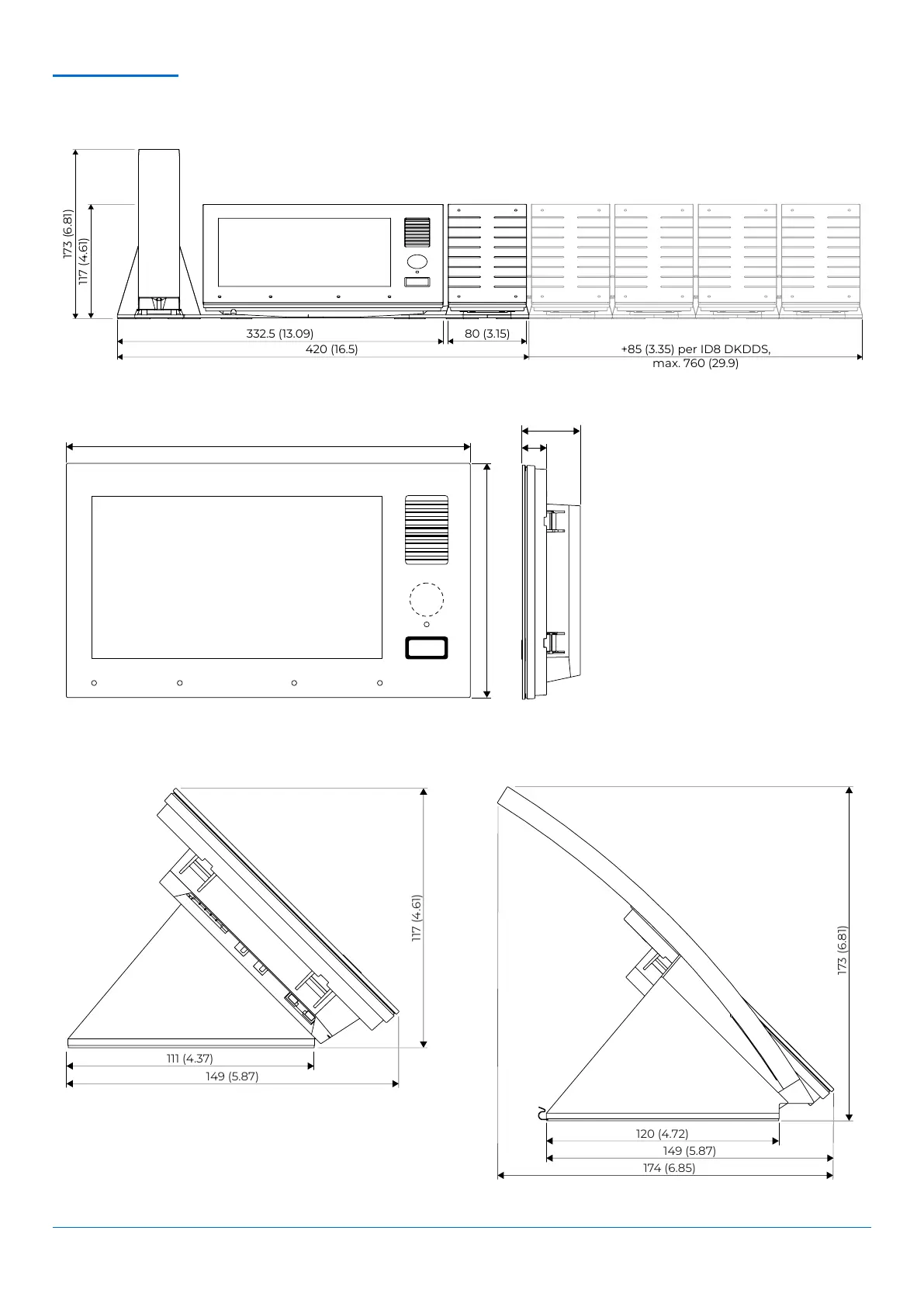

DIMENSIONS
ID8 FULL WIDTH SETUP, WITHOUT GOOSENECK MICROPHONE
Measuring units in mm (in), not to scale!
332.5 (13.09)
80 (3.15)
420 (16.5)
+85 (3.35) per ID8 DKDDS,
max. 760 (29.9)
173 (6.81)
117 (4.61)
245 (9.65)
142 (5.59)
ID8 TD/ID8 TD CM
Measuring units in mm (in), not to scale!
35 (1.38)
16 (0.63)
ID8 TD/ID8 TD CM WITH DESK KIT ID8 DK
Measuring units in mm (in), not to scale!
117 (4.61)
111 (4.37)
149 (5.87)
ID8 TD/ID8 TD CM WITH DESK KIT ID8 DK AND
HANDSET WITH DESK KIT ID8 DKHS
Measuring units in mm (in), not to scale!
149 (5.87)
120 (4.72)
174 (6.85)
173 (6.81)
