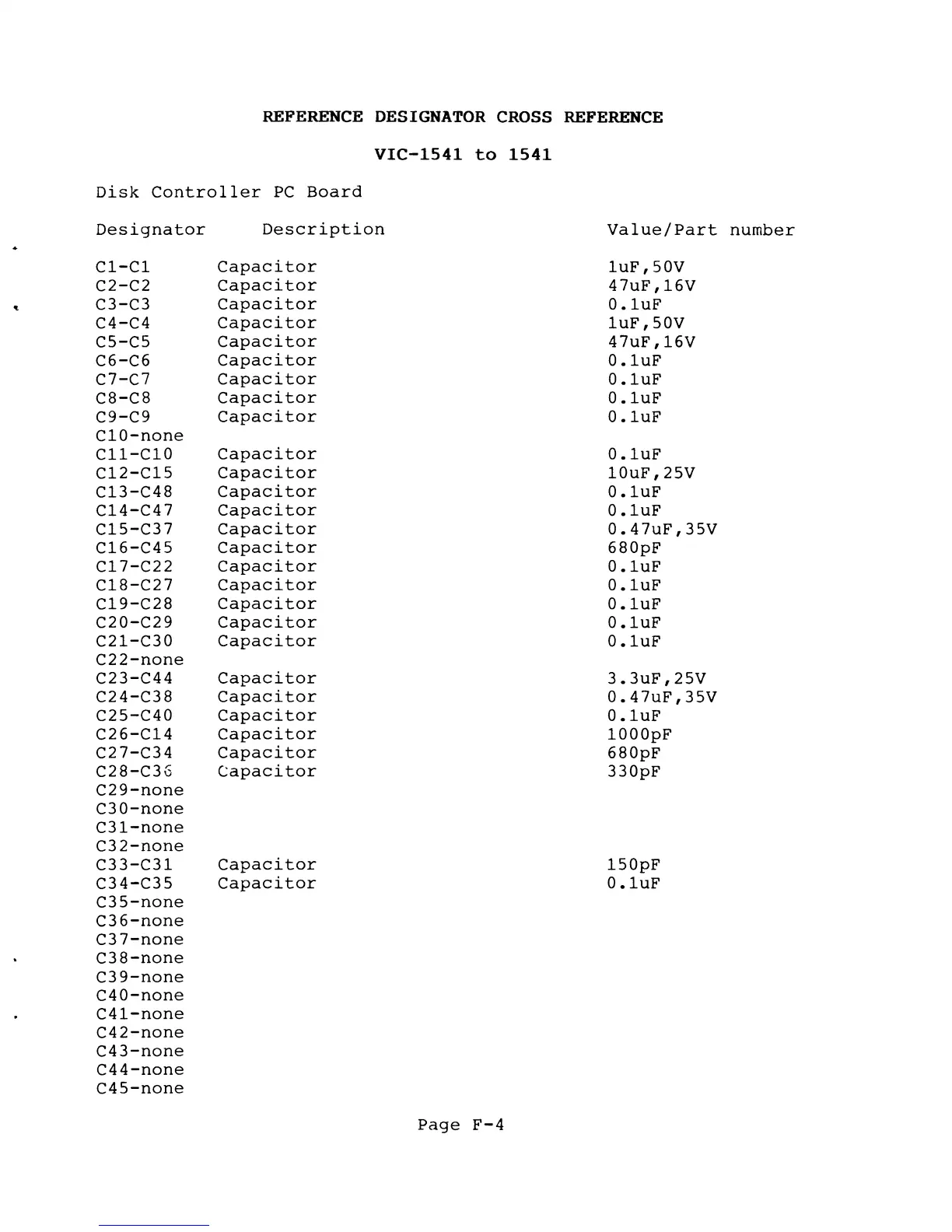

REFERENCE DESIGNATOR CROSS REFERENCE
VIC-1541 to 1541
Disk Controller PC Board
Designator
Description
Value/Part
Cl-Cl
Capacitor luF,50V
C2-C2
Capacitor 47uF,16V
C3-C3
Capacitor
O.luF
C4-C4
Capacitor
luF,50V
cs-cs
Capacitor
47uF,16V
C6-C6
Capacitor
O.luF
C7-C7
Capacitor
O.luF
C8-C8
Capacitor
O.luF
C9-C9
Capacitor
O.luF
ClO-none
Cll-ClO
Capacitor
O.luF
Cl2-Cl5
Capacitor 10uF,2SV
Cl3-C48
Capacitor
O.luF
Cl4-C47
Capacitor
O.luF
ClS-C37
Capacitor 0.47uF,35V
Cl6-C45
Capacitor
680pF
Cl7-C22
Capacitor
O.luF
Cl8-C27 Capacitor
O.luF
Cl9-C28 Capacitor
O.luF
C20-C29 Capacitor
O.luF
C21-C30 Capacitor
O.luF
C22-none
C23-C44 Capacitor
3.3uF,25V
C24-C38
Capacitor
0.47uF,3SV
C2S-C40
Capacitor
O.luF
C26-Cl4 Capacitor
lOOOpF
C27-C34
Capacitor
680pF
C28-C36
Capacitor
330pF
C29-none
C30-none
C31-none
C32-none
C33-C31 Capacitor 150pF
C34-C35
Capacitor O.luF
C35-none
C36-none
C37-none
C38-none
C39-none
C40-none
C41-none
C42-none
C43-none
C44-none
C45-none
Page F-4
