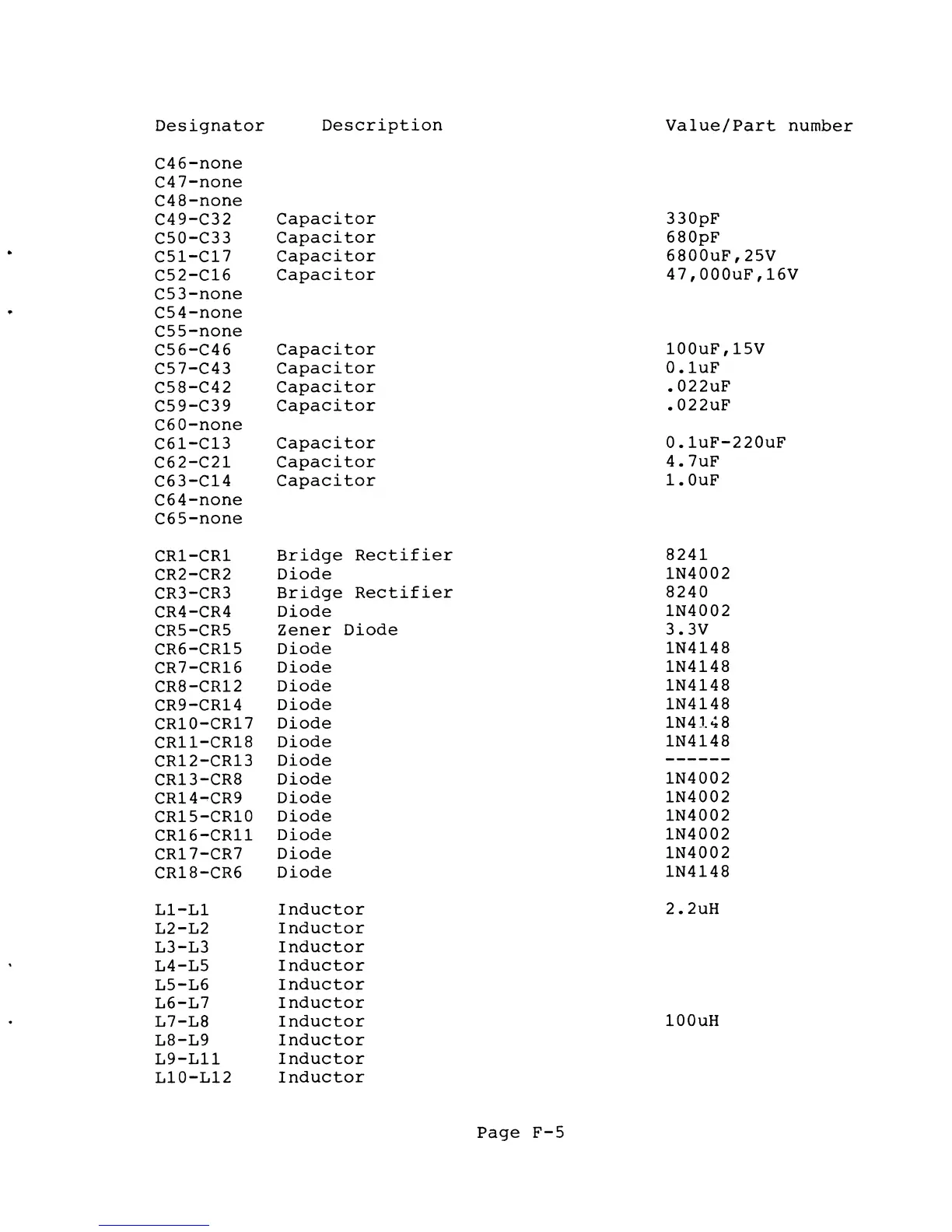

Commodore 1541 - Page 29

Designator
Description
Value/Part number
C46-none
C47-none
C48-none
C49-C32
Capacitor
330pF
C50-C33
Capacitor
680pF
•
C51-C17
Capacitor
6800uF,25V
C52-C16
Capacitor
47,000uF,16V
C53-none
C54-none
CSS-none
C56-C46
Capacitor
100uF,15V
C57-C43
Capacitor
O.luF
C58-C42
Capacitor
.022uF
C59-C39
Capacitor
.022uF
C60-none
C61-C13
Capacitor
O.luF-220uF
C62-C21
Capacitor
4.7uF
C63-Cl4
Capacitor
l.OuF
C64-none
C65-none
CRl-CRl
Bridge Rectifier
8241
CR2-CR2
Diode
1N4002
CR3-CR3
Bridge Rectifier
8240
CR4-CR4
Diode
1N4002
CR5-CR5
Zener
Diode
3.3V
CR6-CR15
Diode
1N4148
CR7-CR16
Diode
1N4148
CR8-CR12
Diode
1N4148
CR9-CR14
Diode
1N4148
CR10-CR17
Diode
1N4J..;8
CR11-CR18
Diode
1N4148
CR12-CR13
Diode
------
CR13-CR8
Diode
1N4002
CR14-CR9
Diode
1N4002
CR15-CR10
Diode
1N4002
CR16-CR11 Diode
1N4002
CR17-CR7
Diode
1N4002
CR18-CR6 Diode
1N4148
Ll-Ll
Inductor
2.2uH
L2-L2
Inductor
L3-L3
Inductor
L4-L5 Inductor
L5-L6
Inductor
L6-L7 Inductor
L7-L8
Inductor
lOOuH
L8-L9
Inductor
L9-Lll Inductor
L10-L12
Inductor
Page F-5
