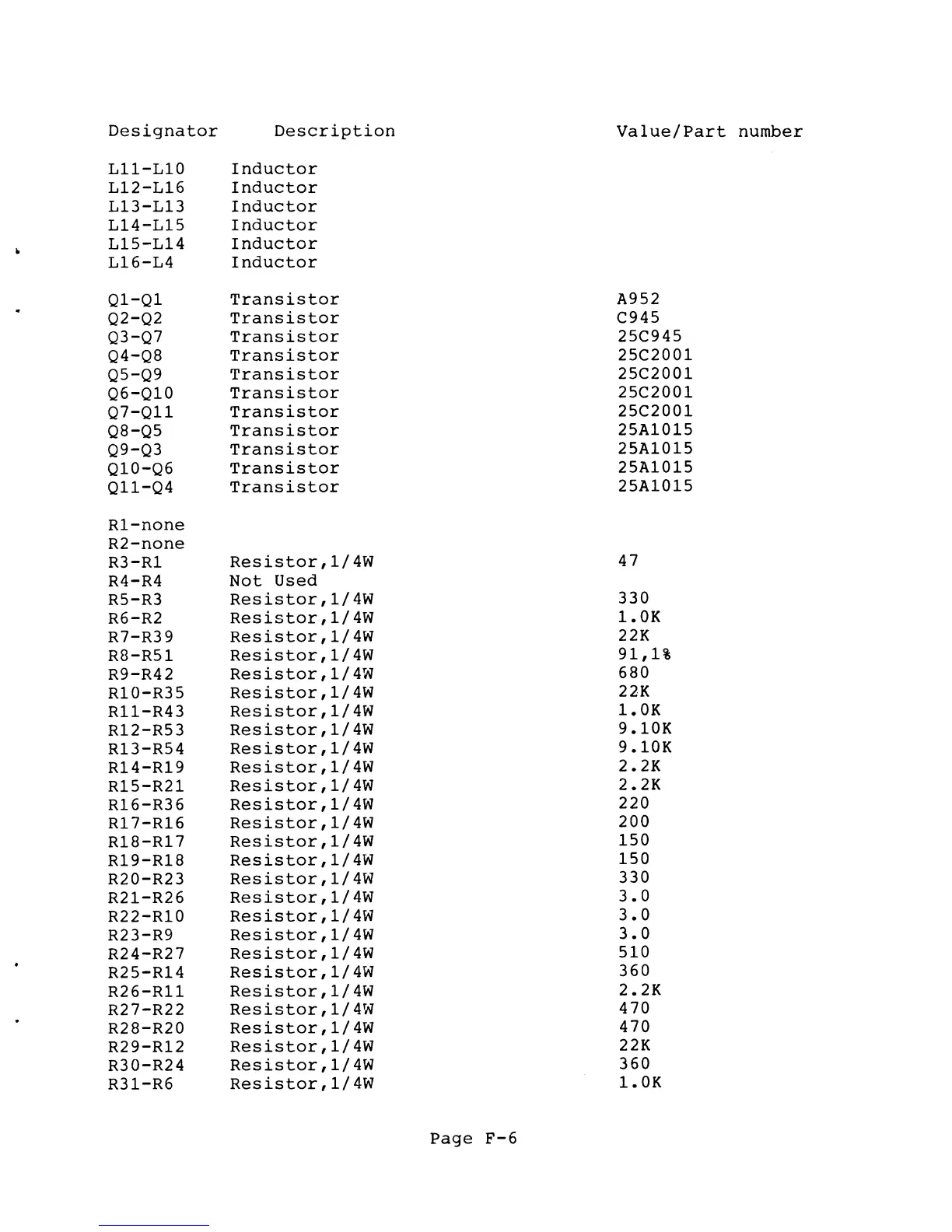

Designator Description
Value/Part number
Lll-LlO
Inductor
L12-L16
Inductor
Ll3-L13 Inductor
L14-L15 Inductor
L15-L14 Inductor
L16-L4 Inductor
Ql-Ql
Transistor
A952
Q2-Q2 Transistor
C945
Q3-Q7
Transistor
25C945
Q4-Q8 Transistor
25C2001
Q5-Q9
Transistor
25C2001
Q6-Q10
Transistor
25C2001
Q7-Qll
Transistor
25C2001
Q8-Q5
Transistor
25A1015
Q9-Q3
Transistor
25A1015
Q10-Q6
Transistor
25Al015
Qll-Q4
Transistor
25A1015
Rl-none
R2-none
R3-Rl
Resistor,l/4W
47
R4-R4
Not Used
R5-R3
Resistor,1/4W
330
R6-R2
Resistor,1/4W
LOK
R7-R39
Resistor,1/4W
22K
R8-R51
Resistor,1/4W
91,1%
R9-R42
Resistor,1/4W
680
R10-R35
Resistor,l/4W
22K
Rll-R43
Resistor,1/4W
LOK
R12-R53
Resistor,1/4W
9.10K
R13-R54
Resistor,1/4W
9.10K
R14-R19
Resistor,1/4W
2.2K
Rl5-R21
Resistor,1/4W
2.2K
R16-R36
Resistor,1/4W
220
Rl7-R16
Resistor,1/4W
200
R18-R17
Resistor,1/4W
150
R19-R18
Resistor,1/4W
150
R20-R23
Resistor,1/4W
330
R21-R26
Resistor,1/4W
3.0
R22-R10
Resistor,1/4W
3.0
R23-R9
Resistor,1/4W
3.0
R24-R27
Resistor,1/4W
510
R25-R14
Resistor,1/4W
360
R26-Rll
Resistor,l/4W
2.2K
R27-R22
Resistor,l/4W
470
R28-R20
Resistor,1/4W
470
R29-R12
Resistor,l/4W
22K
R30-R24
Resistor,l/4W
360
R31-R6
Resistor,1/4W
LOK
Page F-6
