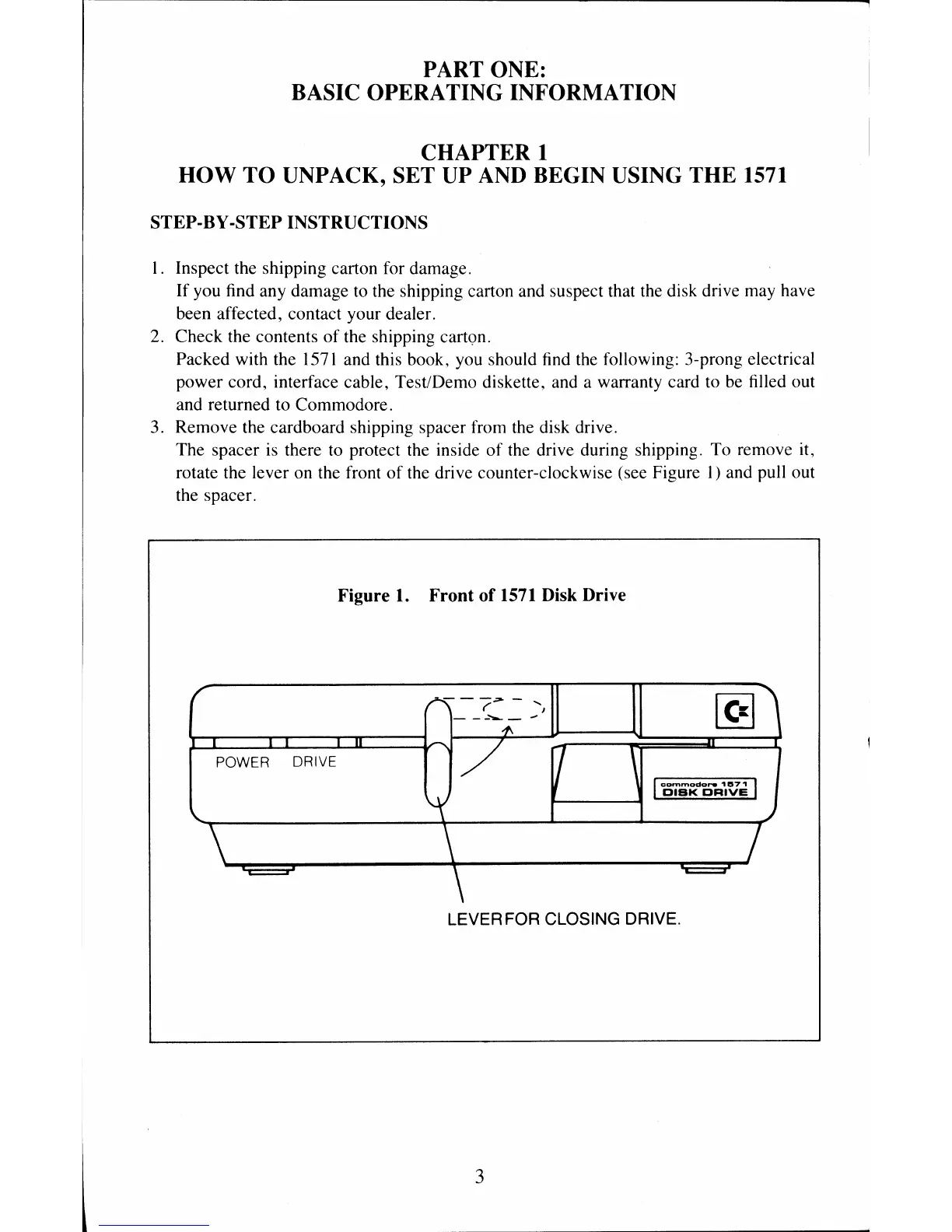

PART ONE:
BASIC OPERATING INFORMATION
CHAPTER 1
HOW TO UNPACK, SET UP AND BEGIN USING THE 1571
STEP-BY -STEP INSTRUCTIONS
I. Inspect the shipping carton for damage.
If you find any damage to the shipping carton and suspect that the disk drive may have
been affected, contact your dealer.
2. Check the contents
of
the shipping carton.
Packed with the
1571
and this book, you should find the following: 3-prong electrical
power cord, interface cable, Test/Demo diskette, and a warranty card to be filled out
and returned to Commodore.
3. Remove the cardboard shipping spacer from the disk drive.
The spacer is there
to
protect the inside
of
the drive during shipping. To remove it,
rotate the lever on the front
of
the drive counter-clockwise (see Figure I) and pull out
the spacer.
Figure L Front
of
1571
Disk Drive
POWER DRIVE
LEVER FOR CLOSING DRIVE.
3
