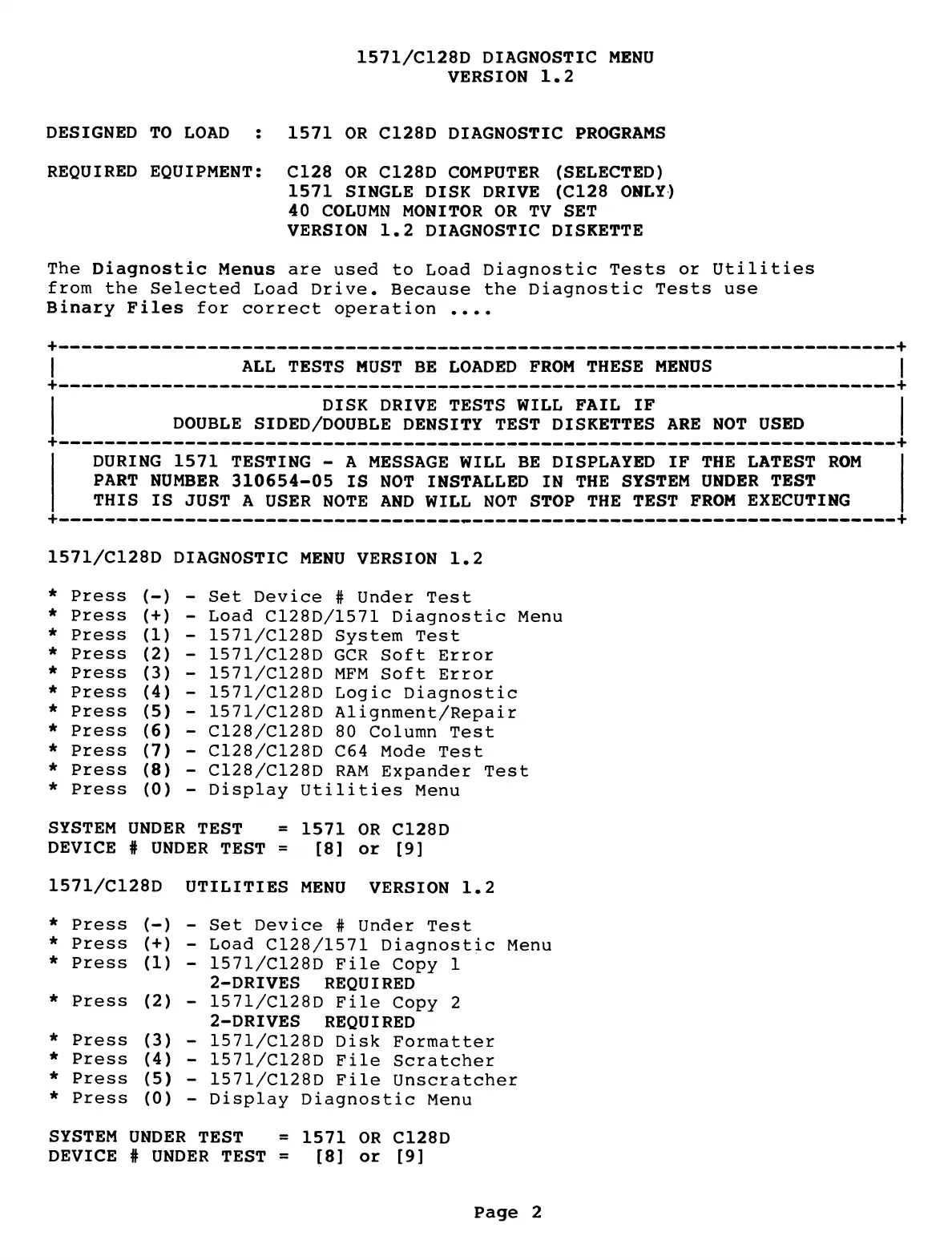

1571/C128D DIAGNOSTIC MENU
VERSION 1.2
REQUIRED EQUIPMENT: C128 OR C128D COMPUTER (SELECTED)
1571 SINGLE DISK DRIVE (C128 ONLY)
40 COLUMN MONITOR OR TV SET
VERSION 1.2 DIAGNOSTIC DISKETTE
The Diagnostic Menus are used to Load Diagnostic Tests or Utilities
from the Selected Load Drive. Because the Diagnostic Tests use
Binary Files for correct operation ....
DESIGNED TO LOAD : 1571 OR C128D DIAGNOSTIC PROGRAMS
+------------------------------------------------------------------------------------------------------------------- +
| ALL TESTS MUST BE LOADED FROM THESE MENUS |
■f----------------------------------------------------------------------------------------------------------------------------------------—
---------- — -----------------------------------------------^
DISK DRIVE TESTS WILL FAIL IF
DOUBLE SIDED/DOUBLE DENSITY TEST DISKETTES ARE NOT USED
+------------------------------------------------------------------------------ +
DURING 1571 TESTING - A MESSAGE WILL BE DISPLAYED IF THE LATEST ROM
PART NUMBER 310654-05 IS NOT INSTALLED IN THE SYSTEM UNDER TEST
THIS IS JUST A USER NOTE AND WILL NOT STOP THE TEST FROM EXECUTING
+
------------------------------------- -----------------------------------------+
1571/C128D
*
Press
(-)
*
Press
( + )
★
Press
(1)
★
Press
(2)
★
Press
(3)
★
Press
(4)
*
Press
(5)
★
Press
(6)
*
Press
(7)
*
Press
(8)
*
Press
(0)
DIAGNOSTIC MENU VERSION 1.2
- Set Device # Under Test
- Load C128D/1571 Diagnostic Menu
- 1571/C128D System Test
- 1571/C128D GCR Soft Error
- 1571/C128D MFM Soft Error
- 1571/C128D Logic Diagnostic
- 1571/C128D Alignment/Repair
- C128/C128D 80 Column Test
- C128/C128D C64 Mode Test
- C128/C128D RAM Expander Test
- Display Utilities Menu
SYSTEM UNDER TEST = 1571 OR C128D
DEVICE # UNDER TEST = [8] or [9]
1571/C128D UTILITIES MENU VERSION 1.2
*
Press
(-)
★
Press
( + )
*
Press
(1)
*
Press
(2)
★
Press
(3)
★
Press
(4)
*
Press
(5)
*
Press
(0)
Set Device # Under Test
Load C128/1571 Diagnostic Menu
1571/C128D File Copy 1
2-DRIVES REQUIRED
1571/C128D File Copy 2
2-DRIVES REQUIRED
1571/C128D Disk Formatter
1571/C128D File Scratcher
1571/C128D File Unscratcher
Display Diagnostic Menu
SYSTEM UNDER TEST = 1571 OR C128D
DEVICE # UNDER TEST = [8] or [9]
