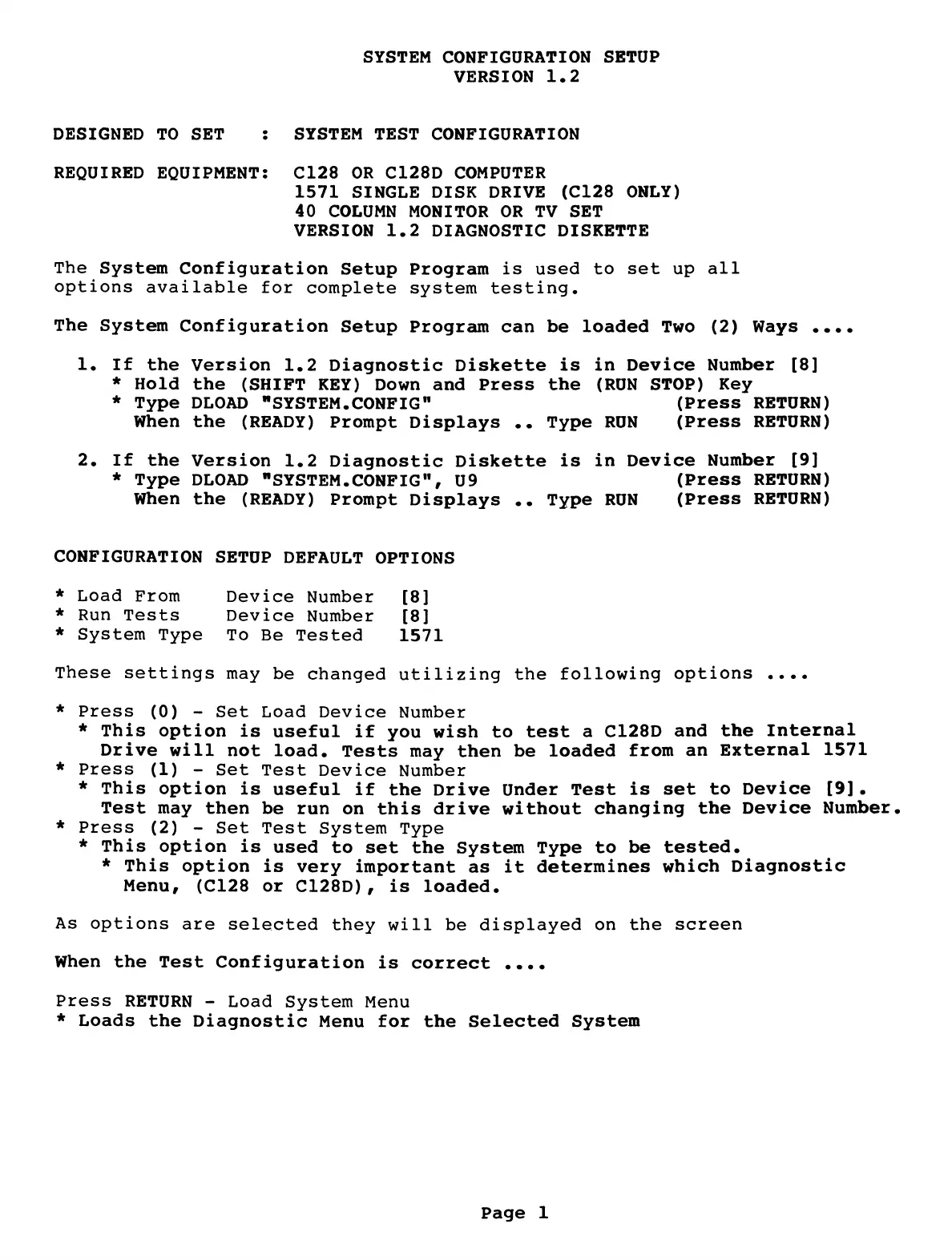

SYSTEM CONFIGURATION SETUP
VERSION 1.2
REQUIRED EQUIPMENT: C128 OR C128D COMPUTER
1571 SINGLE DISK DRIVE (C128 ONLY)
40 COLUMN MONITOR OR TV SET
VERSION 1.2 DIAGNOSTIC DISKETTE
The System Configuration Setup Program is used to set up all
options available for complete system testing.
The System Configuration Setup Program can be loaded Two (2) Ways ....
1. If the Version 1.2 Diagnostic Diskette is in Device Number [8]
* Hold the (SHIFT KEY) Down and Press the (RUN STOP) Key
* Type DLOAD "SYSTEM.CONFIG" (Press RETURN)
When the (READY) Prompt Displays .. Type RUN (Press RETURN)
2. If the Version 1.2 Diagnostic Diskette is in Device Number [9]
* Type DLOAD "SYSTEM.CONFIG", U9 (Press RETURN)
When the (READY) Prompt Displays .. Type RUN (Press RETURN)
DESIGNED TO SET : SYSTEM TEST CONFIGURATION
CONFIGURATION SETUP DEFAULT OPTIONS
* Load From Device Number [8]
* Run Tests Device Number [8]
* System Type To Be Tested 1571
These settings may be changed utilizing the following options ....
* Press (0) - Set Load Device Number
* This option is useful if you wish to test a C128D and the Internal
Drive will not load. Tests may then be loaded from an External 1571
* Press (1) - Set Test Device Number
* This option is useful if the Drive Under Test is set to Device [9].
Test may then be run on this drive without changing the Device Number.
* Press (2) - Set Test System Type
* This option is used to set the System Type to be tested.
* This option is very important as it determines which Diagnostic
Menu, (C128 or C128D), is loaded.
As options are selected they will be displayed on the screen
When the Test Configuration is correct ....
Press RETURN - Load System Menu
* Loads the Diagnostic Menu for the Selected System
Page 1
