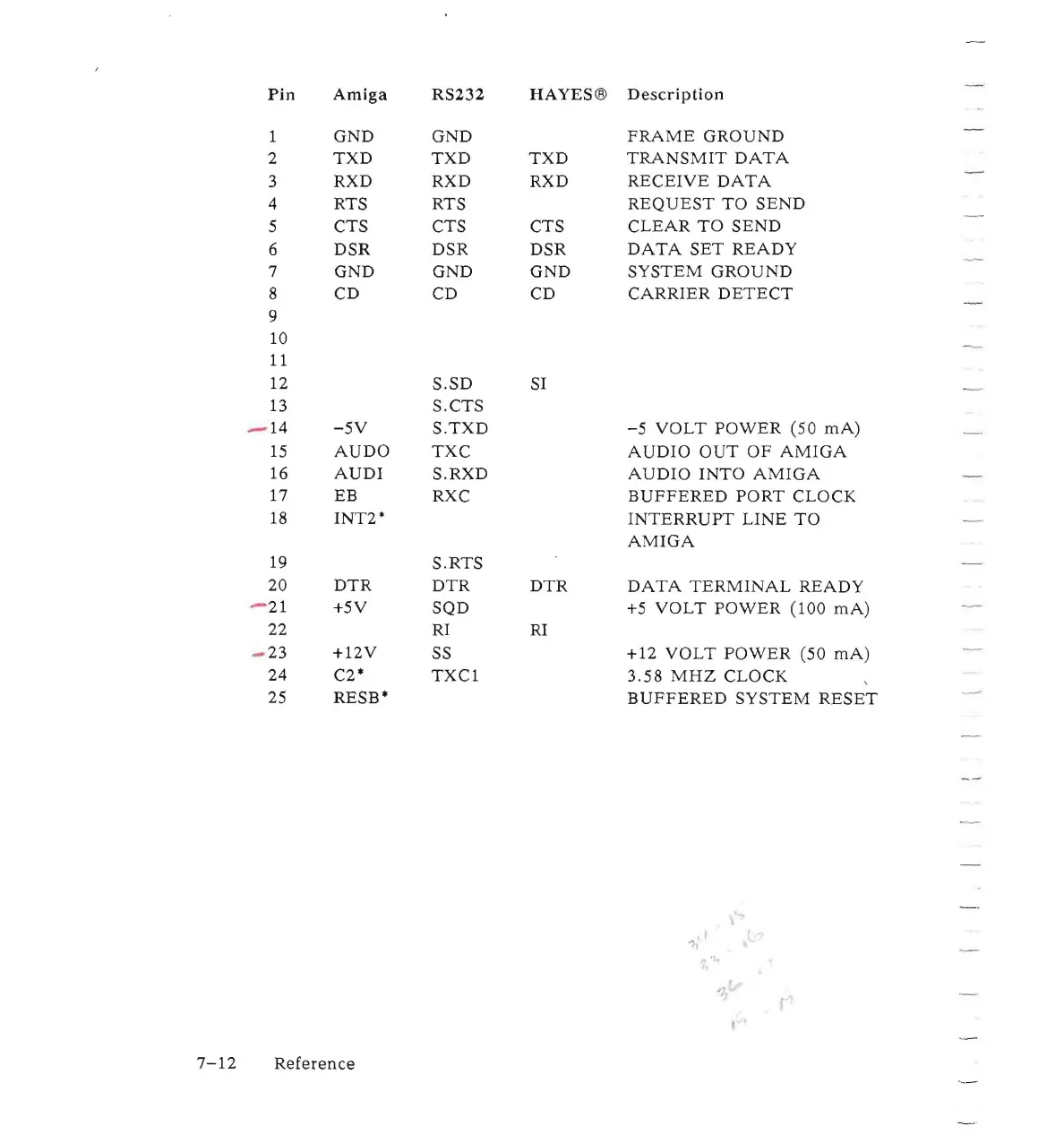

Pin
Arniga RS232 HAYES® Description
1 GND GND
FRAME GROUND
2
TXD TXD TXD TRANSMIT DATA
3
RXD
RXD RXD RECEIVE DATA
4 RTS RTS
REQUEST TO SEND
5
CTS CTS CTS
CLEAR TO SEND
6 DSR
DSR
DSR
DATA SET READY
7 GND GND GND
SYSTEM GROUND
8
CD CD CD
CARRIER DETECT
9
10
11
12
S.SD
SI
13
S.CTS
_ 14
-5V
S.TXD -5 VOLT POWER (50 rnA)
15
AUDO TXC AUDIO OUT OF AMIGA
16
AUDI S.RXD
AUDIO INTO AMIGA
17 EB
RXC
BUFFERED PORT CLOCK
18
INT2*
INTERRUPT LINE TO
AMIGA
19
S.RTS
20 DTR
DTR
DTR
DATA TERMINAL READY
- 21
+5V SQD
+5 VOLT POWER (100 rnA)
22
RI
RI
-
23
+12V
SS +12 VOLT POWER (50 rnA)
24
C2*
TXC1
3.58 MHZ CLOCK
25
RESB*
BUFFERED SYSTEM RESET
" .
,'
7-12 Reference
