SOLAR PUMPING INVERTER I USER MANUAL
33

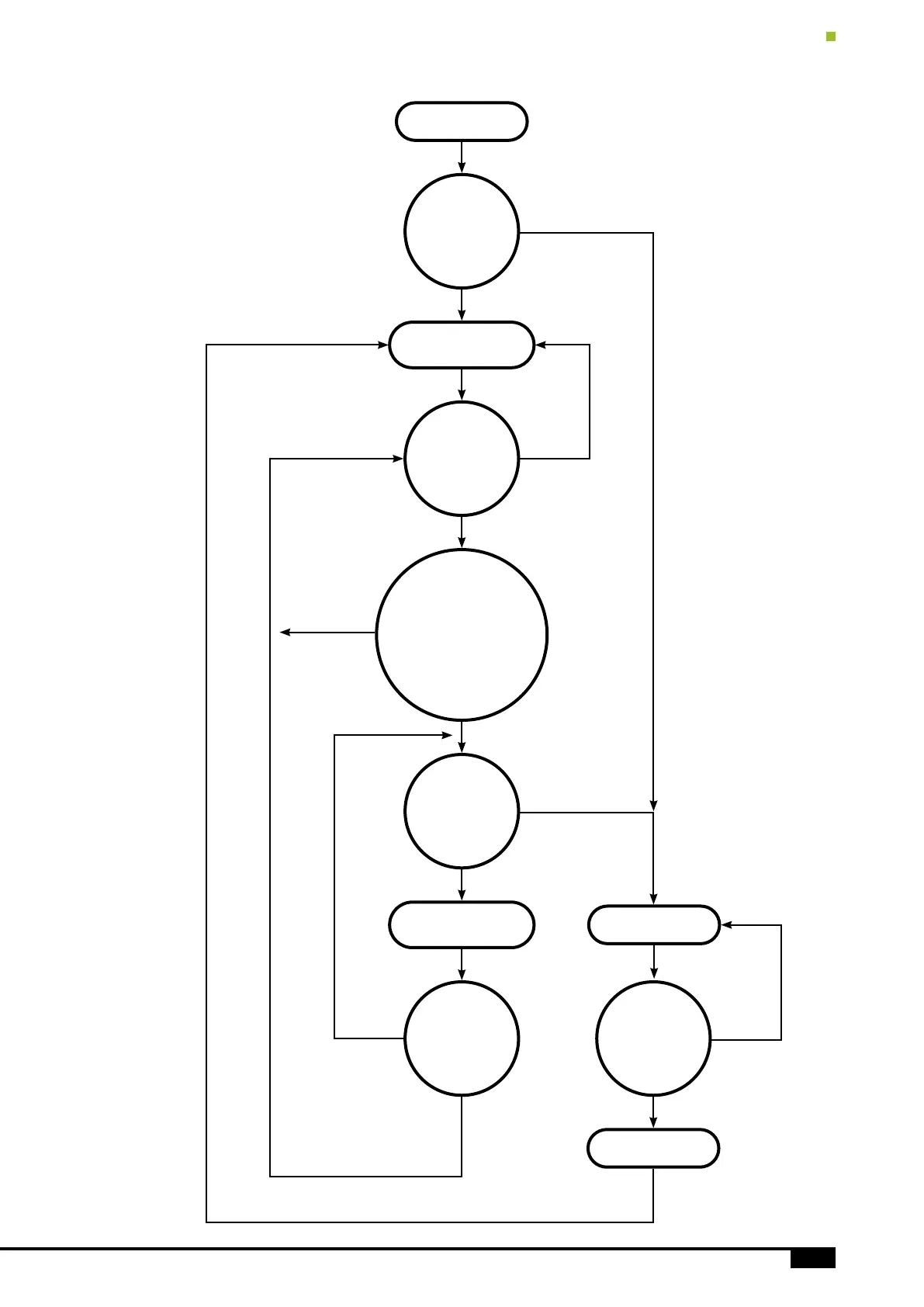

Inverter running
with Solar Power
Power On
Solar Valid
AC output
Frequency
<=25hz?
AC output
frequency below
minimum value,
Continue Time
Count > 20 seconds
Standby, inverter
stop running
AC Input Valid?
Standby Time
Count >20
minutes?
Hybrid Mode Run
Solar power
enough for 25hz
ac output?
Exit Hybrid Mode
NO
NO
YES
YES
NO
YES
NO
YES
NONO
YES YES
