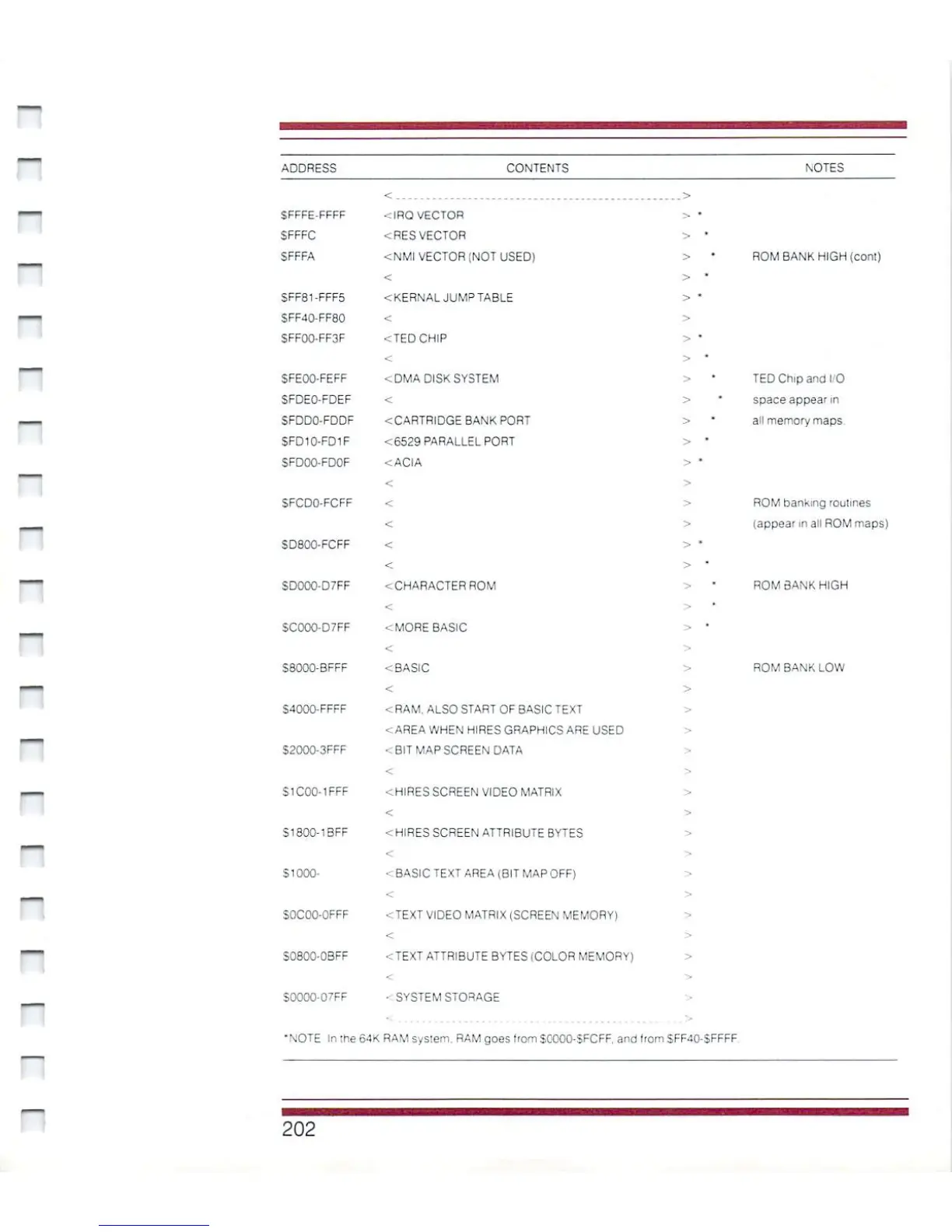

Commodore Plus 4 - Page 211

n
n
SFFFE-FFFF
SFFFC
SFFFA
SFF81-FFF5
SFF40-FFSO
SFFO0-FF3F
SFEOO-FEFF
SFDEO-FDEF
SFDDO-FDDF
SFD10-FD1F
SFDOO-FDOF
-IRQ VECTOR
<RES VECTOR
<NMI VECTOR (NOT USED)
<KERNALJUMP TABLE
-'TED CHIP
<DMA DISK SYSTEM
<
<CARTR!DGE BANK PORT
<6529 PARALLEL POFIT
■--.ACIA
ROM BANK HIGH (com]
SFCDO-FCFF <
SD800-FCFF < > *
SDOOO-D7FF CHARACTER ROM > •
SCOOO-D7FF < MORE BASIC > '
S8OO0-BFFF < BASIC
S4000-FFFF c RAM ALSO START OF BASIC TEXT
■ AREA WHEN HIRES GRAPHICS ARE USED
S2OOO-3FFF ■: BIT MAP SCF1EEN DATA
S1CO0-1FFF <HIRES SCREEN VIDEO MATRIX
11800-1BFF « HIRES SCREEN ATTRIBUTE BYTES
S10OO- - BASIC TEXT AREA (BIT MAP OFF)
SOCOO-OFFF < TEXT VIDEO MATRIX (SCREEN MEMORY)
S08O0-0BFF < TEXT ATTRIBUTE BYTES (COLOR MEMORY)
SOOOO-CFFF • SYSTEM STORAGE
■NOTE In the 64K RAM system. RAM goes Irom SODOO-SFCFF, and IrornSFFdO-SFFFF
TEDCnipandL'O
space appear in
ad memoiy maps
ROM Banking routines
(appeal in an ROM maps)
ROM SANK HIGH
ROM BANK LOW
