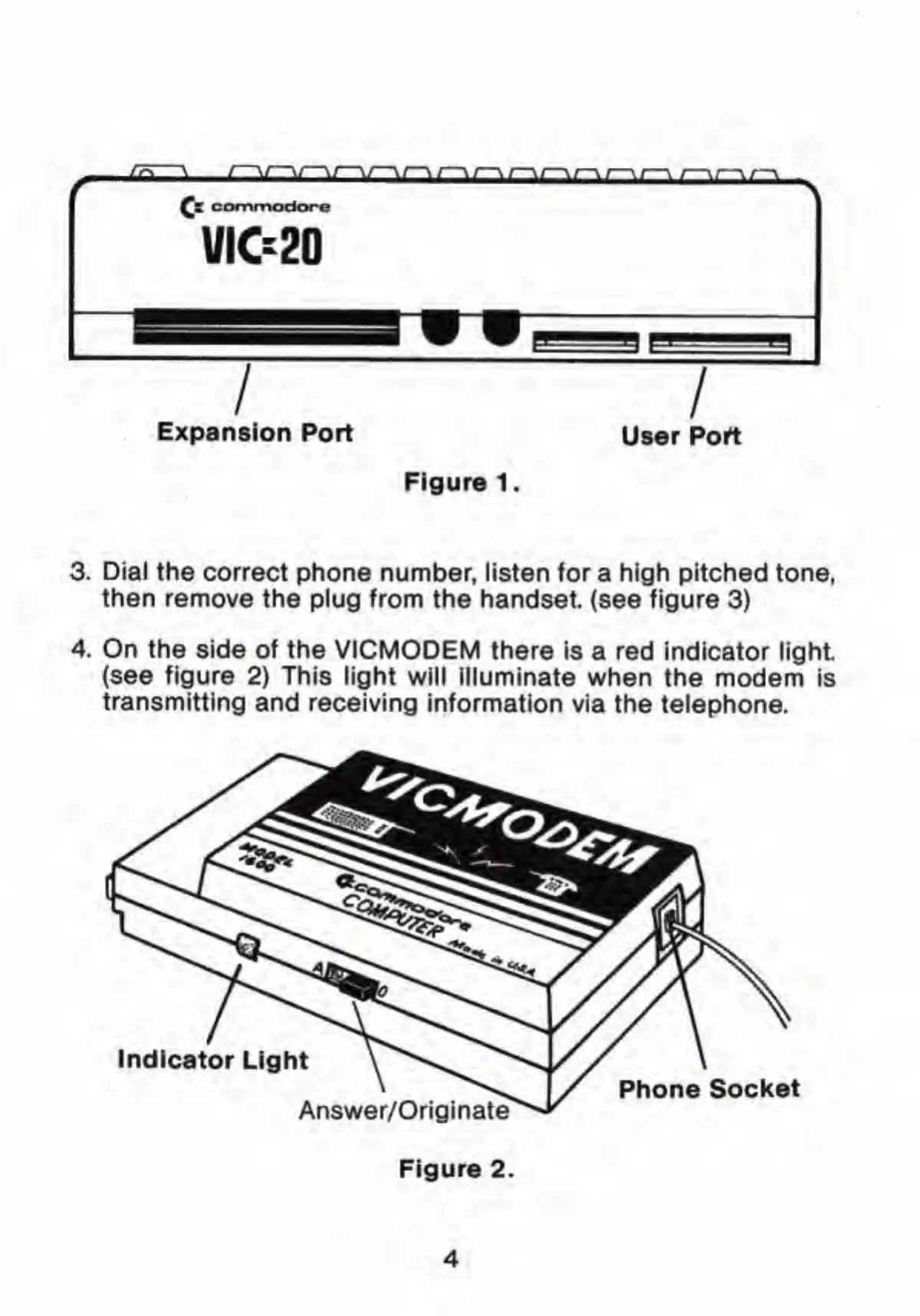

Commodore VICMODEM VIC-20 - Page 6

fI
commodore
UIO20
Expansion
Port
User Port
Figure 1.
3. Dial the correct phone
number,
listen
for a high
pitched tone,
then remove the plug
from the handset, (see figure
3)
4. On the side
of the VICMODEM there
is a red indicator light
(see figure
2)
This light will illuminate
when the modem is
transmitting
and receiving
information via the telephone.
Indicator
Light
Answer/Originate'
Phone
Socket
Figure 2
