Note: slide the base over all the cables! In case of looped cable:
remove the outer jacket first (4.1).
4 Cable preparation
2
2 General

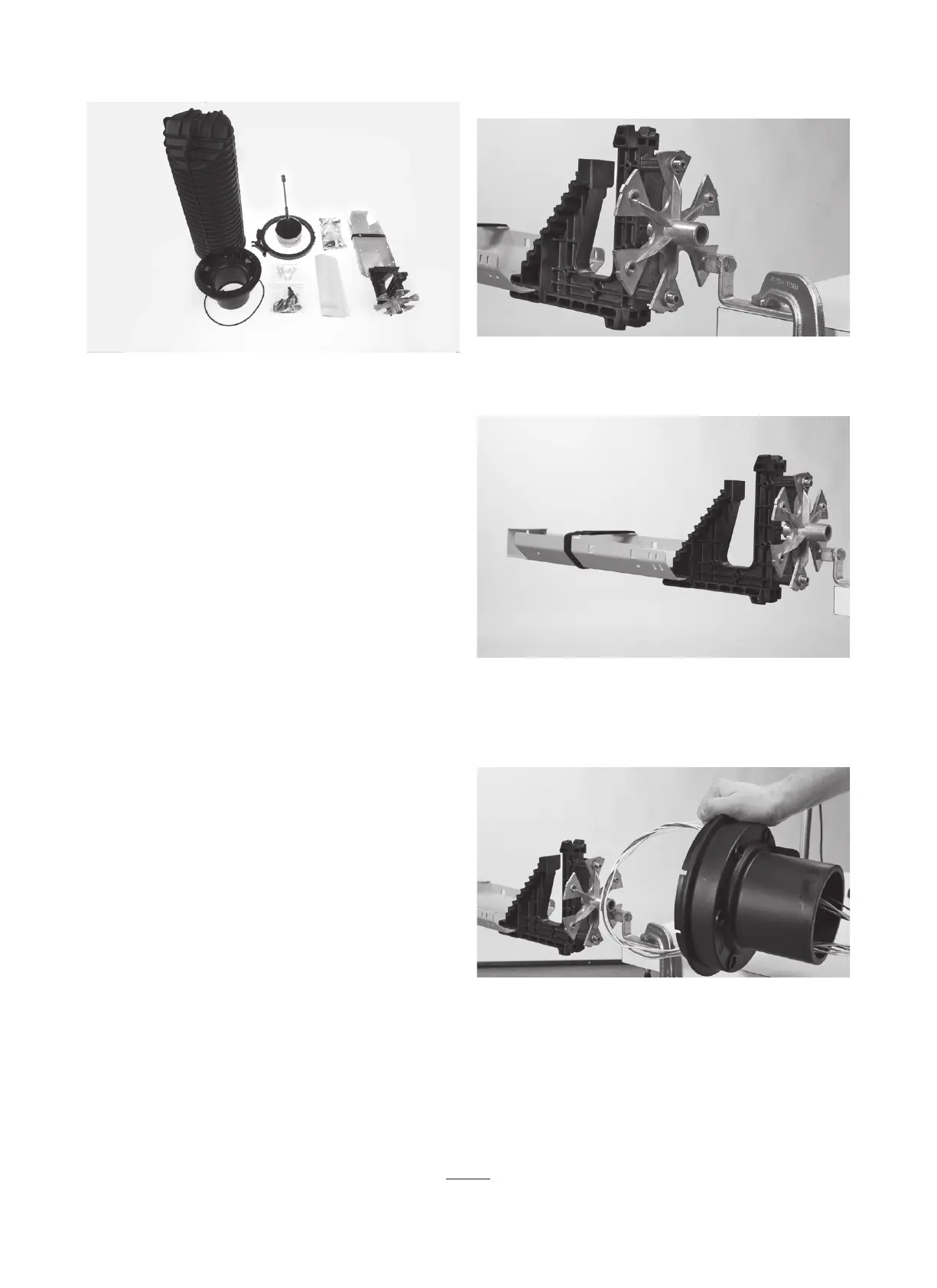

2.1 Kit content 3.1 Open the clamp and remove the dome.
3 Preparation of the closure
• Dome
• Base O-ring system
• Cable attachment plate with tower
• Gel block with trigger
• Clamp
• 2 cable retention devices
• 4 plugs for unused ports
• Silicagel
• Installation instruction
• Spacer
2.2 Tools
FACC-TUBE-STRIPPER-03 to strip loose tube
2.3 Accessories
Cable termination kit See ordering guide
FOSC-D tray 36, 48, 72 or 96
FOSC-D tray Ribbon 24
FOSC-450-MULTI-4/7
2.4 Capacity
Single tray: max. 6 with basket
Ribbon tray: max. 3 with basket
3.2 Position and secure the closure tower properly to the work
station.
3.3 Cable entrance positions.
Looped cable only entrance ports 5 and 6.
1
5
34
2
6
