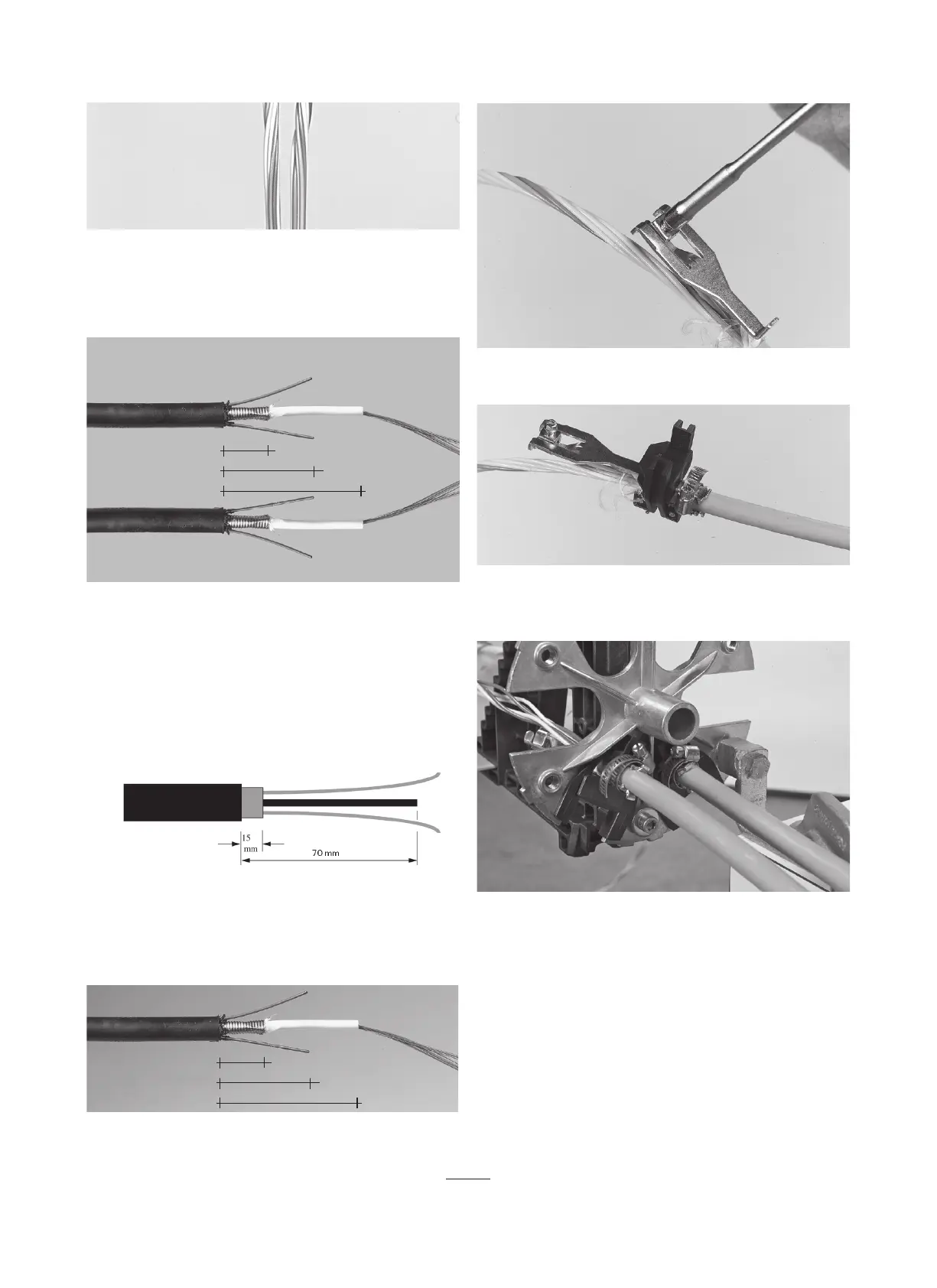

4.1 Looped cable
Loose tube cable
4.2 Drop cable
Loose tube cable
3
4.1.2 Make a window cut of 4.2 m, cut away the strength member
at a distance of 65 mm from the outer jacket. Cut the inner jacket at
100 mm from the outer jacket. For looped cable install the cables in
ports 5 and 6 for proper routing to the tray.
Central core cable
4.1.1 Make a window cut of 3.5 m. Cut the strength member at a
distance of 70 mm.
30 mm
65 mm
100 mm
Central core cable
4.2.2 Remove the jacket over a length of 1.4 m, cut the strength
members at a distance of 65 mm from the outer jacket. Cut the inner
jacket at 100 mm from the outer jacket.
4.2.1 Remove the jacket over a length of 1.4 m, cut the strength
member at a distance of 70 mm from the outer jacket.
30 mm
65 mm
100 mm
5 Cable termination
Loose tube cable
5.1 Install the strength member termination plate.
5.2 Install the cable retention device on the cable, tighten the hose
clamp.
5.3 Slide the cable retention device in the cable termination plate.
