COMPANION COMP490 - Page 8

8

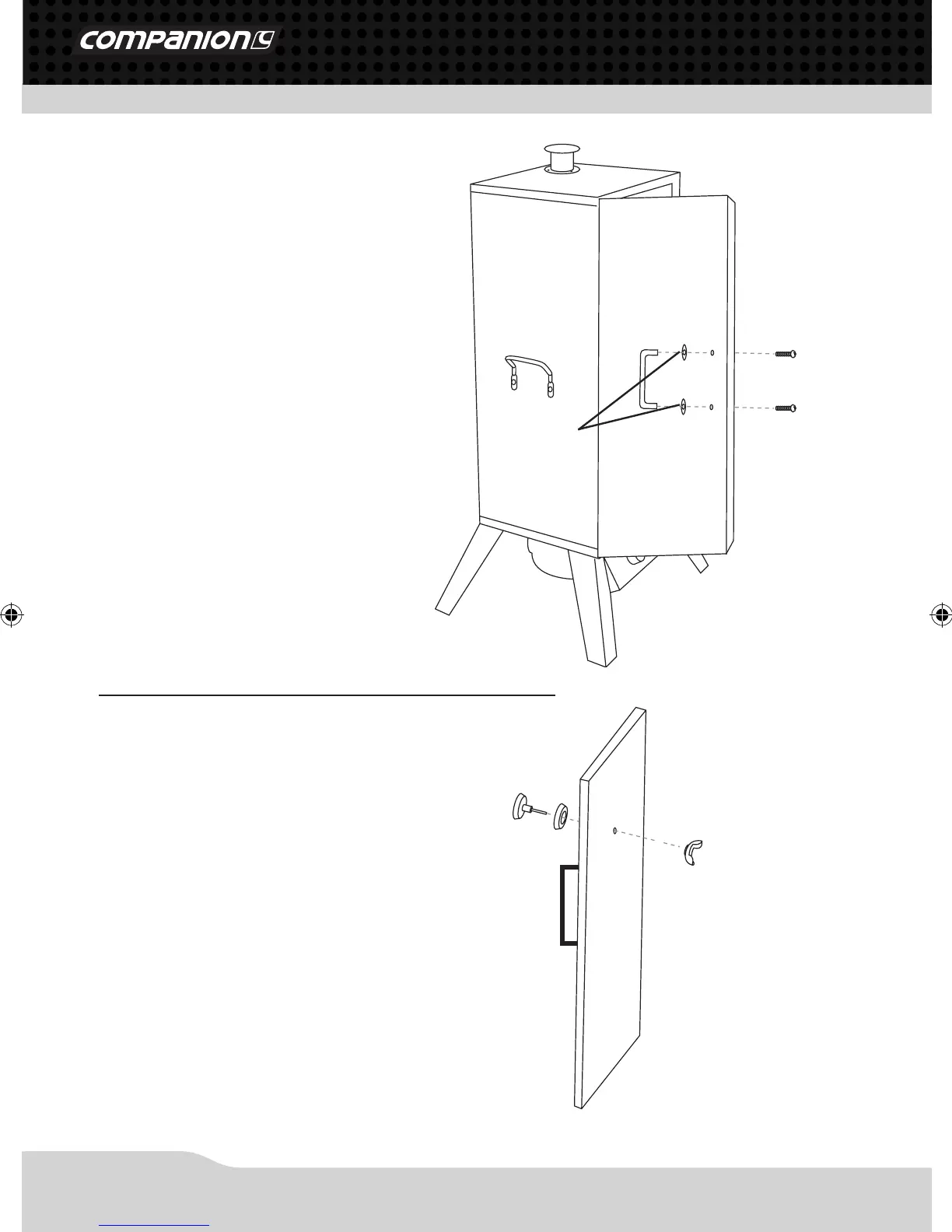

Step 13
Mountthedoorhandlewithtwo
M4x25mmboltsandtwoheat
resistantwashers.Inserteach
boltthroughthedoorfromthe
inside.Fromtheoutsideplacea
heatresistantwasherovereach
bolt.Thenthreadtheboltsintothe
handle.Tighteneachboltsecurely.
Step 14
Insertthetemperaturegaugewith
bezelthroughthemountingholein
thefrontofthedoor.Placeawing
nutontothetemperaturegauge
stemfromtheinsideofthedoor
panelandtightenitrmly.
Heat Resistant
Washers
