Compaq.com - Compaq Presario 1200 Series Maintenance and Service Guide - Models: 1255, 1256, 1260, 1262, 1266, 1267, 1272, 1273, 1274, and 1275
Return to the top.

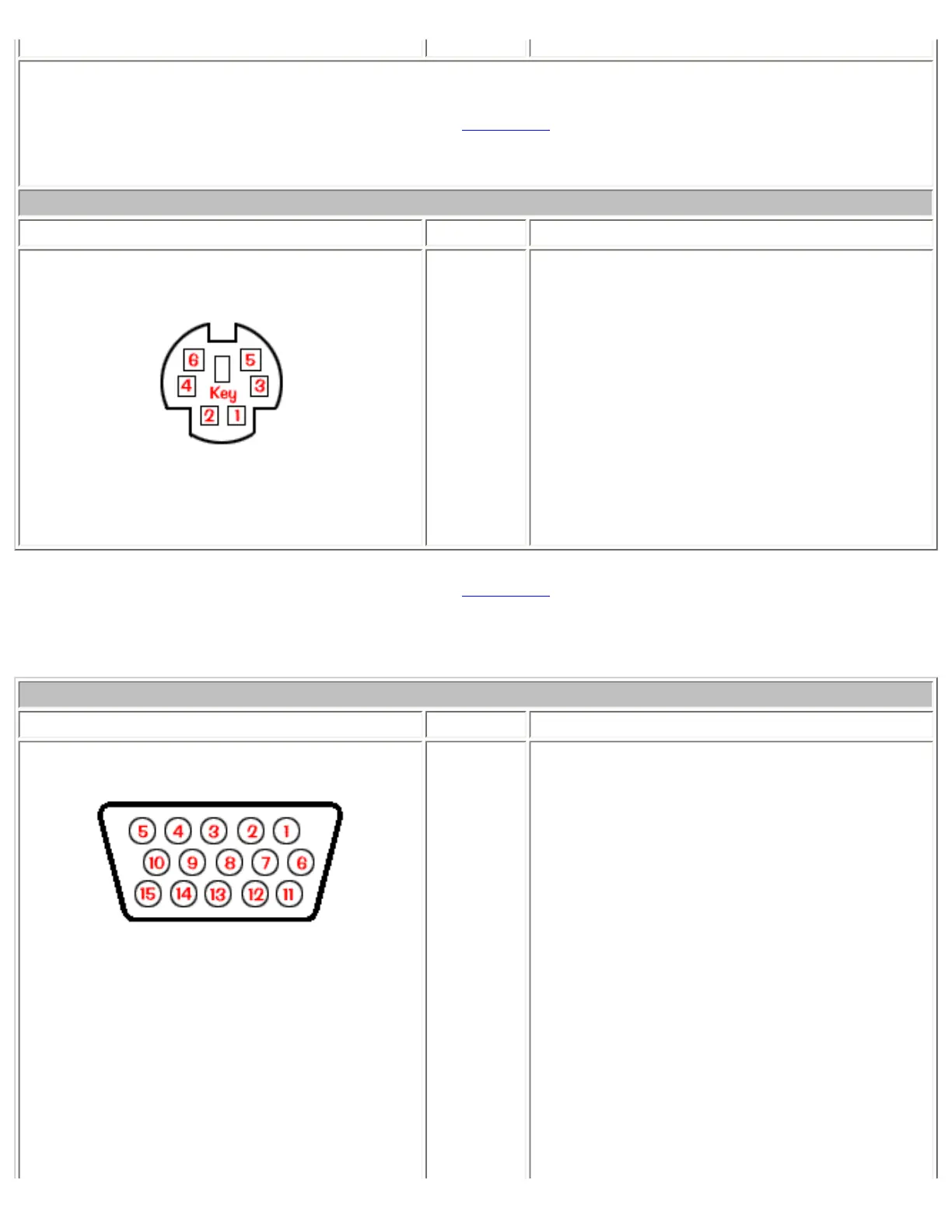

Keyboard/Mouse
Connector Pin Signal
1
2
3
4
5
6
Data 1
Data 2
Ground
+5 V
Clock 1
Clock 2
Return to the top.
External VGA Monitor
Connector Pin Signal
1
2
3
4
5
6
7
8
9
Red Analog
Green Analog
Blue Analog
Not connected
Ground
Ground Analog
Ground Analog
Ground Analog
Not connected
