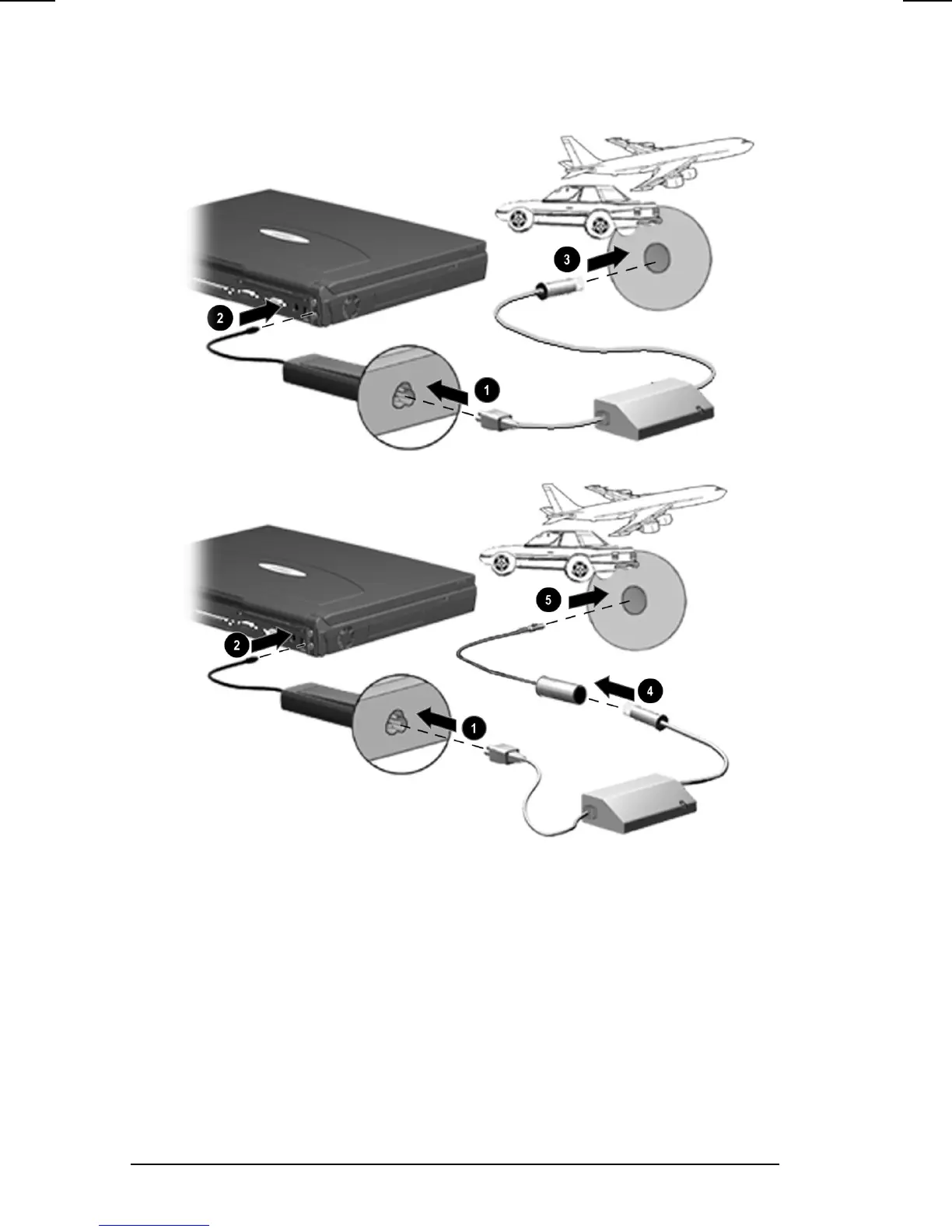

Connecting to the Optional Automobile/Aircraft Adapter
1. Connect the Automobile/Aircraft Adapter cable to the AC
Adapter 1.
2. Plug the AC Adapter into the rear of the computer 2.
3. Connect the cigarette lighter plug to the automobile cigarette
lighter receptacle or to the 1-pin aircraft receptacle 3.
or
