Removable Drives 6-11
COMPAQ CONFIDENTIAL - NEED TO KNOW REQUIRED
Writer: Jennifer Hale Saved by: Jennifer Hale Saved date: 10/07/98 2:03 PM
Part Number: 387792-001 File name: ch06.doc
Working with Compact Discs and DVD-ROMs
Inserting a Compact Disc or DVD-ROM into the CD-ROM or
DVD-ROM Drive
1. Turn on the computer.

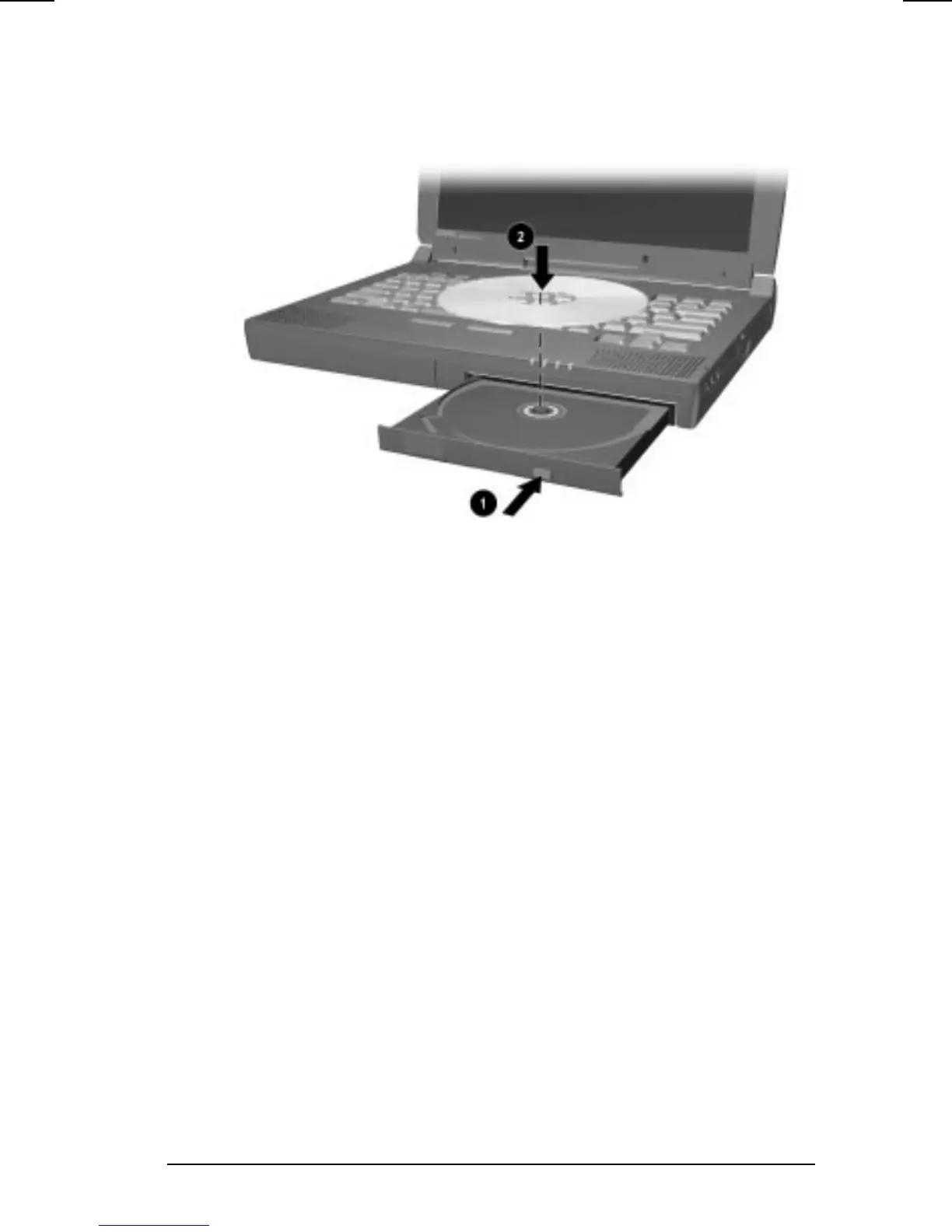

2. Press the eject button on the front panel 1 to release the
loading tray.
3. Slowly pull out the tray until it is fully extended.
4. Remove the disc from its protective case and place it in the
tray, label side up 2. Handle the disc by the edges, not by the
flat surfaces
5. Push lightly on the front panel of the loading tray to
close it.
The drive performs a diagnostic check and automatically begins
reading the table of contents (TOC) on the disc. The light on the
drive turns on while the TOC is being read. The light turns off
when the drive is ready to receive commands.
