Removal and replacement procedures
Maintenance and Service Guide 4–27

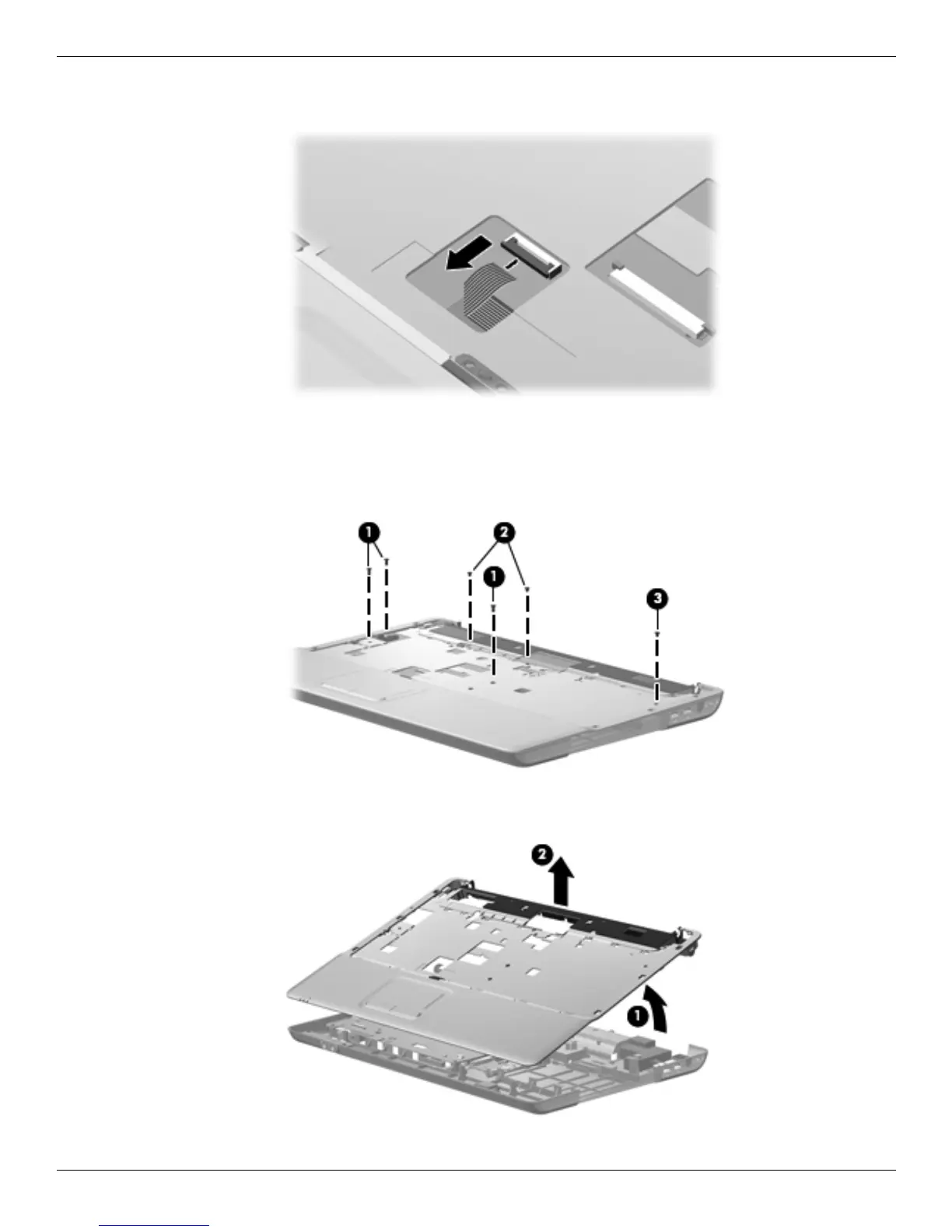

5. Release the ZIF connector to which the TouchPad cable is attached, and disconnect the TouchPad cable from
the system board.
6. Remove the following screws:
a. Three Phillips PM2.5x9.0 screws 1
b. Two Phillips PM2.5x5.0 screws 2
c. One Phillips PM2.0x6.0 screw 3
7. Lift the rear edge of the top cover 1 until the top cover disengages from the base enclosure.
8. Remove the top cover 2.
Reverse this procedure to install the top cover.
