Removal and replacement procedures
Maintenance and Service Guide 4ā41
ā

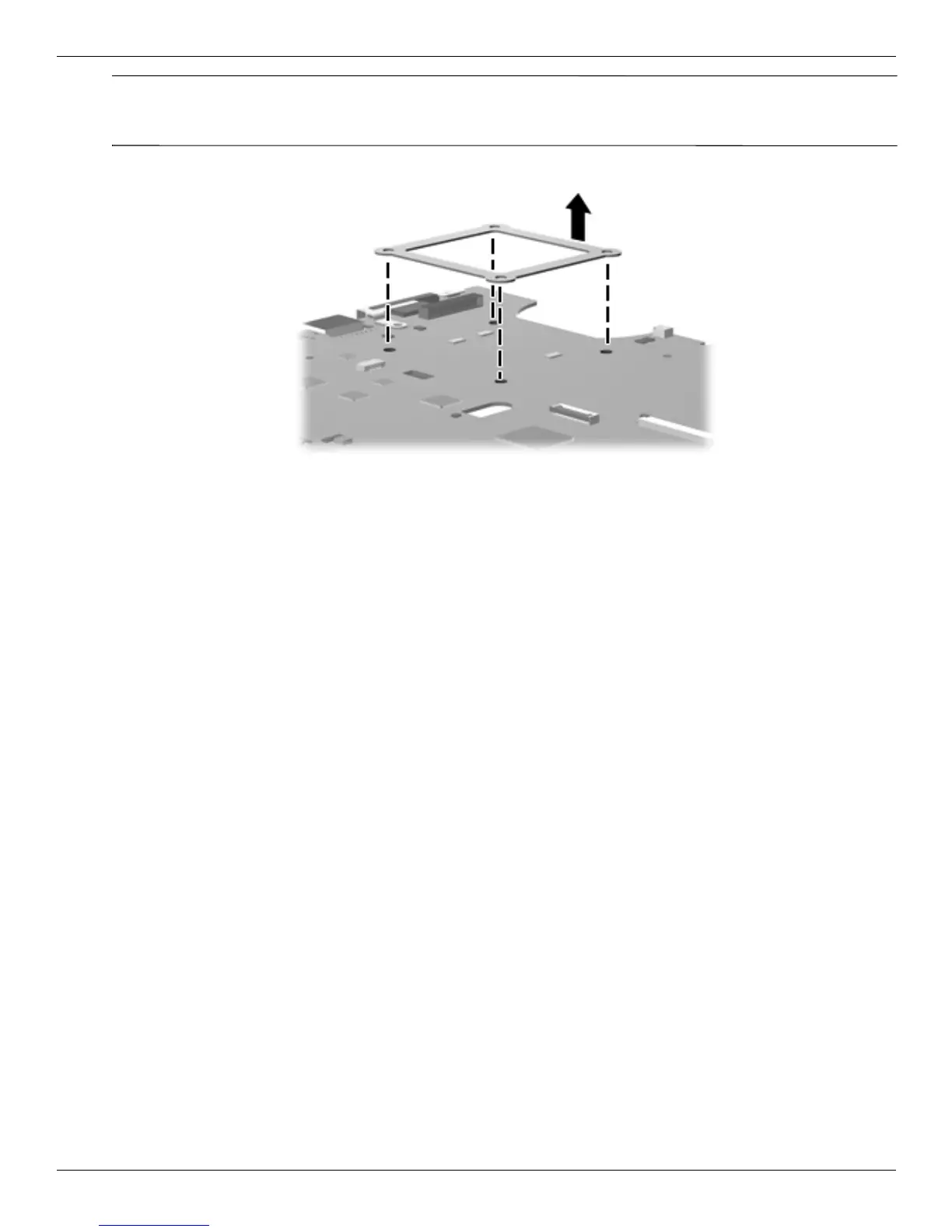

The fan/heatsink assembly mounting bracket must be replaced as shown in the following illustration when
installing the fan/heatsink assembly. The bracket is mounted on the opposite side of the system board, with the
triangle locator symbols pointing toward the fan.
The fan/heatsink assembly mounting bracket is included in spare part number 489126-001.
Reverse this procedure to install the fan/heat sink assembly.
