Compaq MV-920 User Manual

5 Troubleshooting
PG17**/PG19**/PG21** 5-3

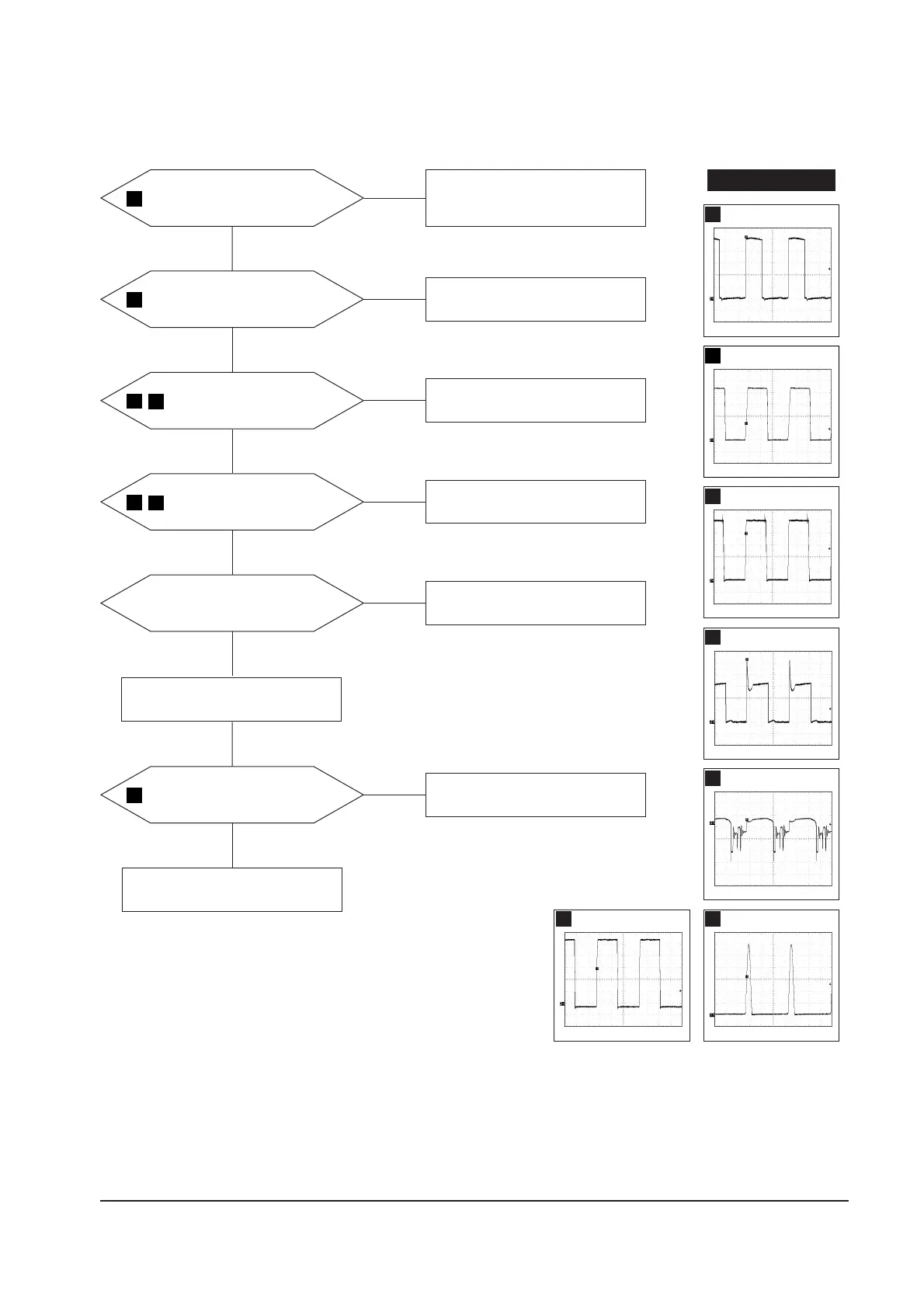

5-1-3 H_Deflection Failure
IC402 Pin 6 waveform is right?
Q403 source waveform
is right?
Check D407, D408, Q403, R436
and R438, +210 V line.
Yes
Yes
No
1. Check R401, +12 V line.
2. Check IC402 Pins 6~5, 7~6.
3. Replace IC402.
No
Q404 gate, drain
waveforms are right?
Check Q404, R415.
Check +25 V line.
Yes
No
Q405 base, collector
waveforms are right?
Check and replace D410 and Q405.
Check DY connector connection.
Yes
No
IC261 Pin 4 is high?
Replace IC261.
Check some parts around
Q261 and Q262.
Yes
No
IC261 Pin 26 waveform
is right?
Check some parts around IC261.
Yes
No
WAVEFORMS
2
3
4
5
6
8
7
3
230 V (Q405, Source)
CH1 P-P = 230 V CH1 RMS = 150.1 V
8
12.08 V (IC261, #26)
CH1 P-P = 12.08 V CH1 RMS = 7.396 V
2
10.96 V (IC402, #6)
CH1 P-P = 10.96 V CH1 RMS = 6.180 V
5
54 V (Q404, Drain)
CH1 P-P = 54 V CH1 RMS = 22.44 V
4
11.6 V (Q404, Gate)
CH1 P-P = 11.6 V CH1 RMS = 6.944 V
6
18.6 V (Q405, Base)
CH1 P-P = 55.2 V CH1 RMS = 9.52 V
7
1.216 kV (Q405, Collector)
CH1 P-P = 1.216 kV CH1 RMS = 316 V
Check some parts around Q263.
