6

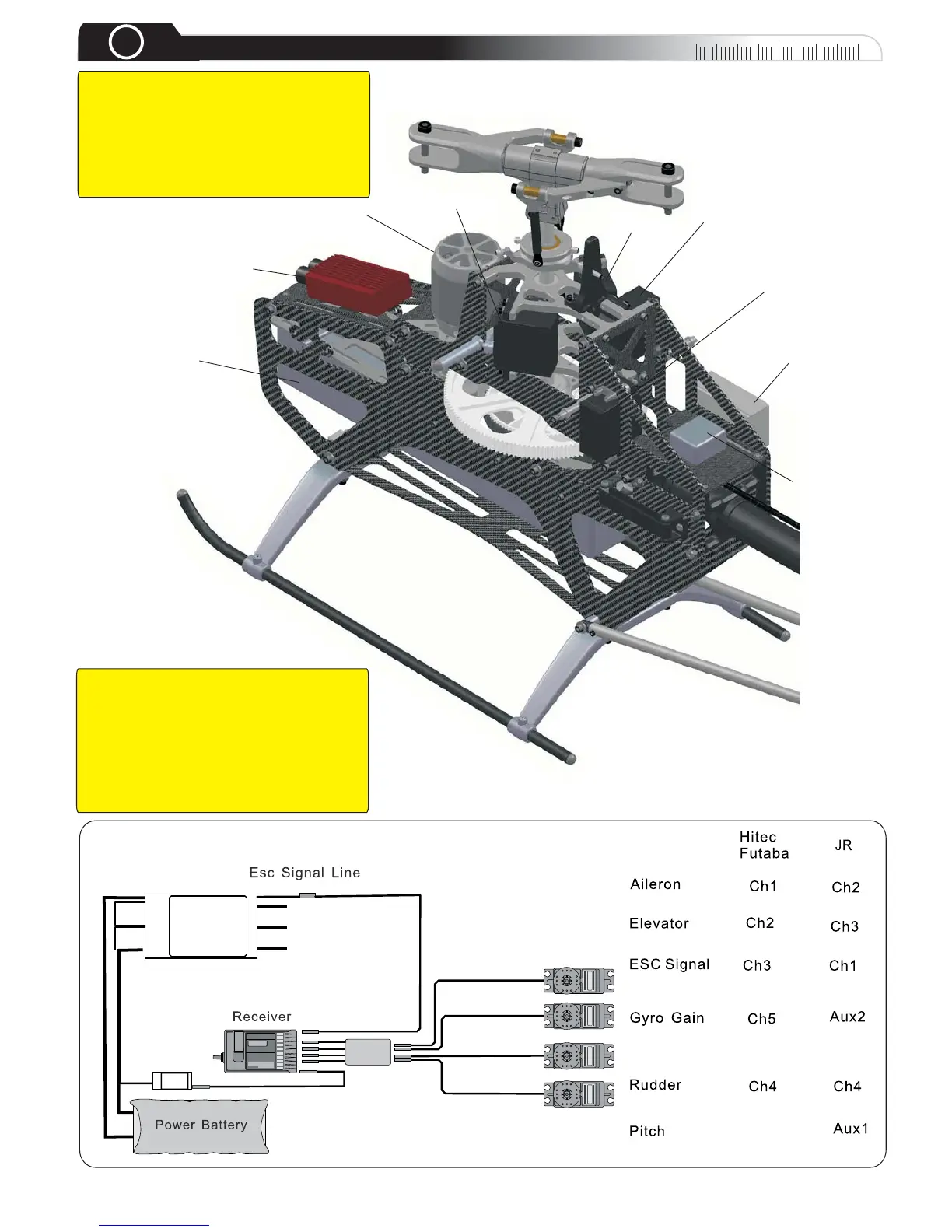

Suggested Equipment Position
Ch6
Esc
Pitch
Receiver
12S Battery
Aileron
Elevator
Rudder
Brushless Motor
FBL Unit
Please read the manual of your
FBL-Unit, transmitter and
receiver very attentively. Each
FBL-Unit is different, follow the
manuals step by step and ask for
help if you have problems with the
programming and installation.
ESC
To Mo tor
BEC
FBL
Take some time for the wiring.
Good fixing of the components
and wires is important for a safe
operation of your rc-equipment.
Read the following wiring tips
carefully.
To Next Page
